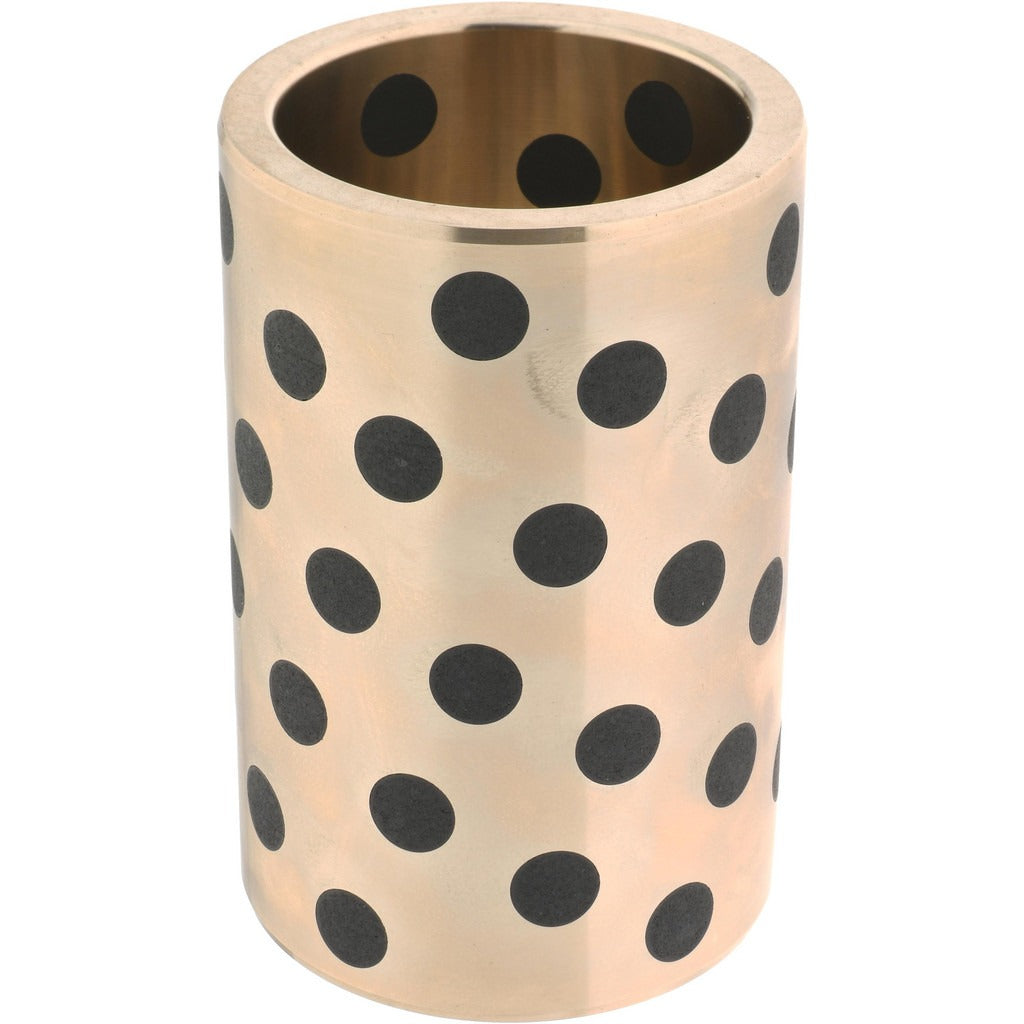

Gibraltar STBGP-5508 Die Mold Straight Bushing Steel

Product Description

The GIBRALTAR STBGP-5508 is a straight-style die mold bushing machined from steel for use in tooling, mold, and die applications. It features a 2.005 inch inside diameter and a 2.5005 inch body diameter, providing precise bore alignment in press-fit installations. The self-lubricating construction reduces maintenance requirements in continuous production environments. With a body length of approximately 2.01 inches and an overall height of 3.88 inches, this bushing is sized for medium-to-heavy duty mold bases. Installation is handled by tooling technicians, machinists, and mold maintenance professionals in manufacturing and fabrication settings.

This bushing is suited for die sets, injection mold bases, and stamping tool assemblies where accurate guide pin alignment is critical. The press-fit attachment method ensures the bushing stays seated under repetitive cycling loads. Self-lubricating steel construction supports high-cycle tooling where frequent relubrication is impractical. It is typically installed in production tooling maintained by skilled die setters or mold technicians in industrial manufacturing facilities.

Key Features

• 2.005 inch inside diameter for precise guide pin fitment
• 2.5005 inch body diameter sized for standard mold base bores
• Press-fit attachment method for secure, no-fastener installation
• Self-lubricating steel construction reduces ongoing maintenance
• Straight bushing style for straightforward bore alignment applications
• Sold as single unit with a minimum order quantity of 1

Compatibility

Designed as an OEM-style replacement straight bushing for standard die sets and mold bases requiring a 2.005 inch inside diameter press-fit guide bushing.

Installation Notes

Installation is performed by qualified tooling or mold maintenance technicians. The mold or die set must be fully de-energized, depressurized, and safely supported before any bushing removal or installation work begins. A hydraulic or arbor press is the appropriate tool for seating a press-fit bushing to the correct depth without damaging the bore or bushing face. Do not drive the bushing in with a hammer, as this can crack the steel or distort the bore.
