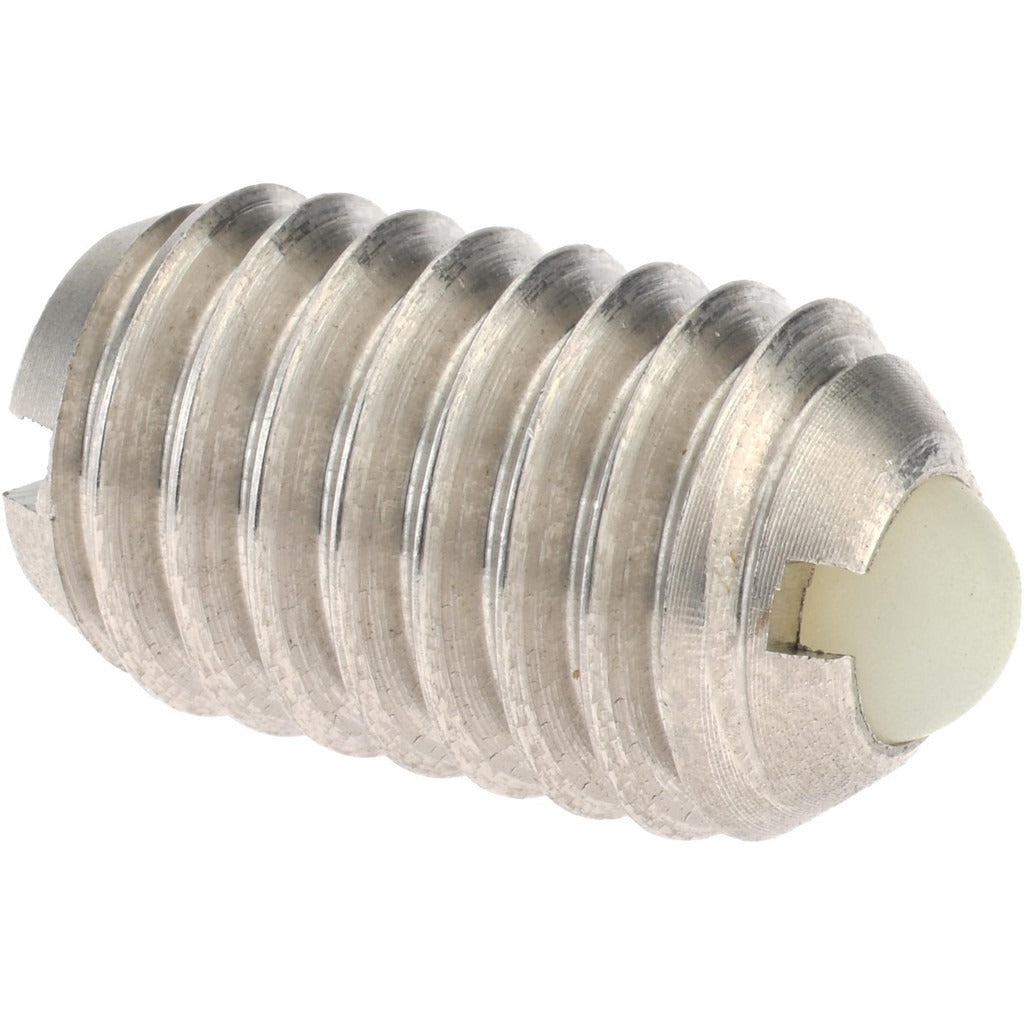

Gibraltar SSWN10-6BL-G Threaded Ball Plunger 3/8-16

Product Description

The GIBRALTAR SSWN10-6BL-G is a threaded ball plunger designed for use in positioning, indexing, and light-duty detent applications across a wide range of mechanical assemblies. It features a stainless steel body paired with a nylon ball measuring 0.188 inches in diameter, with a body length of 0.625 inches and a maximum ball reach of 0.048 inches. The 3/8-16 thread size allows for straightforward installation into standard threaded holes. Initial end force is 2.5 pounds, with a final end force of 5 pounds, making it suitable for applications requiring controlled, repeatable positioning with light spring-loaded resistance. Machinists, maintenance technicians, and tooling specialists are the typical installers.

This ball plunger is used in machine tooling, fixtures, jigs, and general mechanical assemblies where repeatable detent or positioning action is needed. The nylon ball reduces the risk of marring mating surfaces, making it appropriate for use against softer or finished materials. The stainless steel body provides corrosion resistance for use in light washdown or moisture-exposed environments. It is suitable for both production and maintenance applications in industrial, manufacturing, and toolroom settings.

Key Features

• 3/8-16 thread for installation into standard threaded bores
• Nylon ball minimizes surface damage on mating components
• Stainless steel body offers corrosion resistance
• 2.5 pound initial end force and 5 pound final end force for controlled detent action
• Maximum ball reach of 0.048 inches
• Color code: Purple for quick field identification

Compatibility

Designed as a standard threaded ball plunger for use in any application requiring a 3/8-16 threaded detent or positioning element in mechanical fixtures, tooling, or assemblies.

Installation Notes

Installation requires a pre-tapped 3/8-16 threaded hole in the mating component. Use appropriate hand tools or a torque wrench to seat the plunger without over-tightening, which can restrict ball movement. Ensure the mating surface and bore are clean and free of debris before installation. Verify ball travel and force engagement after installation to confirm proper detent function.
