Gibraltar SSWN10-10BH-G Threaded Ball Plunger 5/8-11

Product Description

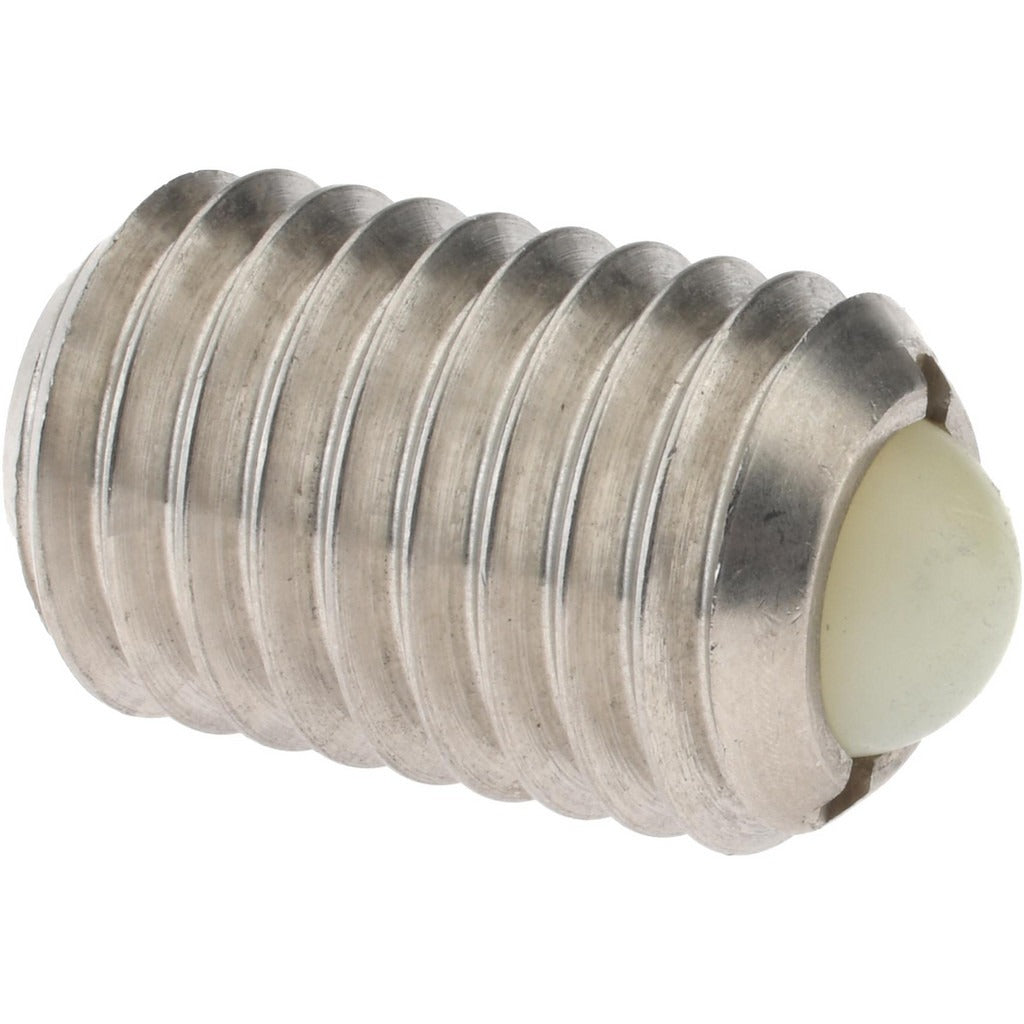

The GIBRALTAR SSWN10-10BH-G is a threaded ball plunger designed for use in positioning, indexing, and light-duty detent applications across industrial and mechanical assembly environments. The plunger features a 5/8-11 thread size, a 0.375-inch nylon ball, and a stainless steel body measuring 0.984 inches in length. It delivers 7 pounds of initial end force and 50 pounds of final end force, making it well-suited for applications requiring a firm, repeatable hold. The nylon ball minimizes surface marring on workpieces, while the stainless steel body provides corrosion resistance in light-exposure or washdown environments. Installed by machinists, toolmakers, and maintenance technicians.

This ball plunger is used in machine tools, jigs, fixtures, dies, and assembly tooling where controlled detent action or part positioning is needed. The 5/8-11 thread allows installation into standard tapped holes in steel, aluminum, or plastic tooling plates. With a maximum ball reach of 0.096 inches, the part is intended for shallow-engagement detent scenarios. The purple color code aids in quick identification during tooling setup and maintenance. Typical environments include manufacturing floors, maintenance shops, and precision assembly operations.

Key Features

• 5/8-11 thread size for installation in standard tapped tooling holes
• Stainless steel body for corrosion resistance and durability
• Nylon ball reduces marring on contact surfaces
• 7-pound initial end force and 50-pound final end force for firm detent action
• Maximum ball reach of 0.096 inches for shallow-engagement applications
• Purple color code for easy field identification

Compatibility

Designed as an OEM-style replacement or direct-install component for machinery, fixtures, jigs, and tooling assemblies using 5/8-11 threaded ball plunger positions.

Installation Notes

Installation is performed by machinists or maintenance technicians using a standard hex wrench or spanner suited to the plunger body. Thread the plunger into a clean, properly tapped 5/8-11 hole and torque to the fixture manufacturer's specification. Ensure the ball is free of debris and moves smoothly before returning the assembly to service. De-energize or lock out any powered equipment before servicing plungers installed in active machinery.
