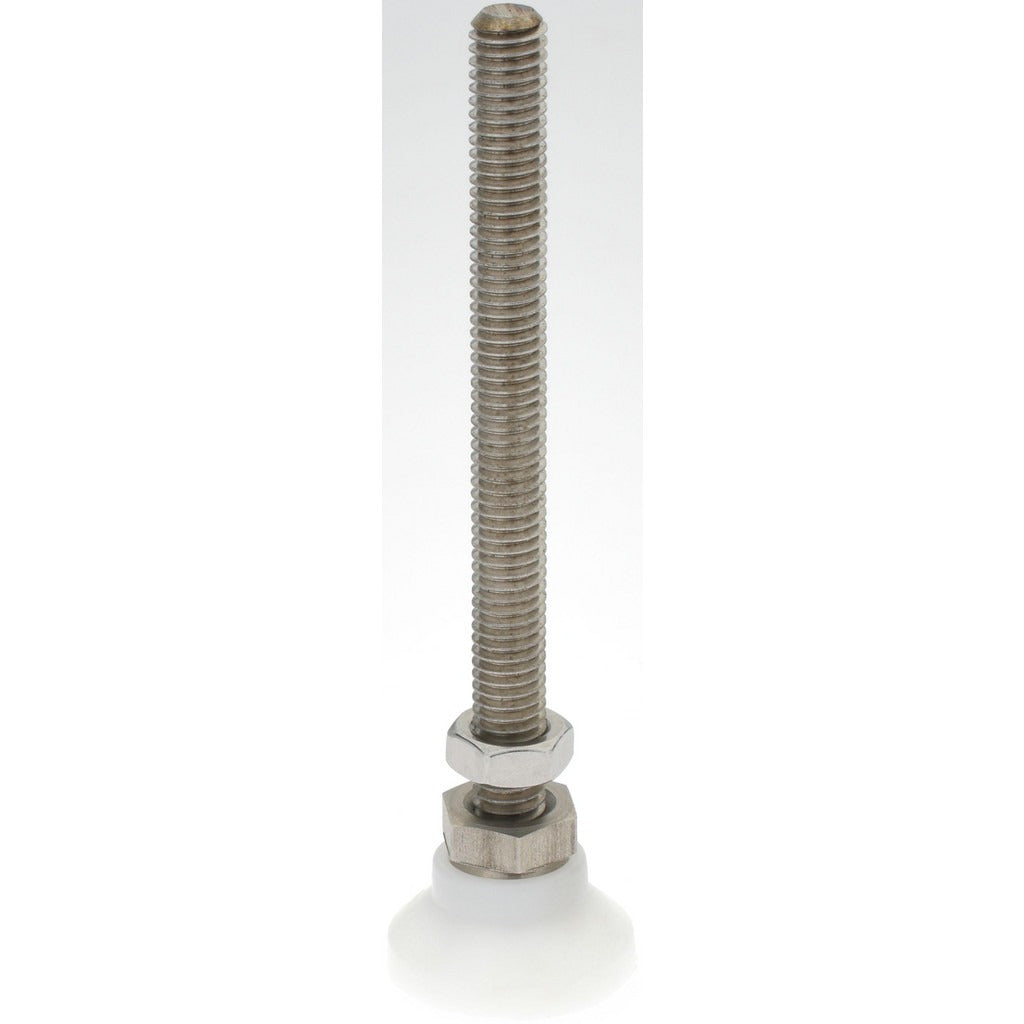

Gibraltar SSWD-1A-G Studded Pivotal Leveling Mount 300 Lb

Product Description

The GIBRALTAR SSWD-1A-G is a studded pivotal leveling mount designed to provide stable, adjustable support for machinery, equipment enclosures, and industrial assemblies. The mount features a stainless steel stud with a 3/8-16 bolt thread and a Delrin pad base that pivots to self-level on uneven surfaces. With a rated load capacity of 300 pounds, this mount handles demanding applications where solid footing and minor height adjustment are required. It measures 4.875 inches in length with a 1.25-inch base diameter, making it compact enough for tight installations. Typically installed by millwrights, industrial maintenance technicians, or mechanical contractors during equipment leveling and alignment work.

This leveling mount suits residential and light commercial applications where equipment must be leveled on concrete slabs, equipment pads, or structural bases. Common installations include HVAC air handlers, compressors, pump assemblies, and general industrial machinery requiring vibration isolation and stable footing. The pivoting Delrin pad accommodates slight surface irregularities without full base contact loss, maintaining load distribution across the mount footprint.

Key Features

• 300-pound load capacity supports a wide range of mechanical and HVAC equipment
• Stainless steel stud resists corrosion in damp or outdoor-adjacent installations
• Pivoting Delrin pad self-levels on uneven or slightly sloped mounting surfaces
• 3/8-16 bolt thread is a common standard size for straightforward fastener compatibility
• Compact 1.25-inch base diameter fits confined mounting footprints
• 4.875-inch overall length provides adequate height adjustment range

Compatibility

Designed as an OEM-style leveling mount for use with machinery, equipment enclosures, and mechanical assemblies requiring a 3/8-16 threaded stud mount point with up to 300 pounds of load capacity per mount.

Installation Notes

Installation is typically performed by mechanical or industrial maintenance technicians. Before installing or adjusting, ensure the equipment is de-energized and depressurized as applicable. Thread the stainless steel stud into the equipment base to the appropriate engagement depth and tighten with a standard wrench to secure positioning. Distribute load evenly across multiple mounts and verify level with a precision level tool before returning the equipment to service.
