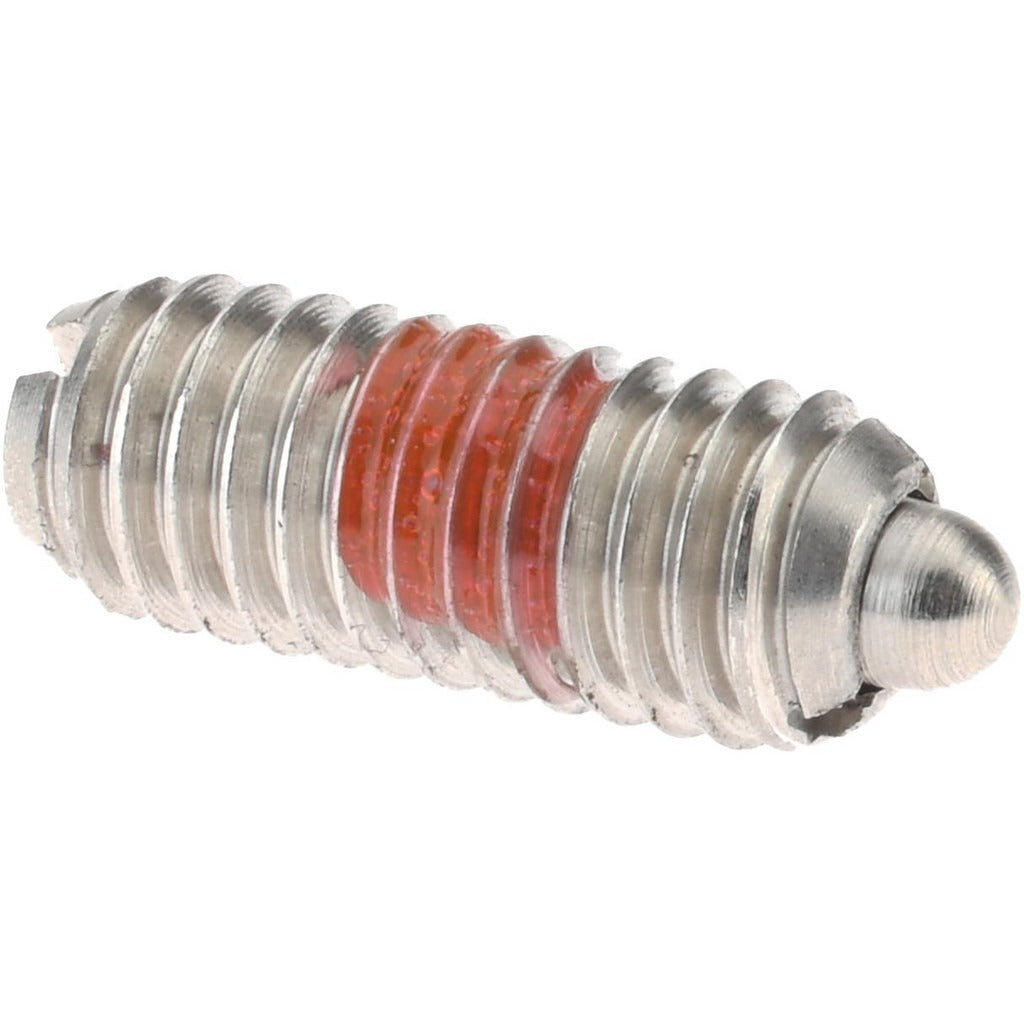

Gibraltar SSW10-3SP-G Threaded Spring Plunger 10-32

Product Description

The GIBRALTAR SSW10-3SP-G is a stubby threaded spring plunger designed for indexing, positioning, and light-duty holding applications in mechanical assemblies. Built with a stainless steel body and stainless steel nose, this plunger features a 10-32 thread size and a total thread length of 0.468 inches. The locking element locks the plunger in place after adjustment, preventing back-out from vibration. Initial end force is 1.7 pounds and final end force is 6.2 pounds, making it suitable for applications that require a firm, controlled detent feel. Licensed machinists, tool-and-die technicians, and mechanical assembly professionals typically specify and install this component.

This spring plunger fits into threaded holes in fixtures, jigs, dies, and precision mechanical assemblies where repeatable positioning or light retention is required. The stubby profile keeps the installed length minimal, making it well suited for space-constrained housings and shallow-threaded applications. It is sold individually and is appropriate for both prototype and production-volume applications where a compact, corrosion-resistant plunger is needed.

Key Features

• Stainless steel body and nose for corrosion resistance in wash-down or high-humidity environments
• Locking element prevents loosening from vibration after final positioning
• Stubby plunger length type minimizes overall installed length
• 1.7 pounds initial end force and 6.2 pounds final end force for a firm detent
• 10-32 thread for compatibility with standard tapped holes in tooling and fixture plates
• Plunger projection of 0.065 inches provides controlled, low-profile engagement

Compatibility

Designed as an OEM-style replacement or standard-spec component for any mechanical assembly, fixture, or jig that accepts a 10-32 threaded spring plunger with a stubby body profile.

Installation Notes

Installation is performed by mechanical technicians or machinists using a hex key or spanner to thread the plunger into a pre-tapped 10-32 hole. Ensure the mating bore is clean and threads are free of debris before installation. The locking element should be engaged after the plunger is set to its final position to prevent back-out. Do not overtighten, as this can damage the plunger body or deform the locking element.
