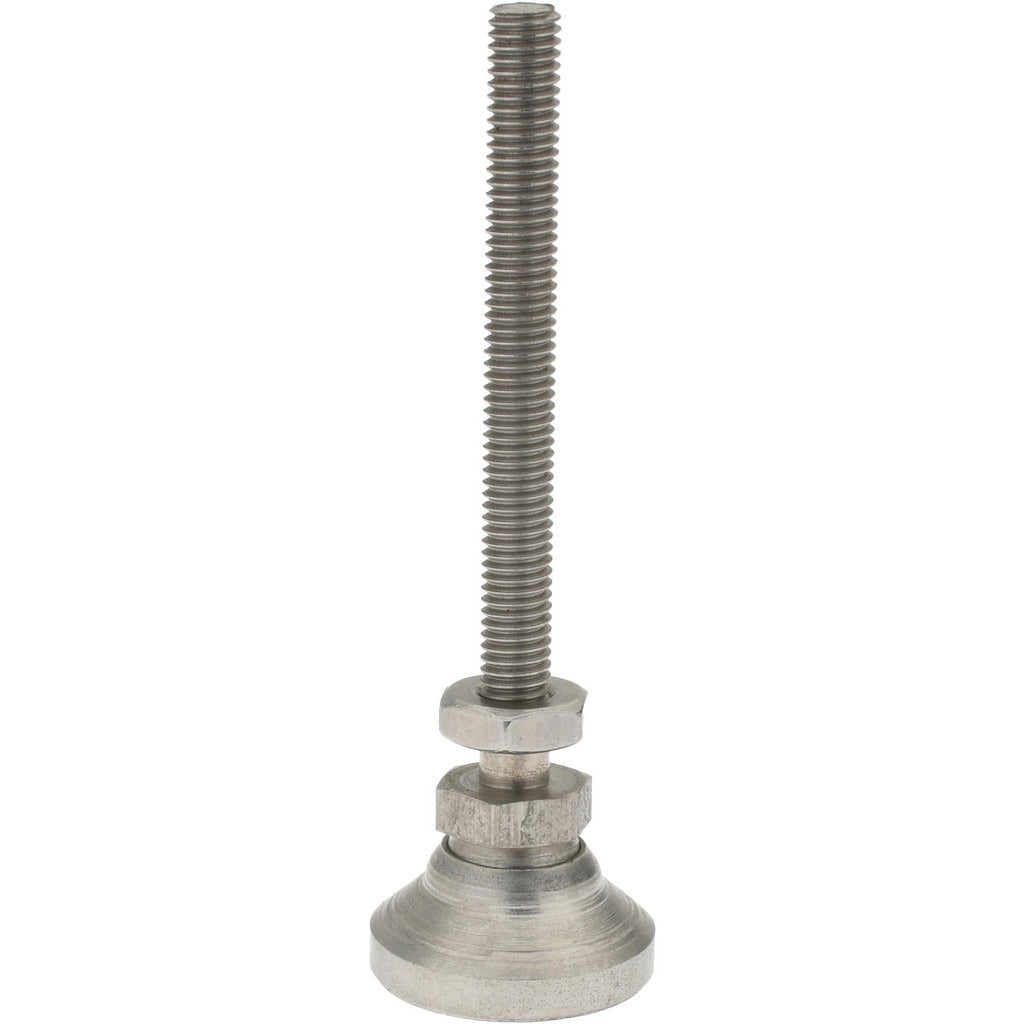

Gibraltar SSW-00A-G Studded Pivotal Leveling Mount 700 Lb

Product Description

The GIBRALTAR SSW-00A-G is a studded pivotal leveling mount designed to provide stable, adjustable support for machinery, equipment frames, and industrial assemblies. The pivotal design allows the mount to self-align with uneven surfaces, distributing load evenly across the stainless steel pad. Rated at 700 pounds load capacity, it uses a 10-32 bolt thread stud and measures 2.5 inches in length with a 0.75-inch base diameter. Both the pad and the stud are constructed from stainless steel, making this mount suitable for environments where corrosion resistance is required. Maintenance technicians, millwrights, and equipment installers are the typical end users.

This leveling mount is used in light to medium-duty applications where equipment must be leveled on a fixed surface. Common installation scenarios include positioning HVAC equipment bases, pump skids, control panels, and other mechanical assemblies that require fine height adjustment and anti-vibration stability. The small footprint and stainless steel construction make it a practical choice for indoor mechanical rooms and corrosion-prone environments such as pool equipment areas or wet utility spaces.

Key Features

• 700 pound rated load capacity per mount
• Pivotal pad self-aligns to uneven or angled mounting surfaces
• Stainless steel pad and stud for corrosion resistance
• 10-32 bolt thread stud for compatibility with standard threaded inserts and frames
• Compact 0.75-inch base diameter fits tight equipment footprints
• 2.5-inch overall length provides meaningful height adjustment range

Compatibility

Designed as an OEM-style replacement or direct-fit leveling mount for equipment frames and machinery bases requiring a 10-32 threaded stud and a 0.75-inch base diameter pad.

Installation Notes

Installation is performed by threading the stud into a pre-tapped hole or a compatible threaded insert in the equipment base. Ensure the equipment is de-energized and depressurized before repositioning or adjusting leveling mounts. Use an appropriately sized wrench or socket on the stud to achieve the desired height, then verify the pivotal pad sits flush against the floor surface before locking the position. Follow applicable facility and equipment manufacturer guidelines for load distribution when using multiple mounts under a single assembly.
