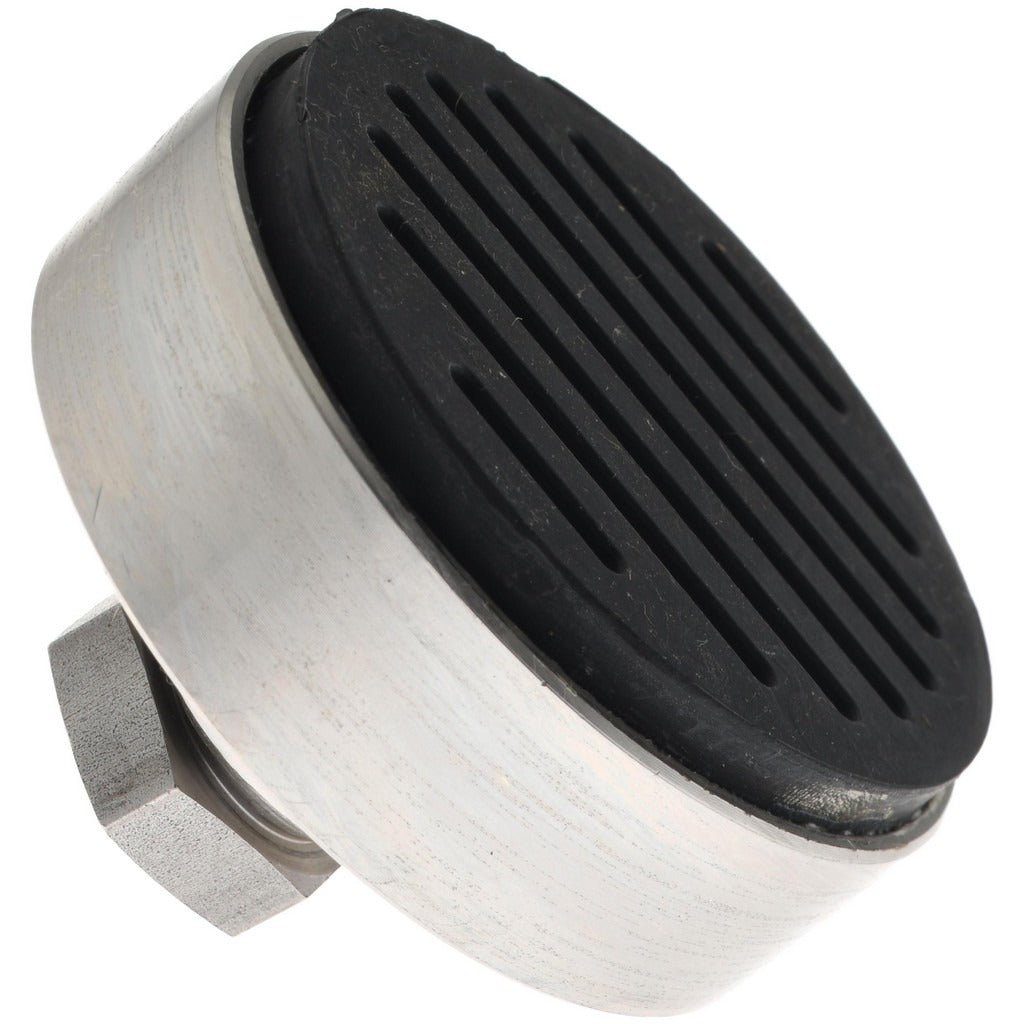

Gibraltar SS-TSW-4M-G Tapped Leveling Mount 650 Lb

Product Description

The GIBRALTAR SS-TSW-4M-G is a tapped leveling mount designed for industrial and commercial equipment positioning applications. It features a 3/4-10 threaded stud and accepts a mating leveled fastener to allow precise height and angle adjustment on stationary equipment bases. Both the stud and the pad are constructed from stainless steel, providing corrosion resistance in wet, washdown, or outdoor environments. The mount carries a load capacity of 650 pounds (295 kg) and has an overall length of 2.125 inches with a 3-inch base diameter. Maintenance technicians, millwrights, and facilities tradespeople install this type of mount under machinery frames, enclosures, and equipment pads.

This leveling mount is suited for light to medium industrial equipment requiring stable, adjustable footing. Typical applications include HVAC unit bases, compressor skids, pump frames, electrical enclosures, and food-service or process equipment where corrosion resistance is a priority. The stainless steel construction makes it appropriate for environments exposed to moisture, cleaning chemicals, or moderate corrosive exposure. It is sold individually and installed with standard hand tools.

Key Features

• 650 lb load capacity per mount for medium-duty equipment support
• 3/4-10 threaded stud for secure engagement with equipment base tapping
• Stainless steel pad and stud for corrosion resistance in wet or washdown environments
• 3-inch base diameter distributes load across the mounting surface
• 1-1/16 inch hex size for standard wrench adjustment
• Overall length of 2.125 inches for low-profile installations

Compatibility

Designed as a replacement or new-installation tapped leveling mount for equipment bases with a 3/4-10 threaded mounting hole. Verify thread engagement depth and base plate thickness before installation.

Installation Notes

De-energize and lockout any connected electrical or mechanical equipment before adjusting or replacing leveling mounts. Use a 1-1/16 inch wrench or socket to thread and tighten the stud into the equipment base tapping. Do not exceed the rated 650 lb load capacity per mount. Ensure all mounts on a multi-point base are adjusted evenly to prevent rocking or uneven load distribution.
