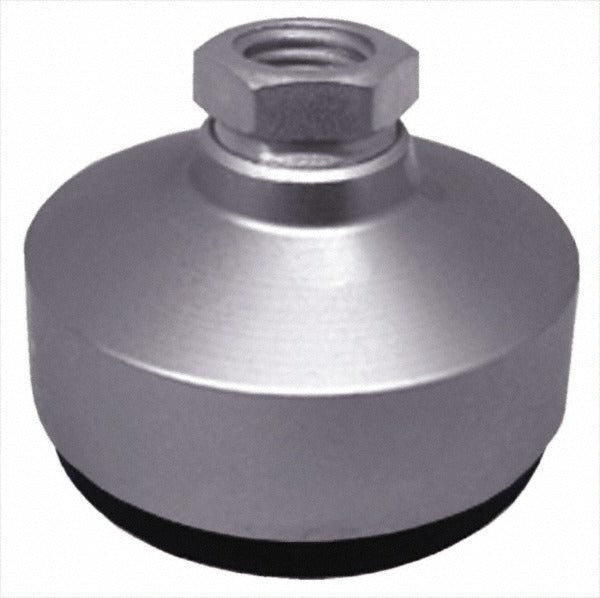

Gibraltar SS-TSW-1L-G Tapped Leveling Mount 3/8-16

Product Description

The GIBRALTAR SS-TSW-1L-G is a tapped leveling mount designed for machinery, equipment bases, and fabricated frames that require precise height adjustment and stable footing. The mount features a stainless steel stud and stainless steel pad, making it well suited for corrosive or wash-down environments. It accepts a 3/8-16 threaded fastener and supports a load capacity of 50 pounds. The overall length is 1.5 inches and the base diameter measures 1.25 inches. Maintenance technicians, millwrights, and fabricators use these mounts to level equipment on uneven surfaces without shimming or welding.

This leveling mount is used in light industrial, commercial, and facilities maintenance applications where equipment positioning and vibration isolation are required. Common install scenarios include benchtop machinery, instrument stands, enclosures, and frame assemblies where a threaded stud mount is the preferred attachment method. The compact base diameter makes it practical in tight mounting footprints.

Key Features

• 3/8-16 tapped thread for standard fastener compatibility
• 50 lb load capacity per mount
• Stainless steel stud and pad construction for corrosion resistance
• 1.25-inch base diameter fits compact mounting footprints
• 1.5-inch overall length provides adjustment range for leveling
• 5/8-inch hex size allows adjustment with standard wrenches

Compatibility

Designed as an OEM-style replacement or direct-fit leveling mount for equipment and fabricated frames requiring a 3/8-16 tapped stud mount with a 1.25-inch base diameter.

Installation Notes

Installation is typically performed by millwrights, maintenance technicians, or fabricators using standard hand tools. De-energize and lock out any equipment before mounting or adjusting leveling feet. Use a wrench on the 5/8-inch hex to set the desired height, then secure with a jam nut if vibration or movement is expected. Verify load distribution across all mount points before returning equipment to service.
