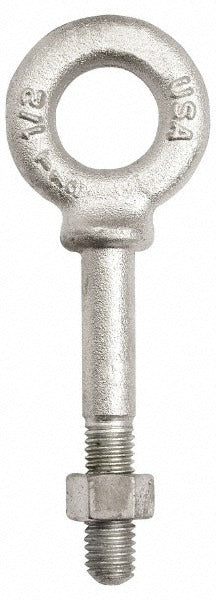

Gibraltar SP12319 Fixed Shoulder Eye Bolt 1400 Lb 3/8-16

Product Description

The GIBRALTAR SP12319 is a fixed shoulder eye bolt rated for 1,400 lb lifting capacity, designed for overhead lifting and rigging applications in industrial and construction environments. Built from Grade C-1035 steel with a hot dipped galvanized finish, this eye bolt resists corrosion in demanding job site conditions. The 3/8-16 fully threaded shank measures 3 inches in length, and the fixed eye configuration provides a consistent load angle for straight vertical lifts. Licensed riggers, ironworkers, and maintenance technicians install this type of hardware where a secure, load-rated anchor point is required on machinery, structural assemblies, or load-bearing fixtures.

This eye bolt is suited for use in residential construction, commercial jobsites, and industrial maintenance settings where a fixed, shouldered eye bolt is specified. The shoulder design seats firmly against the work surface to distribute load and prevent the eye from pulling through under tension. The hot dipped galvanized finish makes it appropriate for outdoor or high-moisture environments. Typical applications include rigging anchor points, machinery lifting lugs, and structural tie-off locations.

Key Features

• 1,400 lb rated lifting capacity for straight vertical loads
• Fixed eye design provides stable, consistent load angle
• Shoulder configuration seats against work surface to distribute load and prevent pull-through
• Fully threaded 3-inch shank with 3/8-16 thread size for secure fastening
• Grade C-1035 steel construction for reliable strength
• Hot dipped galvanized finish for corrosion resistance in outdoor and wet environments

Compatibility

Designed for use in standard 3/8-16 threaded holes or with a matching nut; compatible with inch-measurement rigging hardware and lifting fixtures requiring a shouldered fixed eye bolt.

Installation Notes

Installation is typically performed by qualified riggers or maintenance technicians following applicable ASME B30.26 rigging hardware standards. Shut down and de-energize any associated machinery before installing or removing lifting hardware. Fixed eye bolts must be loaded in the plane of the eye only - side loading or angular loading beyond the rated angle significantly reduces safe working load. Verify thread engagement and shoulder seating before applying any load.
