Gibraltar SL-814 Side Lock M10-1.50 Die Cast Injection Mold

Product Description

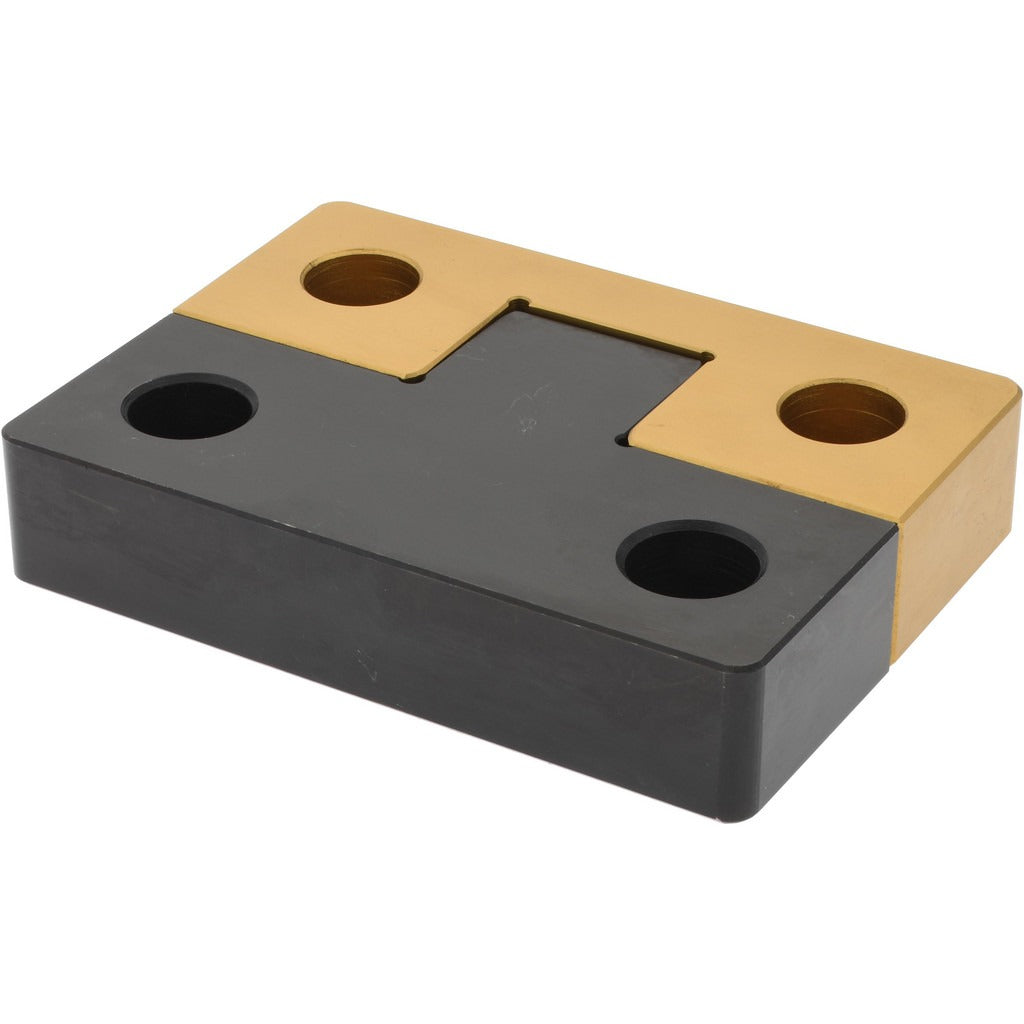

The GIBRALTAR SL-814 is a side lock component designed for use in mold blank and punch die set assemblies. It provides secure lateral locking action within the mold structure, maintaining alignment and positional integrity during die casting and injection molding cycles. The SL-814 features an M10-1.50 thread size and measures 3.54 inches in height, 4.92 inches in width, and 0.98 inches in length. Weighing 0.5 pounds, it is a compact, solid piece of mold hardware suited for integration into precision tooling setups. Installation is performed by toolmakers, mold setters, and die technicians working in production environments.

The SL-814 is intended for use in die cast mold and injection mold applications. It fits within the mold blank and punch die set hardware category, making it appropriate for both production tooling and replacement scenarios in manufacturing environments. This component is sold individually, with a package quantity of one unit per order, and is suited for shops requiring a direct replacement or new-build side lock with M10-1.50 threading.

Key Features

• Side lock design provides lateral positional control within mold assemblies
• M10-1.50 thread size for standard metric fastening compatibility
• Compact form factor: 3.54 inches height, 4.92 inches width, 0.98 inches length
• Lightweight at 0.5 pounds for easy handling during mold setup
• Compatible with die cast mold and injection mold configurations
• Sold as a single-unit package for targeted replacement or tooling builds

Compatibility

Designed for use in die cast mold and injection mold assemblies as a side lock hardware component within mold blank and punch die set configurations.

Installation Notes

Installation is typically performed by qualified toolmakers or mold technicians. All machinery should be fully de-energized and hydraulic or pneumatic pressure relieved before accessing the mold assembly. Standard metric hand tools are required for the M10-1.50 threaded interface. Follow the mold manufacturer's assembly procedures and applicable shop safety standards when integrating or replacing side lock components.
