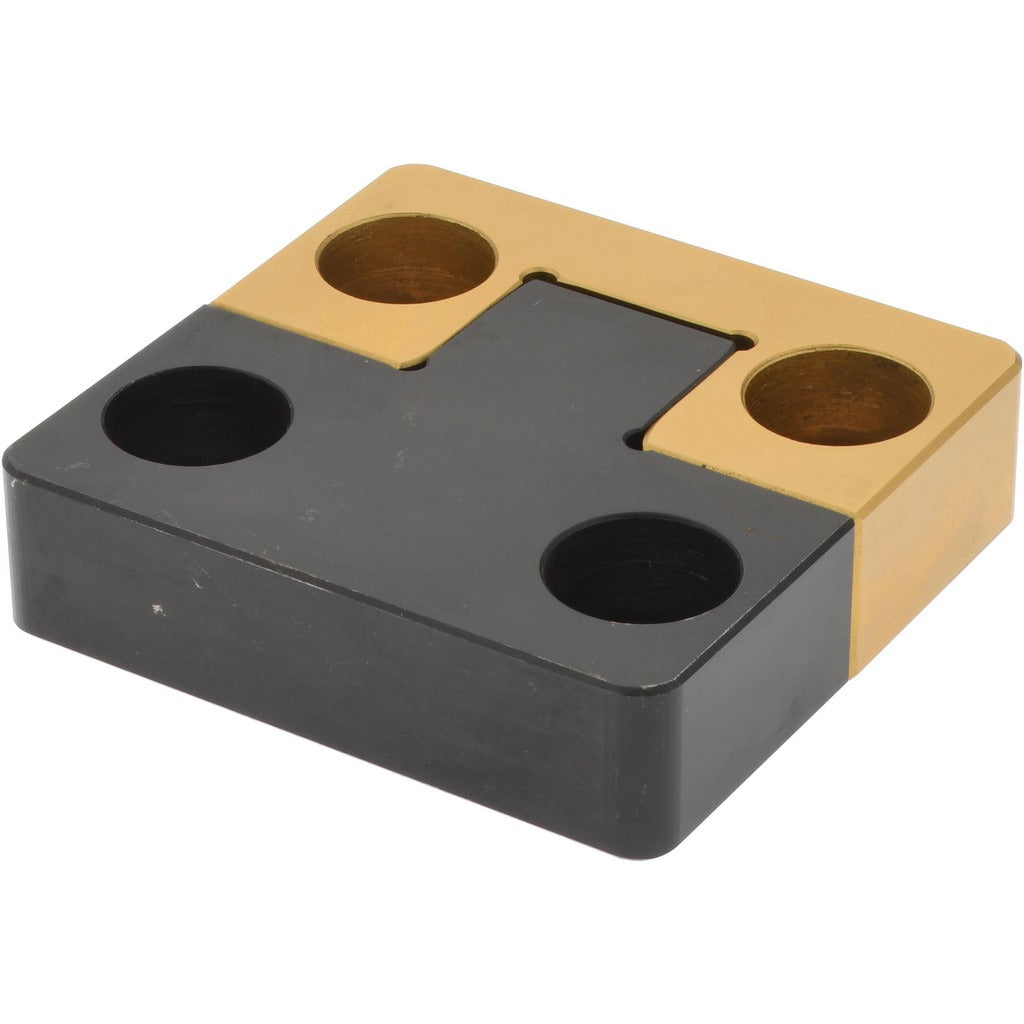

Gibraltar SL-812 Side Lock Die Hardware M10-1.50 Thread

Product Description

The GIBRALTAR SL-812 is a side lock hardware component designed for use in mold blank and punch die set applications. It provides secure lateral locking within die cast and injection mold tooling assemblies, maintaining precise positioning of mold components during the molding cycle. The SL-812 features an M10-1.50 thread size and measures 2.83 inches in height, 2.95 inches in width, and 0.75 inches in length. Weighing 0.5 pounds, it is a compact but robust piece of tooling hardware suited for installation by mold makers, tooling technicians, and die shop professionals.

The SL-812 is intended for integration into die cast mold and injection mold assemblies where side locking is required to control lateral movement of mold inserts or slides. It is typically installed during mold build or repair by qualified tooling personnel working in production tooling environments. The M10-1.50 thread specification makes it compatible with standard metric fastener interfaces found in industrial mold bases and die sets. This component is sold individually and is appropriate for both new mold construction and maintenance replacement scenarios.

Key Features

• Side lock design controls lateral movement within die cast and injection mold assemblies
• M10-1.50 thread size for compatibility with standard metric mold base interfaces
• Compact form factor: 2.83 inches height, 2.95 inches width, 0.75 inches length
• Lightweight at 0.5 pounds for easy handling during mold assembly or repair
• Sold as a single unit to support exact replacement or incremental tooling builds

Compatibility

Designed for use in die cast mold and injection mold tooling assemblies requiring M10-1.50 threaded side lock hardware.

Installation Notes

Installation should be performed by a qualified mold maker or tooling technician familiar with die set and injection mold assembly procedures. Ensure the mold or die set is fully de-energized, depressurized, and cooled before beginning any hardware replacement or installation. Use appropriate metric tooling to engage the M10-1.50 thread without cross-threading or over-torquing. Verify proper seating and lock engagement before returning the mold to production service.
