Gibraltar SL-811 Side Lock Die Set Hardware M6-1.00

Product Description

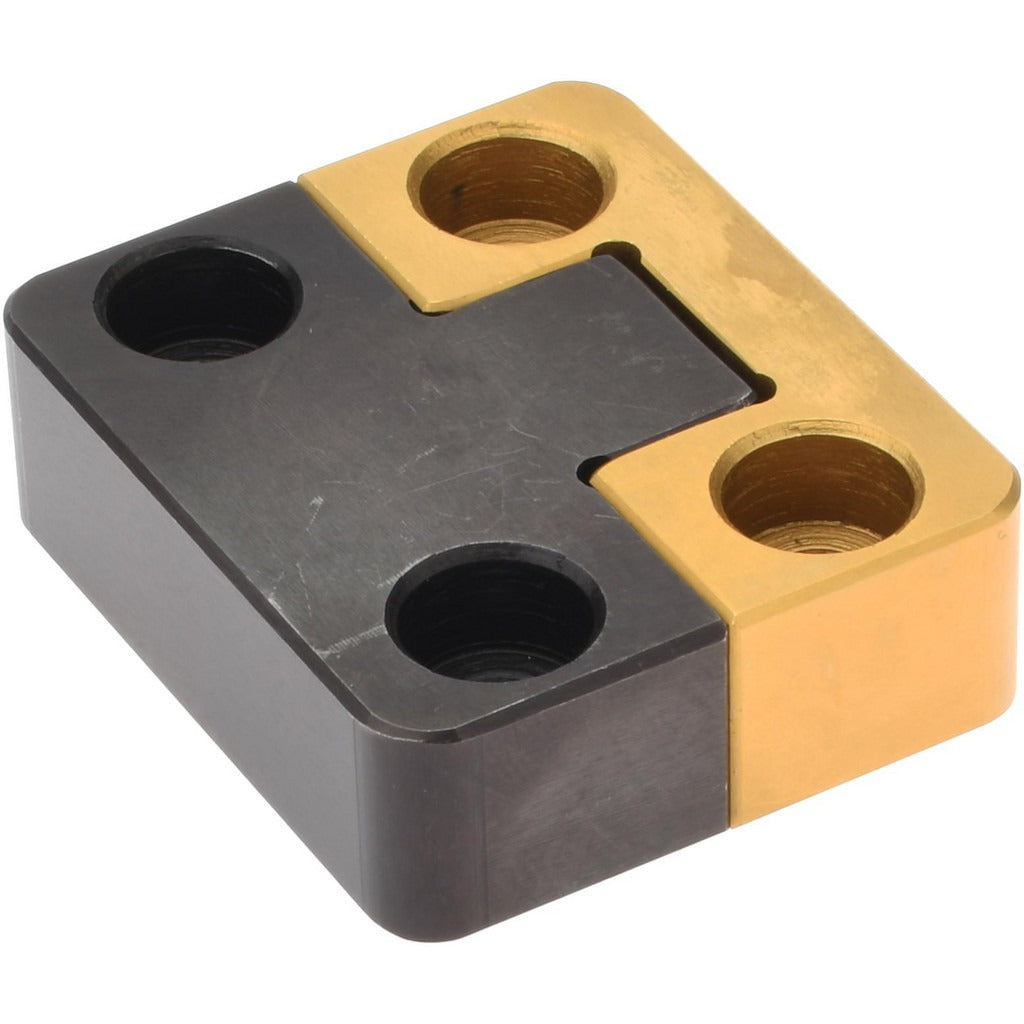

The GIBRALTAR SL-811 is a side lock component designed for use in mold blank and punch die set assemblies. It provides secure lateral locking within tooling setups, keeping mold components aligned and stable during operation. The SL-811 features an M6-1.00 thread size and compact dimensions, making it suitable for integration into tight mold configurations. It is typically installed by toolmakers, moldmakers, and die set technicians working in precision manufacturing environments. At 0.5 pounds, the part is lightweight and packaged individually for single-unit replacement or new tooling builds.

The SL-811 is intended for use in die cast mold and injection mold applications. These environments demand repeatable, consistent locking performance across high-cycle operations. The compact profile, measuring 1.69 inches in height, 1.97 inches in width, and 0.63 inches in length, allows it to fit within standard mold base configurations without requiring significant modification to existing tooling layouts. It is suited for both new mold construction and maintenance replacement scenarios in production tooling shops.

Key Features

• Side lock design provides lateral stability in mold blank and punch die assemblies
• M6-1.00 thread size for compatibility with standard metric fastening systems
• Compact dimensions: 1.69 inches height, 1.97 inches width, 0.63 inches length
• Lightweight at 0.5 pounds, suitable for space-constrained tooling configurations
• Sold individually, supporting single-unit replacement without excess inventory

Compatibility

Designed for use with die cast mold and injection mold tooling systems requiring an M6-1.00 threaded side lock component.

Installation Notes

Installation should be performed by qualified toolmakers or moldmakers familiar with mold base hardware and metric fastening standards. Disengage and de-energize all associated machinery and relieve any residual pressure in the mold system before servicing tooling components. Use appropriate metric tooling to achieve proper thread engagement without over-torquing the M6-1.00 thread. Verify alignment of mold components after installation before returning the assembly to production.
