Gibraltar SL-810 Side Lock 3/8-16 Die Cast Mold Hardware

Product Description

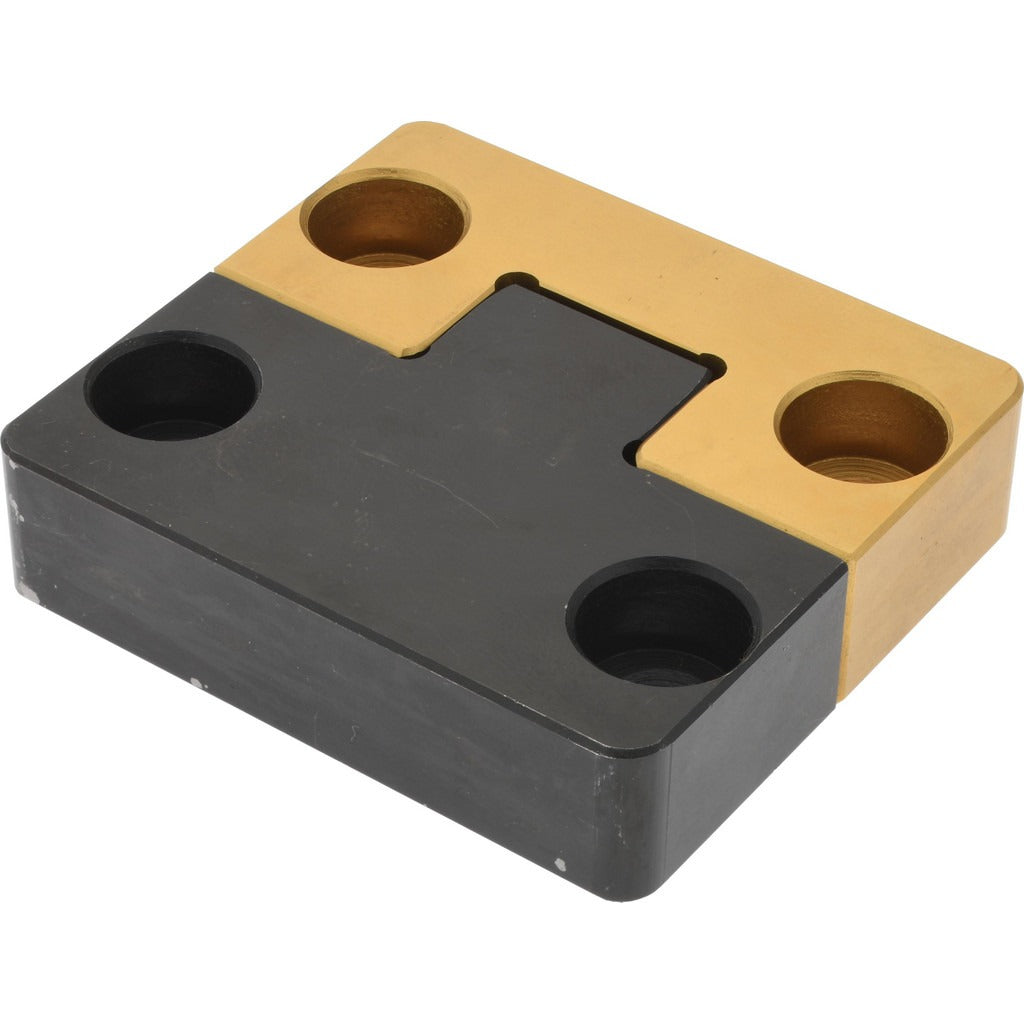

The GIBRALTAR SL-810 is a side lock component used in mold blank and punch die set assemblies. It provides secure lateral locking action within the mold structure, maintaining part alignment and positional integrity during the molding cycle. The SL-810 accepts a 3/8-16 threaded fastener and is built to handle the mechanical demands of repeated die cycling. At 0.5 pounds and compact in form, it installs directly into the mold plate or housing without requiring special tooling beyond standard hand tools. Toolmakers, mold builders, and die maintenance technicians are the primary installers of this component.

The SL-810 is suited for use in die cast mold and injection mold applications. It functions as a locking mechanism within the mold assembly, keeping side cores, slides, or inserts locked in position during the injection or casting phase. Its compact dimensions of 2.73 inches in height, 3 inches in width, and 0.75 inches in length allow it to fit standard mold plate configurations found in both prototype and production tooling environments. It is used in single-cavity and multi-cavity mold builds as well as in mold maintenance and repair scenarios.

Key Features

• Side lock design provides lateral locking force within die cast and injection mold assemblies
• 3/8-16 thread size for compatibility with standard fastener tooling
• Compact footprint: 2.73 inches height, 3 inches width, 0.75 inches length
• Lightweight at 0.5 pounds for easy handling during mold assembly and maintenance
• Sold individually, allowing single-unit replacement without overage

Compatibility

Designed as an OEM-style replacement or build component for die cast mold and injection mold assemblies requiring a 3/8-16 threaded side lock mechanism.

Installation Notes

Installation is performed by qualified toolmakers or mold maintenance technicians. Before servicing or replacing side lock components, ensure the mold is fully de-energized, de-pressurized, and cooled to a safe handling temperature. Use calibrated hand tools to seat the fastener to the 3/8-16 specification without over-torquing the mold plate threads. Verify alignment and positive lock engagement before returning the mold to production use.
