Gibraltar SL-809 Side Lock Die Set Hardware 1/4-20

Product Description

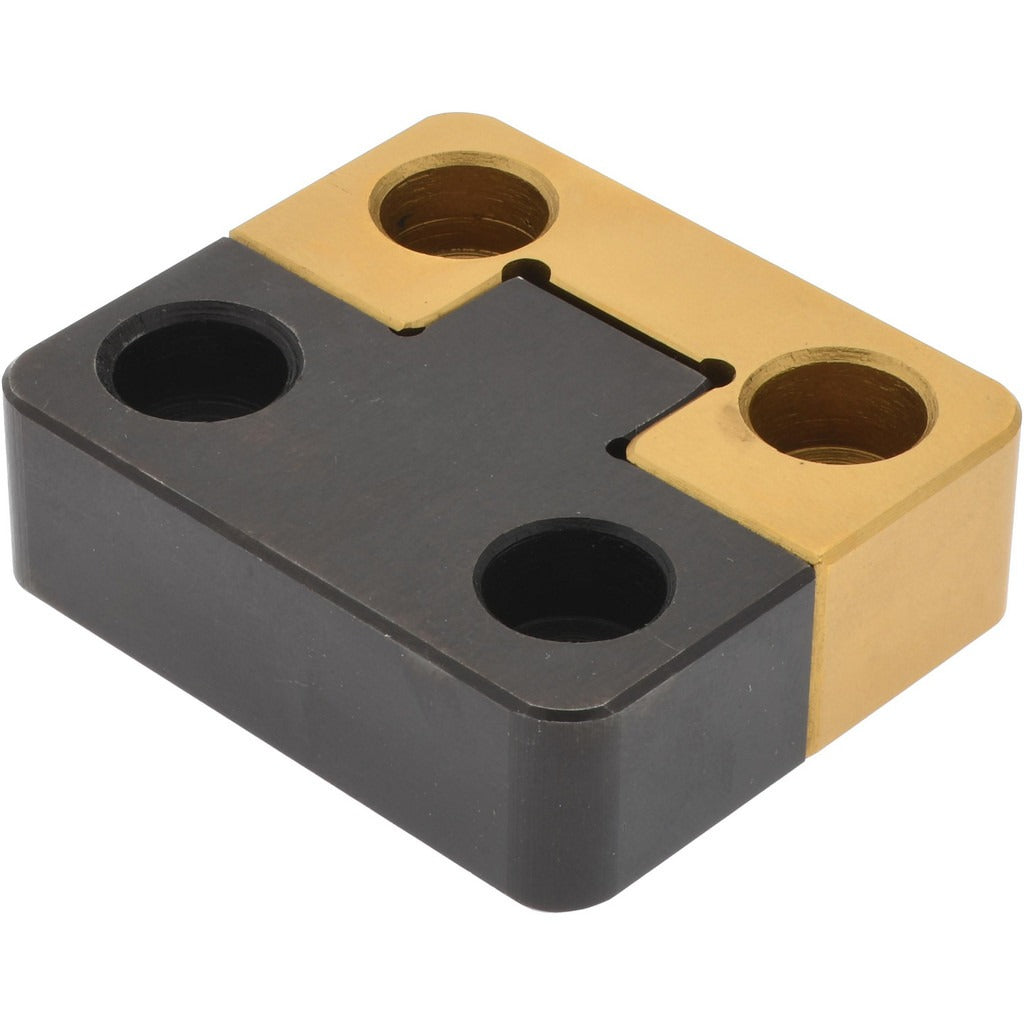

The GIBRALTAR SL-809 is a side lock component for mold blank and punch die set hardware applications. It provides secure lateral locking in die cast and injection mold assemblies, holding mold components in precise alignment during the molding cycle. The SL-809 measures 0.62 inches in length, 2 inches in width, and 1.74 inches in height, and uses a standard 1/4-20 thread for straightforward fastening. Weighing 0.5 pounds, it is a compact, purpose-built hardware piece suited for toolroom technicians and mold builders working with production tooling.

This side lock is designed for use in die cast mold and injection mold setups. It is a tooling hardware component typically installed during mold assembly or maintenance by mold makers and toolroom machinists. The SL-809 fits into applications where lateral stability of mold components is critical to maintaining part quality and dimensional consistency across production runs. Each package contains one unit, making it easy to order exact replacement quantities.

Key Features

• Side lock design provides lateral constraint in die cast and injection mold assemblies
• 1/4-20 threaded fastening for reliable, standardized installation
• Compact form factor: 0.62 inches x 2 inches x 1.74 inches
• Lightweight at 0.5 pounds for easy handling during mold setup
• Sold individually for precise replacement ordering

Compatibility

Designed for use with die cast molds and injection molds requiring standard side lock hardware with 1/4-20 thread fastening.

Installation Notes

Installation is typically performed by a qualified mold maker or toolroom machinist. Before servicing or replacing side lock components, ensure the press is fully de-energized, locked out, and the mold is safely supported. Use standard hand tools appropriate for 1/4-20 fasteners and verify seating and alignment before returning the mold to production.
