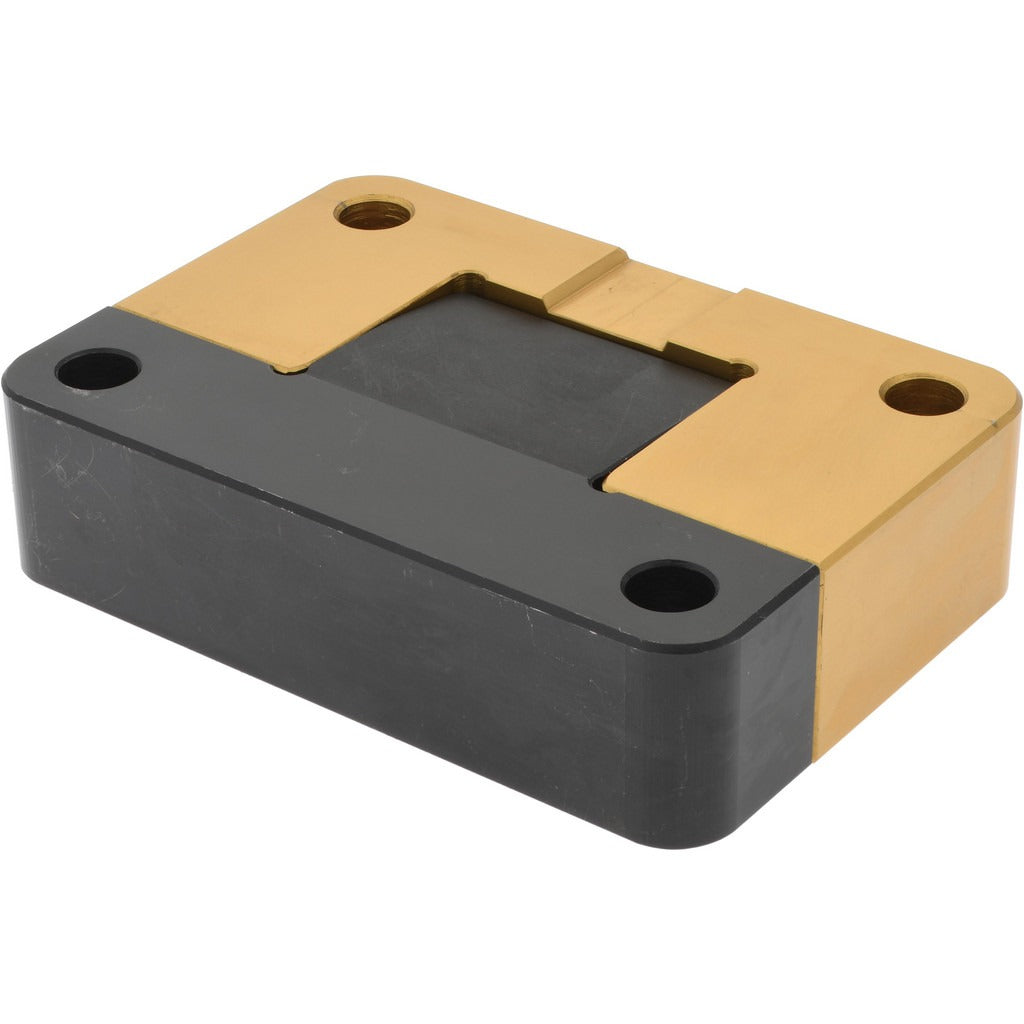

Gibraltar SL-807 Side Lock Die Set Hardware 1/2-13

Product Description

The GIBRALTAR SL-807 is a side lock hardware component designed for use in mold blank and punch die set assemblies. It provides secure lateral locking action within the mold structure, maintaining alignment and positional integrity during high-cycle die cast and injection molding operations. The SL-807 features a 1/2-13 thread size and compact dimensions of 1.5 inches in length, 6 inches in width, and 4.25 inches in height, making it suitable for integration into standard mold base configurations. Installation is typically handled by mold builders, toolmakers, or die set technicians working with precision tooling assemblies.

The SL-807 is intended for use in die cast mold and injection mold applications where reliable side locking is required. It fits into mold blank and punch die set hardware systems that demand consistent clamping and alignment under repeated production cycles. The compact form factor allows it to be incorporated into existing mold base designs without significant modification to surrounding components.

Key Features

• Side lock design provides lateral positional control within die set and mold blank assemblies
• 1/2-13 thread size for secure and standardized fastening
• Compatible with die cast mold and injection mold tooling systems
• Compact profile at 1.5 inches length, 6 inches width, and 4.25 inches height
• Lightweight construction at 0.5 pounds for ease of handling during installation

Compatibility

Designed for use with die cast mold and injection mold assemblies. Suitable as a side lock hardware component within standard mold blank and punch die set configurations.

Installation Notes

Installation is performed by qualified toolmakers or mold technicians. All press and mold equipment must be fully de-energized and mechanical safety blocks must be in place before servicing any die set or mold base hardware. Verify thread engagement and seating before returning the mold assembly to production use. Follow applicable OSHA machine guarding and lockout/tagout procedures during installation.
