Gibraltar SL-802 Side Lock Die Set Hardware 8-32 Thread

Product Description

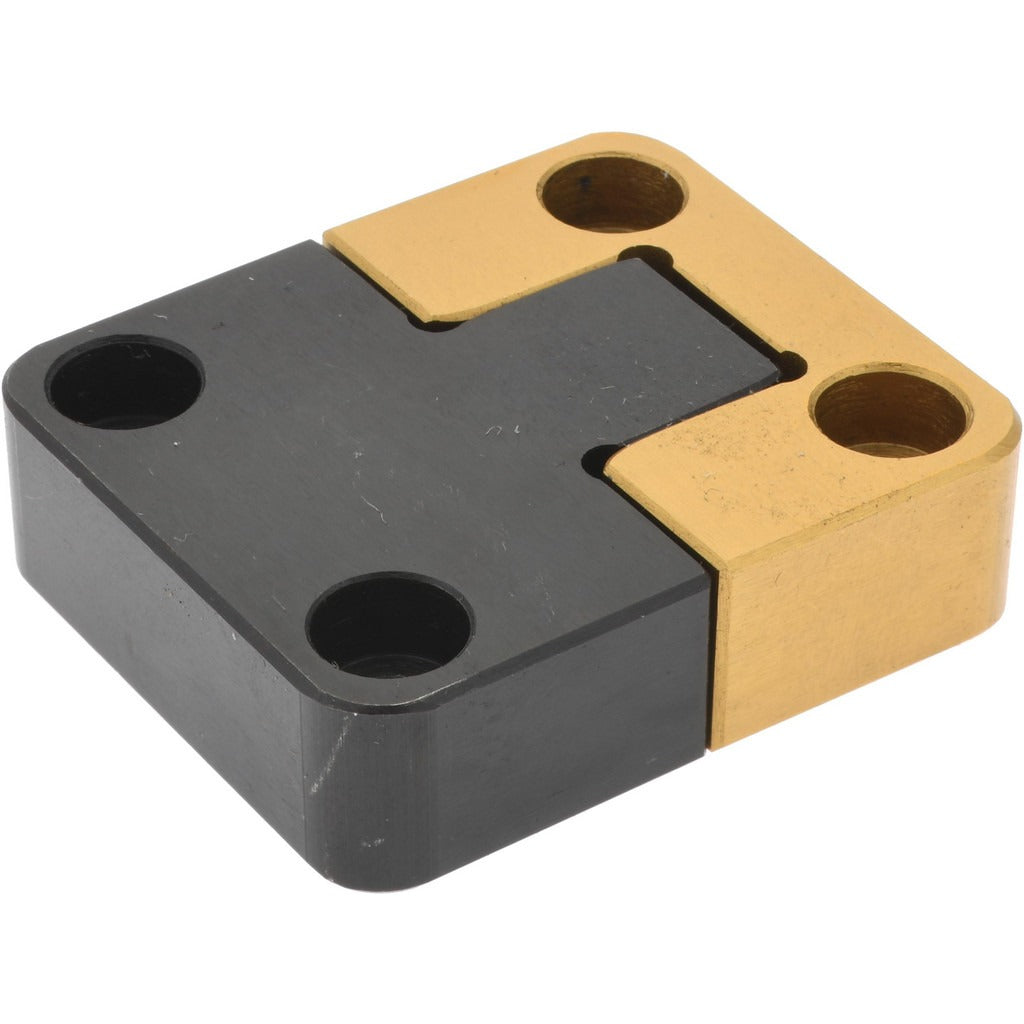

The GIBRALTAR SL-802 is a side lock hardware component designed for use in mold blank and punch die set applications. It functions as a locking element that secures and positions components within die cast and injection mold assemblies. The SL-802 features an 8-32 thread size and compact dimensions of 1.75 inches in height, 1.5 inches in width, and 0.5 inches in length. Weighing 0.5 pounds, this part is suited for toolmakers, moldmakers, and die set technicians working with precision mold tooling. It is sold as a single unit.

The SL-802 side lock is used in die cast mold and injection mold assemblies where secure lateral component locking is required. It fits into standard mold blank and punch die set configurations. This hardware type is commonly installed during mold build or maintenance operations in both production toolrooms and job shops. The 8-32 thread size is compatible with standard fastener patterns found in these tooling applications.

Key Features

• Side lock design for lateral positioning and retention in mold assemblies
• 8-32 thread size for standard fastener compatibility
• Compact form factor: 1.75 inches height, 1.5 inches width, 0.5 inches length
• Compatible with die cast mold and injection mold configurations
• Single-unit packaging for direct replacement or toolroom stock

Compatibility

Designed for use with die cast mold and injection mold assemblies. Compatible with standard mold blank and punch die set hardware configurations requiring an 8-32 thread side lock component.

Installation Notes

Installation is typically performed by a toolmaker or moldmaker during mold assembly or component replacement. Ensure all press and mold clamping systems are fully de-energized and depressurized before servicing internal mold hardware. Use the appropriate driver or wrench sized for the 8-32 thread to avoid stripping. Verify alignment with mating components before final torque seating.
