Gibraltar SL-801 Side Lock Mold Hardware 8-32 Thread

Product Description

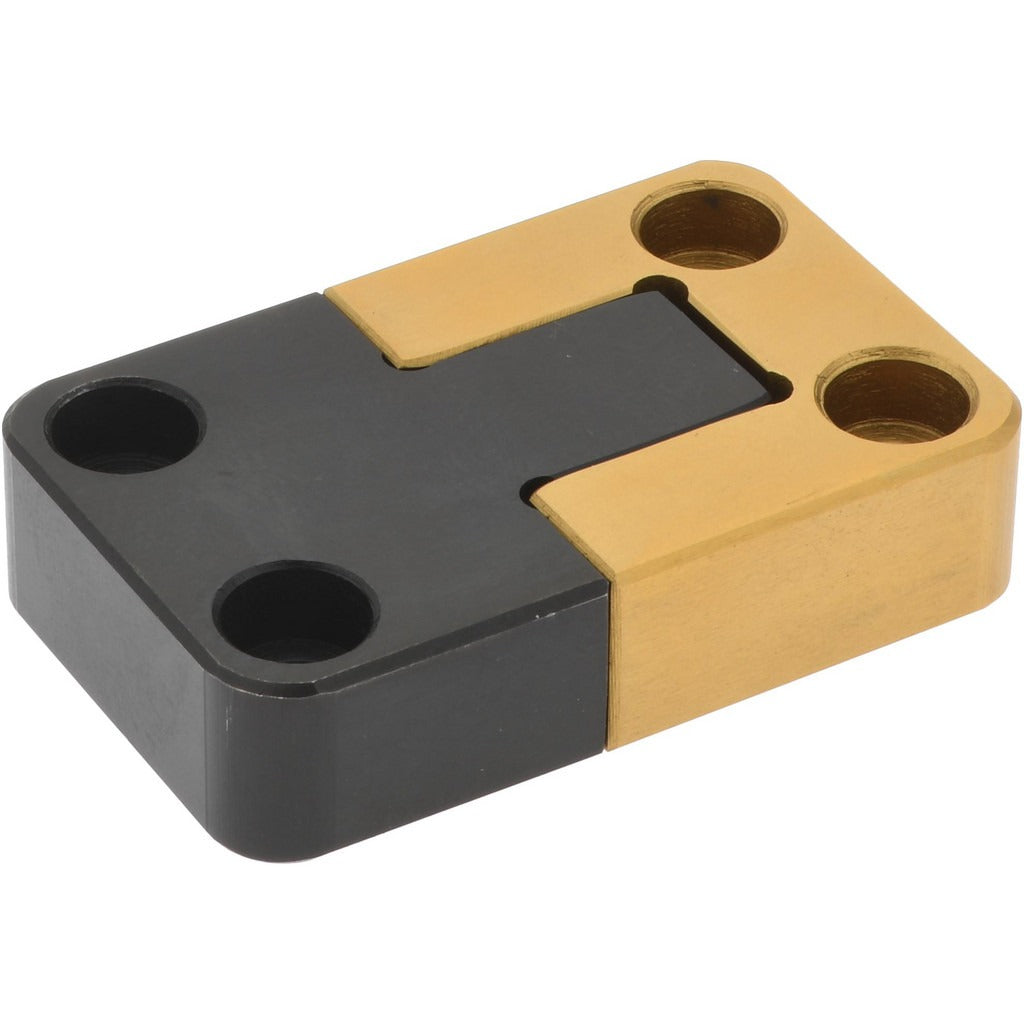

The GIBRALTAR SL-801 is a side lock component for mold blank and punch die set assemblies. It provides secure lateral locking within the mold assembly, maintaining precise alignment and consistent part ejection during production cycles. Measuring 2 inches in height, 1.25 inches in width, and 0.49 inches in length, the SL-801 is a compact, drop-in replacement hardware piece. At 0.5 pounds, it is lightweight yet designed to withstand the mechanical demands of repetitive molding operations. The 8-32 thread size ensures compatibility with standard fastener configurations used in tooling and fixture applications. This part is typically installed by tool and die makers, mold technicians, and industrial maintenance personnel.

The SL-801 is suited for use in die cast mold and injection mold assemblies. It serves as a side locking element in mold base tooling, securing components laterally to prevent shift during the injection or casting cycle. Typical installation scenarios include new mold builds, mold refurbishment, and replacement of worn or damaged side lock hardware in existing tooling. The 8-32 threaded configuration aligns with standard mold base hardware patterns commonly found in production tooling environments.

Key Features

• Side lock design provides lateral component retention in mold assemblies
• 8-32 thread size matches standard mold base fastener patterns
• Compact form factor: 2 inches height, 1.25 inches width, 0.49 inches length
• Lightweight at 0.5 pounds for easy handling during tooling service
• Compatible with both die cast mold and injection mold applications
• Sold individually for targeted replacement without excess inventory

Compatibility

Designed for use in die cast mold and injection mold assemblies requiring 8-32 threaded side lock hardware components.

Installation Notes

Installation is performed by qualified tool and die makers or mold maintenance technicians. Ensure the mold assembly is fully de-energized, depressurized, and cooled to ambient temperature before disassembling tooling or replacing hardware. Use appropriately sized drivers to avoid thread damage on the 8-32 fastener interface. Follow the mold manufacturer's assembly specifications and applicable shop safety procedures during installation.
