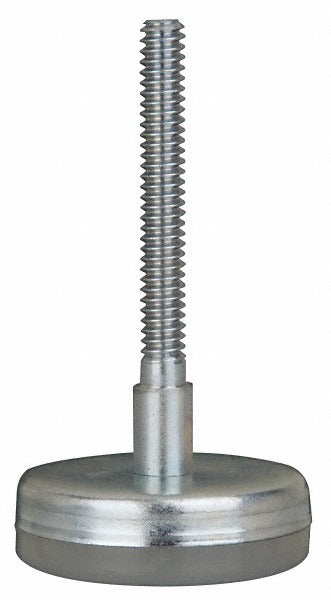

Gibraltar SG017-EL-G Leveling Mount 500 Lb

Product Description

The GIBRALTAR SG017-EL-G is a heavy-duty leveling mount designed to provide stable, adjustable support for industrial equipment, machinery bases, and fabricated assemblies. It features a 5/8-11 bolt thread and a 6-inch thread length, allowing for a wide range of height adjustment to achieve precise leveling on uneven floors or mounting surfaces. With a rated load capacity of 500 pounds, this mount is built for demanding shop and plant environments. Licensed tradespeople and maintenance technicians install these mounts during initial equipment setup or machinery repositioning jobs.

This leveling mount is suited for use in manufacturing facilities, machine shops, fabrication environments, and commercial or industrial maintenance applications. It supports equipment that requires frequent repositioning or fine-tuned leveling, such as presses, conveyors, workbenches, and production machinery. The 3.187-inch base diameter provides a stable footprint to distribute load evenly across the mounting surface.

Key Features

• 500 lb load capacity supports heavy industrial equipment
• 5/8-11 bolt thread size for secure, standard-compatible installation
• 6-inch thread length allows wide vertical adjustment range
• 3.187-inch base diameter delivers stable load distribution
• Compact, single-unit package suitable for individual or multiple-mount installations

Compatibility

Designed as an OEM-style replacement or direct-install leveling mount for industrial equipment bases requiring a 5/8-11 threaded stud and up to 500 lb load capacity per mount point.

Installation Notes

Installation is typically performed by millwrights, maintenance technicians, or equipment assemblers. Before installation, ensure the equipment is powered down, de-energized, and safely supported. Use appropriate wrenches to thread and torque the mount into the equipment base, then adjust height as needed to achieve level positioning. Verify load rating is not exceeded based on total equipment weight distributed across all mount points.
