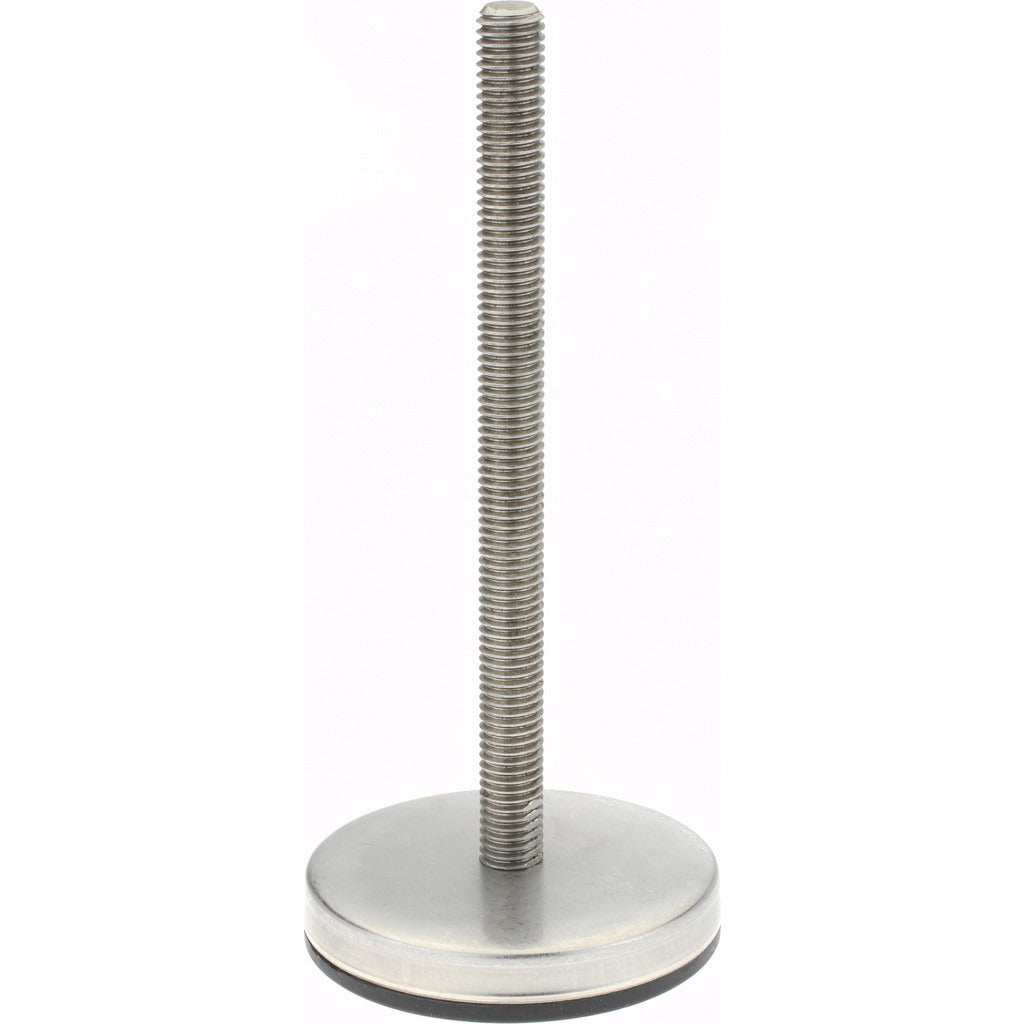

Gibraltar SG015-EL-G Leveling Mount 500 Lb 3.187 in Base

Product Description

The GIBRALTAR SG015-EL-G is a heavy-duty leveling mount designed to support, stabilize, and level industrial equipment, machinery bases, and fabricated frames. With a rated load capacity of 500 pounds and a 1/2-13 bolt thread, this mount provides a reliable anchoring point for applications that demand precise leveling and vibration isolation. The 3.187-inch base diameter distributes load effectively across mounting surfaces. At 0.52 pounds, it is compact enough for tight installation spaces. Licensed tradespeople and maintenance mechanics install this type of hardware during equipment setup, machine alignment, and base fabrication projects in commercial and industrial environments.

This leveling mount is suited for use in manufacturing facilities, mechanical rooms, and fabrication shops where equipment must be set to a level plane on uneven or finished flooring. It is commonly used beneath HVAC air handlers, compressors, pump bases, workbenches, and similar structural assemblies that require fine vertical adjustment after initial placement. The 6.0-inch thread length allows for a significant range of height adjustment, accommodating surface irregularities without shimming.

Key Features

• 500 lb rated load capacity for heavy equipment support
• 1/2-13 bolt thread size for compatibility with standard fastener tooling
• 3.187-inch base diameter for stable load distribution
• 6.0-inch thread length provides wide vertical adjustment range
• Compact form at 0.52 pounds for easy handling and installation

Compatibility

Designed as a standard leveling mount for industrial and commercial equipment bases requiring a 1/2-13 threaded stud with a 3.187-inch diameter foot pad.

Installation Notes

Installation is performed by millwrights, maintenance mechanics, or qualified tradespeople during equipment commissioning or realignment. Power down all connected equipment and relieve any load from the mounting surface before replacing or adjusting leveling mounts. Use appropriate wrenches for the 1/2-13 thread to avoid galling the stud. Verify final level using a precision level after torquing all mounts to their installed position.
