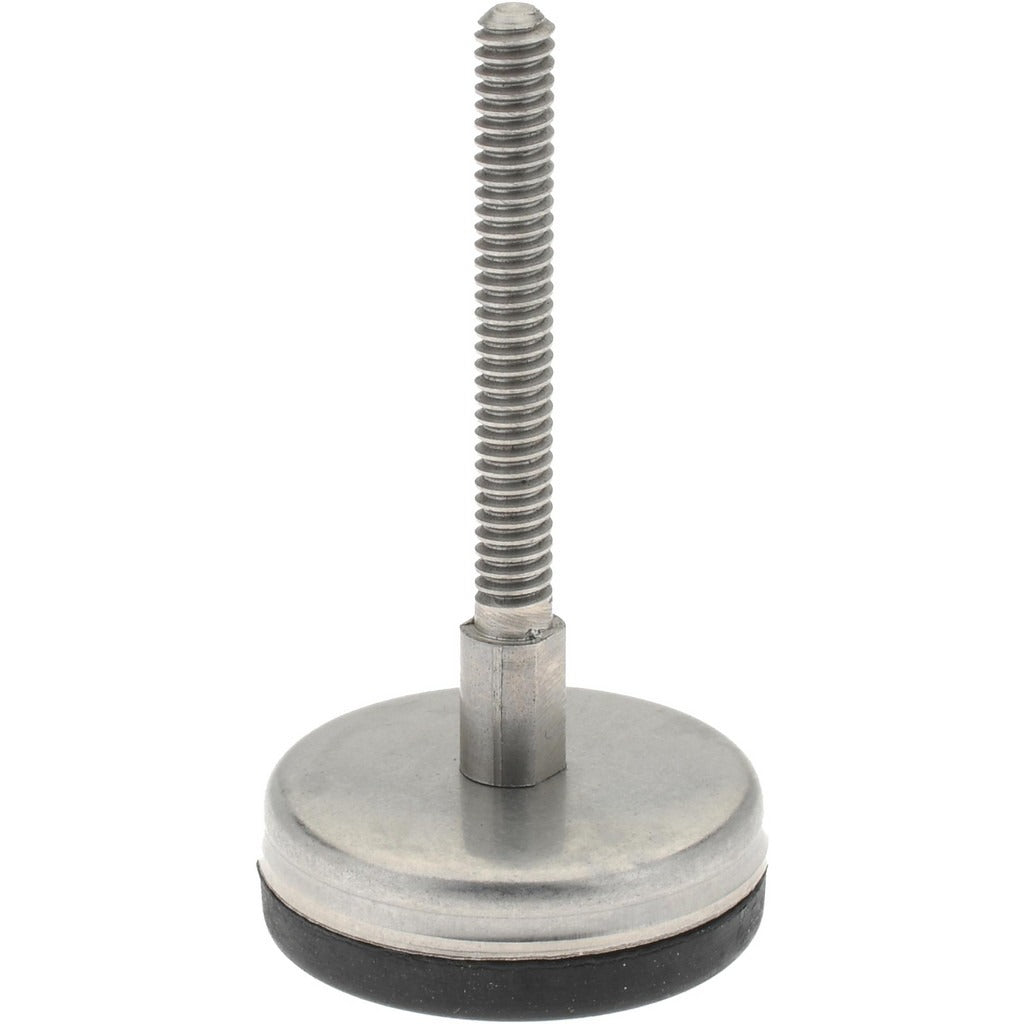

Gibraltar SG01-EL-G Leveling Mount 250 Lb

Product Description

The GIBRALTAR SG01-EL-G is a threaded leveling mount designed to provide stable, adjustable support for machinery, enclosures, equipment stands, and industrial assemblies. With a 250 lb load capacity and a 10-24 bolt thread size, this mount handles light to moderate leveling applications where precise height and alignment adjustment is required. The 1.5-inch thread length allows for meaningful height adjustment, while the 1.2-inch base diameter distributes load across a compact footprint. Maintenance technicians, millwrights, and equipment installers use this type of mount when positioning machinery on uneven surfaces or when vibration isolation is needed at the base.

This leveling mount is suited for use in light industrial, commercial, and mechanical room environments. Typical applications include leveling equipment enclosures, control panels, workbenches, conveyors, and fabricated steel frames. The compact base diameter makes it practical in tight mounting locations where a larger pad would not fit. It is sold individually and is appropriate for any application requiring a standard 10-24 threaded stud mount.

Key Features

• 250 lb load capacity supports light to moderate industrial equipment loads
• 10-24 bolt thread size for compatibility with standard threaded hardware
• 1.5-inch thread length provides adjustable height range
• 1.2-inch base diameter offers a compact footprint for tight mounting areas
• Sold as a single unit for flexible quantity purchasing

Compatibility

Designed as an OEM-style replacement or aftermarket leveling mount for equipment and assemblies requiring a 10-24 threaded stud leveling foot with a 1.2-inch base diameter.

Installation Notes

Installation is typically performed by millwrights, maintenance technicians, or equipment assemblers using standard hand tools. Thread the mount into a pre-tapped hole or mating hardware to the appropriate depth before placing load on the assembly. De-energize and safely lock out any powered equipment before servicing or repositioning leveling mounts underneath it. Do not exceed the rated 250 lb load capacity per mount.
