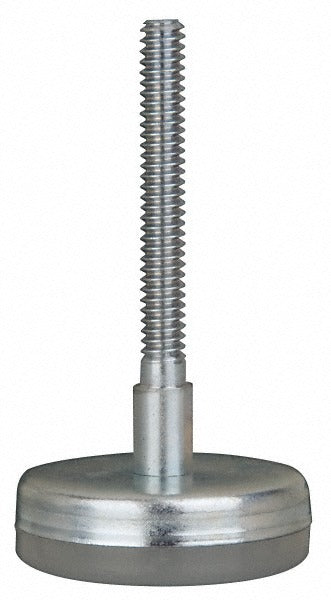

Gibraltar SG-08-G Leveling Mount 250 Lb 1/2-13

Product Description

The GIBRALTAR SG-08-G is a leveling mount designed to provide stable, adjustable support for machinery, equipment enclosures, and fabricated assemblies. The mount features a 1/2-13 bolt thread and a 2.0-inch thread length that allows height and level adjustment during installation or equipment setup. With a rated load capacity of 250 pounds, it is suited for light-to-medium duty industrial and commercial applications. The 2.4-inch base diameter distributes load across a broad footprint, reducing point loading on floors and mounting surfaces. Millwrights, maintenance technicians, and equipment installers typically work with components like this during machine placement and alignment tasks.

This leveling mount is used in settings where equipment must be precisely leveled on uneven or finished floors. Typical applications include machine bases, control enclosures, workbenches, and fabricated frames that require fine height adjustment after placement. The threaded stud design allows adjustment using standard hand tools without disassembling the equipment. The mount is sold individually and suits both new installations and retrofit leveling projects in industrial, commercial, and light manufacturing environments.

Key Features

• 250 lb rated load capacity for light-to-medium duty support
• 1/2-13 bolt thread size for compatibility with standard threaded hardware
• 2.0-inch thread length allows meaningful height and leveling adjustment range
• 2.4-inch base diameter provides a broad footprint to distribute load
• Compact form factor suited for close-clearance machine base installations

Compatibility

Designed as a general-purpose leveling mount for use with machine bases, equipment frames, and enclosures requiring a 1/2-13 threaded mounting stud.

Installation Notes

Installation is typically performed by millwrights or maintenance technicians during equipment placement. Ensure the equipment is de-energized and mechanically supported before adjusting or replacing leveling mounts. Use a wrench on the 1/2-13 threaded stud to set height and a level to confirm alignment before locking the mount in final position. Do not exceed the rated 250 lb load capacity per mount when calculating total equipment support requirements.
