Gibraltar ROFR-250-G Quick Release Pin Receptacle

Product Description

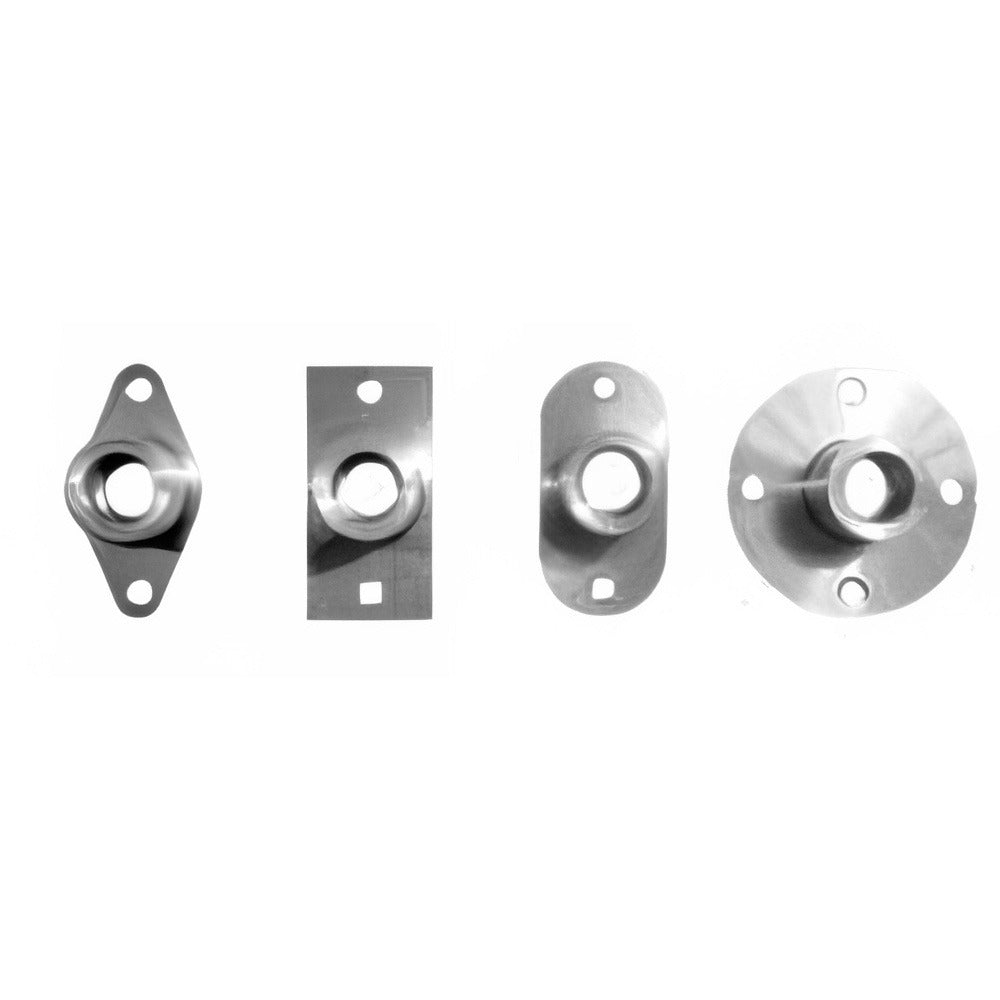

The GIBRALTAR ROFR-250-G is a round flange quick release pin receptacle machined from Grade 303 stainless steel. It accepts a 1/4-inch diameter quick release pin and mounts via a 6-32 threaded hole pattern with 1 inch between mount hole centers. The round flange measures 1.25 inches in diameter and 0.06 inches thick. The receptacle body is 0.375 inches in diameter and 0.65 inches deep. This hardware is installed by mechanical technicians, fabricators, and trade professionals who need reliable, removable pin connections in assemblies exposed to corrosion or repeated service cycles.

This receptacle is suited for applications requiring tool-free panel access, removable guards, and quick-disconnect assemblies in industrial, HVAC, and mechanical enclosure environments. The Grade 303 stainless steel construction makes it appropriate for light corrosive exposure and cleanroom-adjacent installations. It mounts flush via the round flange, keeping the pin axis perpendicular to the mounting surface for consistent pin engagement and release.

Key Features

• Accepts 1/4-inch diameter quick release pins for tool-free disconnect
• Grade 303 stainless steel construction resists corrosion and wear
• Round mounting flange, 1.25 inches diameter, for flush surface mounting
• 6-32 threaded mounting hole with 1-inch center-to-center spacing
• Receptacle depth of 0.65 inches provides secure pin retention
• Compact 0.375-inch receptacle diameter suits tight clearance installations

Compatibility

Designed as an OEM-style replacement or new-install receptacle for assemblies using 1/4-inch quick release pins with 6-32 round flange mounting configurations.

Installation Notes

Installation is performed by qualified mechanical technicians or fabricators. De-energize and isolate any assembly before replacing or installing pin receptacles on active equipment. Use appropriately sized taps and clearance drills for the 6-32 mounting thread; refer to ASME B18 fastener standards for torque guidance based on material and joint conditions. Verify pin diameter and retention force requirements before finalizing the installation.
