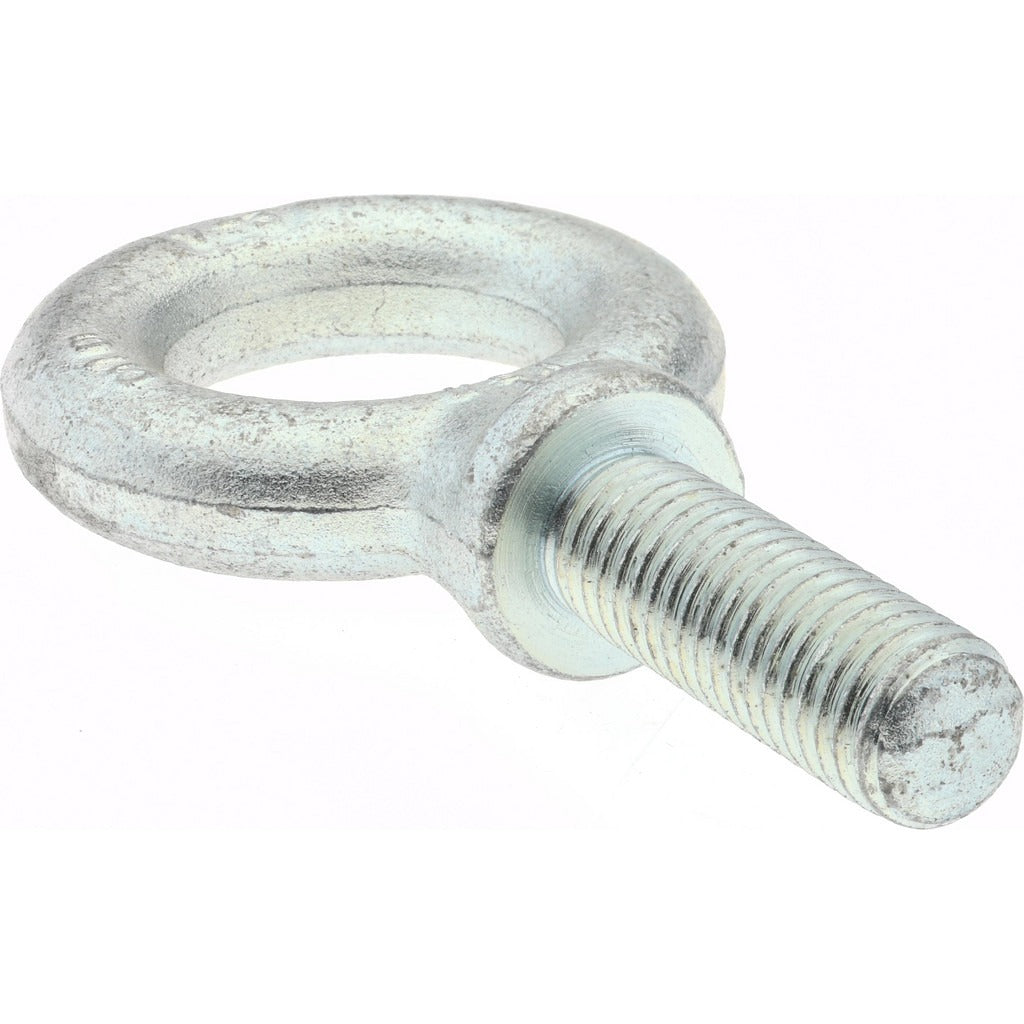

Gibraltar PZP14661GB Fixed Shoulder Eye Bolt 3500 Lb

Product Description

The GIBRALTAR PZP14661GB is a fixed lifting eye bolt with a shoulder, designed for overhead lifting and rigging applications in industrial and commercial environments. Rated at 3,500 lb lifting capacity, it is machined from Grade 1030 steel and finished with a zinc-plated coating for corrosion resistance. The bolt features a 5/8-11 thread size with a fully threaded shank measuring 1.75 inches in length and a thread length of 2.25 inches. The shoulder design provides a stable bearing surface against the work material, distributing load forces and reducing the risk of eye rotation during lifts. Riggers, maintenance mechanics, and millwrights are the typical installers of this hardware.

This eye bolt is suited for straight vertical lifting in industrial plants, warehouses, machinery shops, and construction sites. The shoulder configuration makes it appropriate for applications where the bolt passes through a plate or structural member, ensuring proper load transfer at the mounting surface. It is intended for use in inch-measurement fastening systems requiring a 5/8-11 threaded hole or nut engagement.

Key Features

• 3,500 lb rated lifting capacity for overhead rigging use
• Fully threaded 1.75-inch shank with 2.25-inch thread length for secure engagement
• Shoulder design stabilizes the eye bolt against the load surface and controls bearing load
• Grade 1030 steel construction provides reliable tensile strength for lifting service
• Zinc-plated finish adds corrosion resistance in typical shop and warehouse environments
• 5/8-11 thread size compatible with standard inch-measurement hardware

Compatibility

Designed as an OEM-style fixed shoulder eye bolt for general industrial lifting and rigging applications using 5/8-11 threaded connections.

Installation Notes

Installation should be performed by qualified riggers or maintenance mechanics familiar with ASME B30.26 and applicable rigging standards. Always ensure the threaded hole or nut is fully engaged to the rated thread length before applying load. Inspect the eye bolt and mating hardware for damage before each lift. Never side-load a fixed eye bolt beyond the rated angle specified by the manufacturer or applicable rigging code, and never use a fixed eye bolt as a swivel point under angular loading without verifying rated capacity at that angle.
