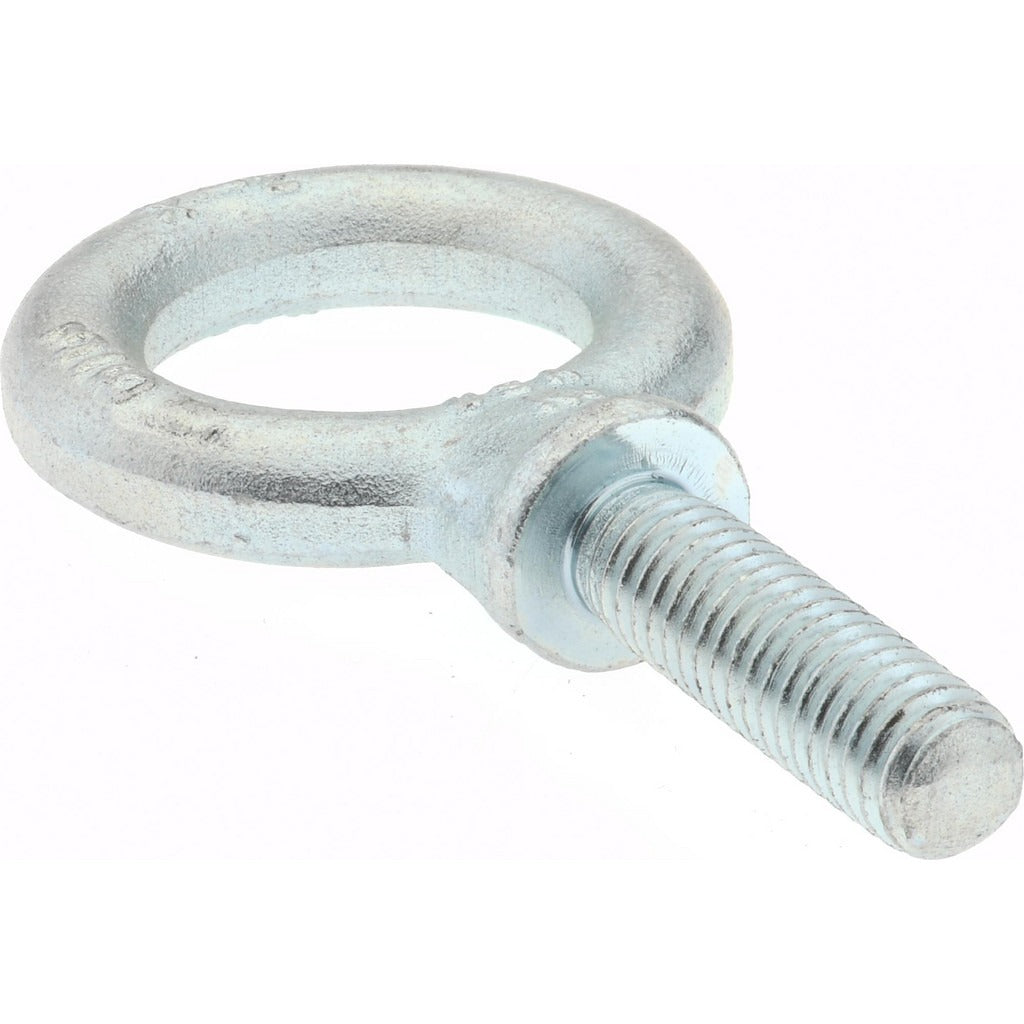

Gibraltar PZP14631GB Fixed Shoulder Eye Bolt 1200 Lb

Product Description

The GIBRALTAR PZP14631GB is a fixed lifting eye bolt with shoulder, rated for 1,200 lb lifting capacity. It is manufactured from Grade 1030 steel with a zinc-plated finish for corrosion resistance. The bolt features a 3/8-16 thread size, a fully threaded shank measuring 1.25 inches in length, and a thread length of 1.25 inches. The eye has a 1-inch inside diameter and a 1-11/16-inch outside diameter. The shoulder base diameter is 21/32 inch. This hardware is used by riggers, millwrights, HVAC technicians, and mechanical contractors in overhead lifting and rigging applications.

This eye bolt is suited for residential and commercial applications where a fixed, non-swivel lifting point is required. Typical uses include lifting HVAC equipment, mechanical assemblies, and structural components. The shoulder design distributes load into the mounting surface, making it appropriate for angular as well as straight-line pulls when the shoulder is properly seated against the work surface.

Key Features

• 1,200 lb rated lifting capacity for fixed, vertical load applications
• Shoulder design provides load distribution and angular pull support when fully seated
• Fully threaded shank, 1.25 inches long, with 3/8-16 thread size for broad fastener compatibility
• Grade 1030 steel construction for reliable tensile strength
• Zinc-plated finish for corrosion resistance in typical indoor and light outdoor environments
• 1-inch eye inside diameter accommodates standard rigging hardware such as shackles and hooks

Compatibility

Designed as an OEM-style fixed shoulder eye bolt for use with 3/8-16 threaded mounting points in standard rigging, lifting, and mechanical fastening applications.

Installation Notes

Installation should be performed by a qualified mechanic, rigger, or millwright following applicable ASME B30 rigging standards. Always power down or de-energize associated equipment before installing lifting hardware on mechanical assemblies. Thread the bolt fully until the shoulder seats flush and tight against the mounting surface before applying any load. Do not exceed the rated lifting capacity, and never use a fixed eye bolt as a swivel point under angular loads unless the shoulder is fully bearing on the work surface.
