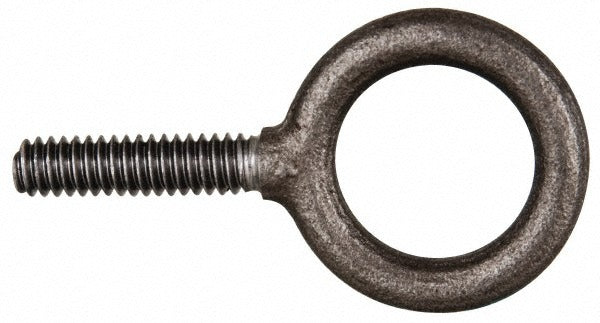

Gibraltar PZP13661GB Fixed Lifting Eye Bolt 3500 Lb 5/8-11

Product Description

The GIBRALTAR PZP13661GB is a fixed lifting eye bolt rated for 3,500 pounds of lifting capacity. It features a 5/8-11 thread with a fully threaded shank measuring 1-3/4 inches in length. The body is manufactured from Grade 1030 steel with a zinc-plated finish for corrosion resistance. Designed without a shoulder, this eye bolt is intended for straight, vertical pull applications. Riggers, millwrights, ironworkers, and maintenance technicians install this type of hardware when attaching a hook, shackle, or rigging line to a fixed load point on machinery, equipment, or structural members.

This eye bolt is suited for industrial maintenance, equipment lifting, and rigging applications in manufacturing facilities, construction sites, and mechanical rooms. The zinc-plated finish makes it appropriate for general indoor and moderately protected outdoor environments. It is sold as an individual unit and is well suited for jobs requiring a reliable, load-rated threaded anchor point on steel or heavy structural substrates. Typical uses include hoisting motors, gearboxes, pumps, and similar trade equipment.

Key Features

• 3,500 lb lifting capacity for heavy-duty rigging and hoisting applications
• 5/8-11 UNC thread with fully threaded shank for secure engagement
• 1-3/4 inch shank length and 1-3/4 inch thread length
• Grade 1030 steel construction for strength under load
• Zinc-plated finish provides corrosion protection in general-duty environments
• Without-shoulder design optimized for straight vertical lifting pulls

Compatibility

Designed as an OEM-style fixed lifting eye bolt for use in standard 5/8-11 UNC threaded holes on industrial equipment, machinery frames, and structural steel assemblies requiring a load-rated lift point.

Installation Notes

Installation should be performed by a qualified rigger or maintenance technician familiar with applicable ASME B30.26 rigging hardware standards. Always thread the bolt fully into a tapped hole with sufficient thread engagement before applying any load. De-energize and lock out all equipment before attaching rigging hardware per OSHA lockout/tagout procedures. Without-shoulder eye bolts must be loaded in the plane of the eye and only in straight vertical pulls — angular loads reduce rated capacity and are not recommended for this configuration.
