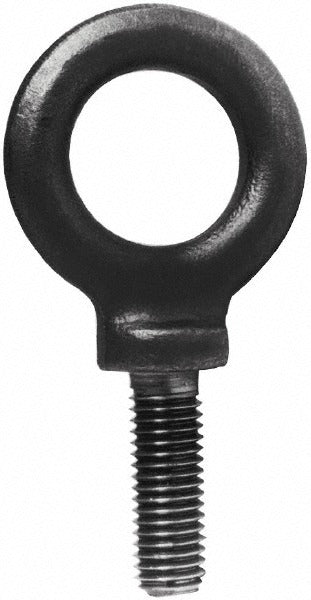

Gibraltar PSS14702GB Fixed Lifting Eye Bolt 9370 Lb 1-8

Product Description

The GIBRALTAR PSS14702GB is a fixed lifting eye bolt with shoulder, designed for overhead lifting and rigging applications in industrial and commercial environments. Manufactured from Grade 304 stainless steel, it offers strong corrosion resistance for use in demanding or moisture-exposed settings. The bolt features a 1-8 thread size, a fully threaded 2.5-inch shank, and a 2.5-inch thread length. With a rated lifting capacity of 9,370 pounds, this eye bolt is suited for heavy-load rigging work performed by industrial maintenance crews, riggers, and structural tradespeople.

This eye bolt is intended for fixed-direction vertical or in-line lifting applications. The shoulder design allows the bolt to seat flush against a structural surface, distributing load force and preventing pull-through under tension. The 1-8 thread size accommodates standard heavy-duty fastener applications. Typical installations include overhead rigging points, machinery lifting anchors, and structural attachment hardware in fabrication, plant maintenance, and construction trade settings.

Key Features

• 9,370 pound lifting capacity for heavy-load rigging applications
• Grade 304 stainless steel construction provides corrosion resistance in wet or chemically exposed environments
• Shoulder design seats flush against the mounting surface for load distribution
• Fully threaded shank allows maximum thread engagement across varying material thicknesses
• 1-8 thread size compatible with standard heavy-duty threaded hardware
• Eye inside diameter of 1-13/16 inches and eye outside diameter of 3-9/16 inches for hook and shackle fitment

Compatibility

Designed as an OEM-style fixed lifting eye bolt for industrial rigging, overhead lifting, and structural anchoring applications requiring a 1-8 threaded fastener with a shouldered base.

Installation Notes

Installation should be performed by a qualified rigger or industrial maintenance technician familiar with applicable ASME B30 rigging standards. Power down or de-energize any equipment in the work area before installing or removing lifting hardware. Thread engagement should meet or exceed manufacturer and applicable code minimums for the base material. Fixed eye bolts must be loaded in-line with the shank axis only — off-axis or angular loading is not rated for this fixed-type design.
