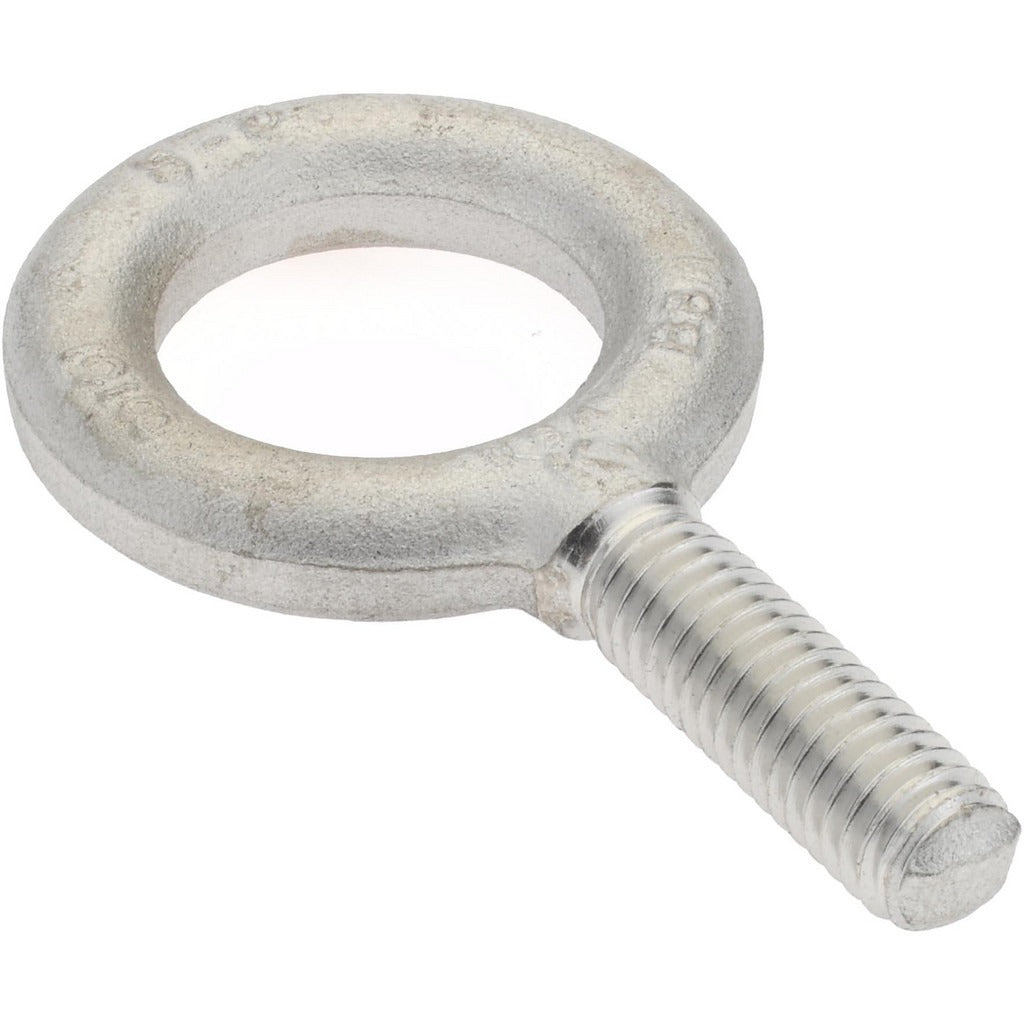

Gibraltar PSS13631GB Fixed Eye Bolt 1160 Lb 3/8-16 304 Ss

Product Description

The GIBRALTAR PSS13631GB is a fixed lifting eye bolt designed for overhead lifting and rigging applications where a reliable, corrosion-resistant anchor point is required. Built from Grade 304 stainless steel with full threading along a 1.25-inch shank, this eye bolt provides a rated lifting capacity of 1,160 pounds at a vertical (0-degree) angle. The 3/8-16 thread size allows for straightforward installation into tapped holes or with a matching nut. It is installed by riggers, millwrights, maintenance mechanics, and general tradespeople working in industrial, marine, and commercial environments where stainless steel is specified for corrosion resistance.

This eye bolt is suited for vertical straight-line lifting in residential, commercial, and light industrial settings. The without-shoulder design means it is threaded fully through the mounting surface and secured with a nut rather than seating against a shoulder base. Typical applications include hanging equipment, securing loads to overhead structures, and rigging setups where a permanent or semi-permanent attachment point is needed. The 304 stainless steel construction makes it appropriate for wet, humid, or mildly corrosive environments such as coastal installations, food processing areas, or pool mechanical rooms.

Key Features

• 1,160 lb vertical lifting capacity for reliable load-bearing performance
• Grade 304 stainless steel construction resists corrosion in wet and humid environments
• Fully threaded 1.25-inch shank for secure through-hole installation with a nut
• 3/8-16 thread size for compatibility with standard tapped fittings and hardware
• Without-shoulder design allows flush mounting through panels and structural members
• 1-inch inside eye diameter provides clearance for hooks, shackles, and rigging hardware

Compatibility

Designed as an OEM-style fixed lifting eye bolt for use with standard 3/8-16 threaded hardware and rigging assemblies in applications requiring Grade 304 stainless steel fasteners.

Installation Notes

Installation should be performed by a qualified rigger or mechanic familiar with lifting hardware standards and applicable ASME B30 rigging guidelines. Always thread the eye bolt fully and secure with an appropriate nut torqued to the mounting surface before applying any load. This eye bolt is rated for straight vertical lifting only — angular loading significantly reduces safe working load and must be accounted for per applicable rigging charts. Inspect the eye bolt and all rigging components for damage or corrosion before each use.
