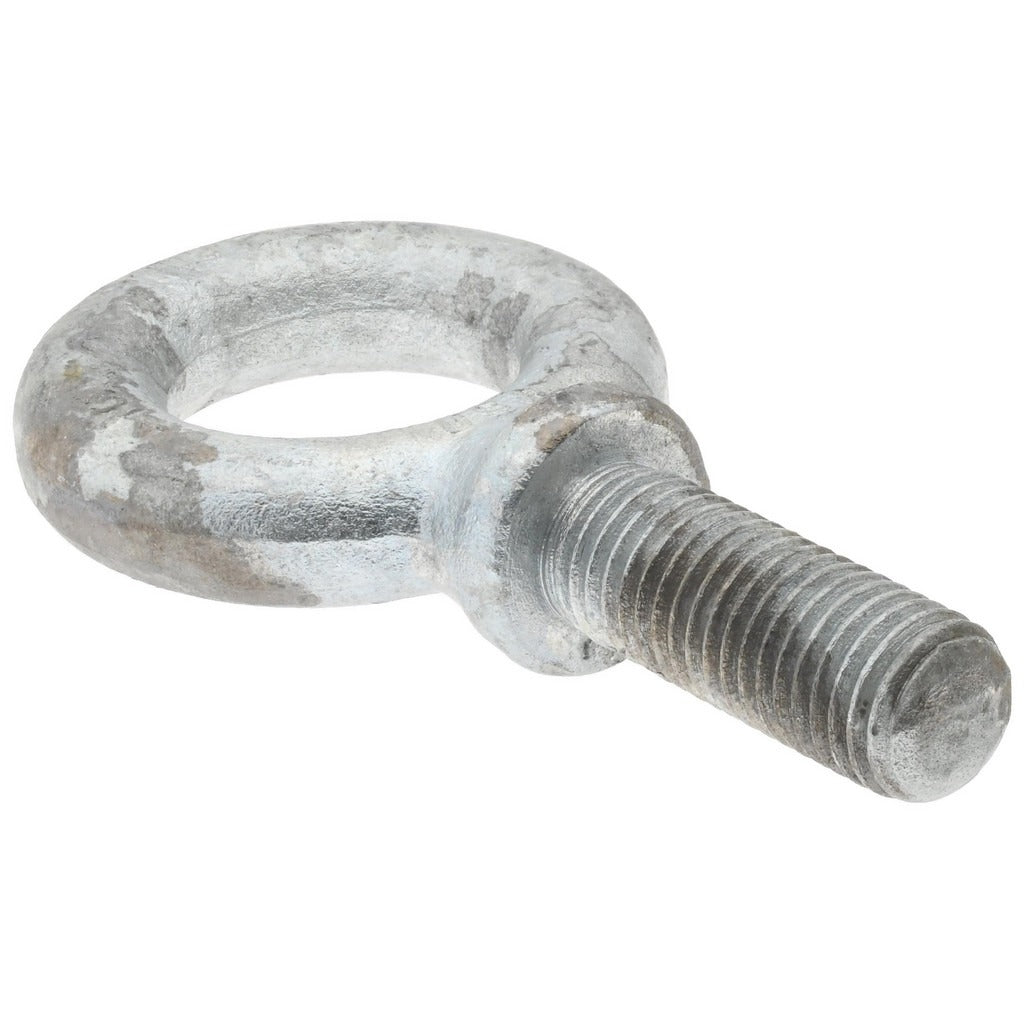

Gibraltar PHG14672GB Fixed Shoulder Eye Bolt 5000 Lb

Product Description

The GIBRALTAR PHG14672GB is a fixed lifting eye bolt with shoulder, manufactured from Grade 1030 steel with a galvanized finish for corrosion resistance. Rated at 5,000 lb lifting capacity, this bolt features a 3/4-10 thread size with full threading along its 2.5-inch thread length and a 2-inch shank. The shouldered base design distributes load across the mounting surface, making it suited for vertical and in-line lifting applications in industrial, mechanical, and construction settings. Riggers, millwrights, and maintenance mechanics typically install this hardware as part of rigging and material handling systems.

This eye bolt is intended for use in straight-line, vertical lifting where the load is applied in-line with the bolt axis. The fixed eye design does not swivel, so it is best applied in dedicated lift points where the load direction does not change. It fits installations requiring a 3/4-10 threaded connection with a shouldered base for flush, stable seating against a structural surface. The galvanized finish makes it suitable for moderately corrosive or outdoor environments.

Key Features

• 5,000 lb rated lifting capacity for heavy-duty rigging applications
• Grade 1030 steel construction provides consistent tensile strength
• Galvanized finish for corrosion resistance in outdoor or humid environments
• Shouldered base with 1.5625-inch diameter for stable load distribution against mounting surface
• Fully threaded shank with 3/4-10 thread size and 2.5-inch thread engagement length
• Eye inside diameter of 1.46875 inches accommodates standard rigging hooks and shackles

Compatibility

Designed as a standard fixed shoulder eye bolt for use in rigging, lifting, and material handling applications requiring a 3/4-10 threaded connection and a 5,000 lb rated capacity.

Installation Notes

Installation should be performed by qualified riggers or maintenance mechanics familiar with ASME B30.26 and applicable rigging standards. Always thread the bolt fully to seat the shoulder flush against the mounting surface before applying any load. Never side-load a fixed eye bolt, as off-axis loading can significantly reduce the rated capacity and create a failure hazard. Inspect the eye, shank, and threads for deformation or corrosion before each use.
