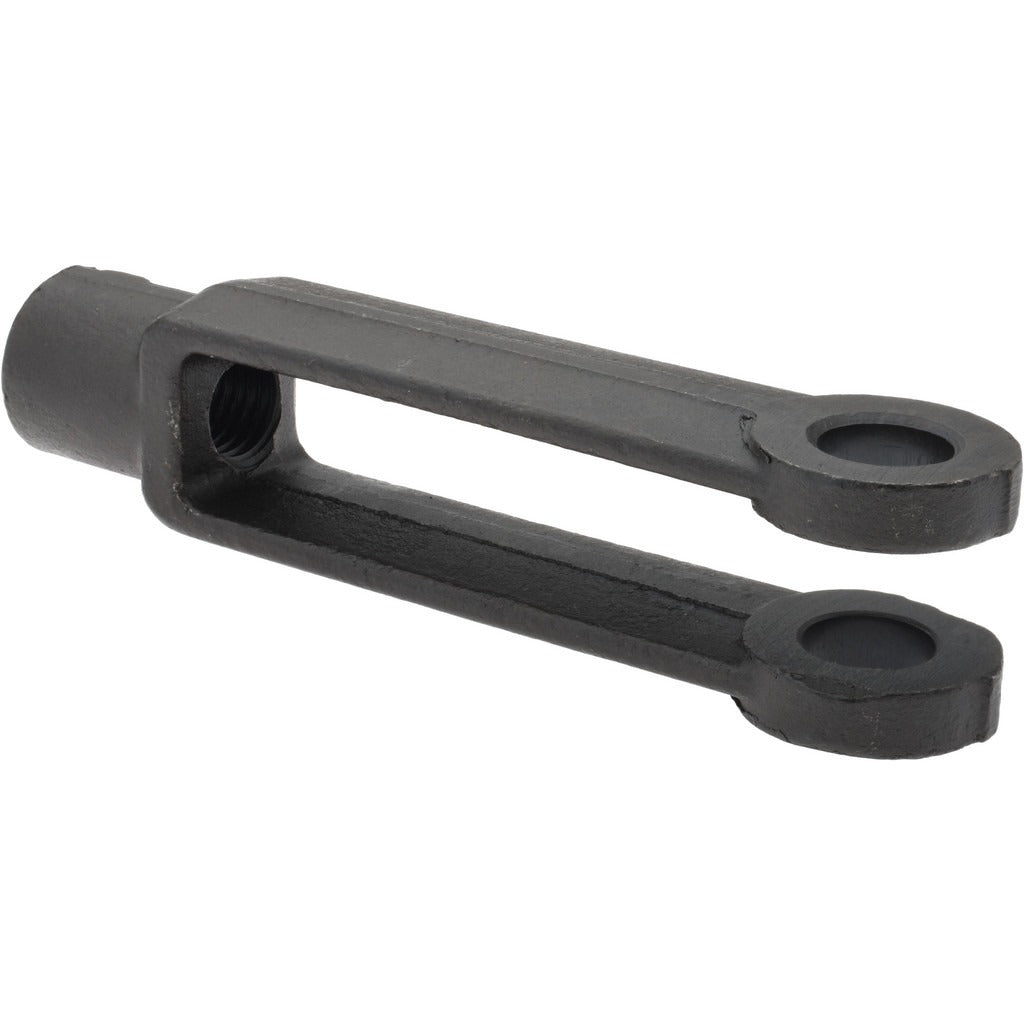

Gibraltar P69137-10BGB Tapped Yoke 3/4-10 Thread

Product Description

The GIBRALTAR P69137-10BGB is a tapped yoke fitting used in mechanical linkage and structural clamping applications across HVAC, plumbing, and general mechanical trade work. It is machined from carbon steel for durability under load and features a 3/4-10 unified coarse thread for positive engagement with standard threaded rod or clevis pins. The yoke measures 1-5/8 inches in width and carries an overall length of 6-1/16 inches. A 3/4-inch hole diameter through the yoke arms accepts a standard clevis pin or bolt, making this a direct-fit component in push-pull rod assemblies and vibration-isolation linkages.

This tapped yoke is suited for residential and light commercial mechanical systems where a reliable end-link connection is required on threaded rod assemblies. Common applications include HVAC equipment hanger rod terminations, pipe support linkages, and equipment mounting frames. The 4-9/16-inch hole-center-to-neck dimension and 1-7/16-inch yoke arm height provide adequate clearance for typical pin and bolt configurations found in these systems. Tradespeople working with spring hangers, seismic bracing, or equipment vibration isolators will find this a standard replacement or new-installation component.

Key Features

• 3/4-10 unified coarse thread for engagement with standard threaded rod stock
• Carbon steel construction for load-bearing durability
• 1-5/8-inch yoke width accommodates standard clevis pin and bolt sizes
• 3/4-inch hole diameter through yoke arms for pin or bolt pass-through
• 6-1/16-inch overall length suits a range of rod-end and linkage configurations
• 1-1/4-inch neck diameter with 1-1/2-inch neck length for positive rod engagement

Compatibility

Designed as an OEM-style replacement or new-installation tapped yoke for threaded rod assemblies using 3/4-10 thread in mechanical, HVAC, and structural support applications.

Installation Notes

Installation of this tapped yoke is typically performed by licensed HVAC technicians, pipefitters, or mechanical contractors. De-energize and de-load any assembly before removing or replacing a yoke component. Thread engagement should be verified to be full and even before placing the assembly back under load. Refer to applicable mechanical codes and equipment manufacturer guidelines for torque and load requirements.
