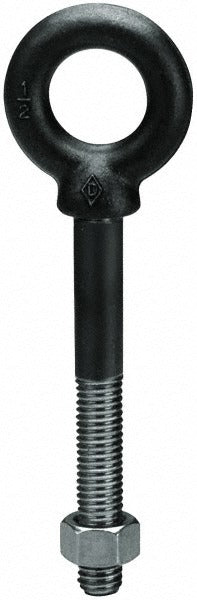

Gibraltar P15841GB Shoulder Lifting Eye Bolt 2100 Lb 1/2 in

Product Description

The GIBRALTAR P15841GB is a shoulder-style lifting eye bolt rated for 2,100 lb capacity, manufactured from C-1035 grade steel with a galvanized finish for corrosion resistance. The bolt features a 1/2-inch thread with 2 inches of partial threading and a 2-inch shank length. A machined shoulder at the base distributes load and helps prevent the eye from cocking under stress. Designed for overhead lifting, rigging, and load-securing applications, this eye bolt is suited for use by millwrights, maintenance mechanics, riggers, and contractors who require a reliable, standards-grade lifting point.

This shoulder eye bolt is appropriate for use in industrial maintenance, construction, and mechanical equipment rigging where a fixed, load-rated anchor point is required. The shoulder design makes it the correct choice when working with angular or off-center loads, as it is engineered to handle side loading better than plain-shank eye bolts. It is sized for standard 1/2-inch threaded holes and is commonly used in equipment handling, overhead rigging setups, and structural tie-off points across both commercial and industrial settings.

Key Features

• 2,100 lb lifting capacity for rated overhead and rigging use
• Shoulder design distributes load and resists angular pull
• C-1035 steel construction for strength and durability
• Galvanized finish provides corrosion protection in demanding environments
• Partially threaded shank with 2-inch thread length for secure engagement
• 1/2-inch thread size fits standard fastener hole patterns

Compatibility

Designed as an OEM-style replacement or direct-fit lifting point for applications requiring a 1/2-inch threaded shoulder eye bolt rated to 2,100 lb capacity.

Installation Notes

Installation should be performed by a qualified rigger, millwright, or maintenance professional familiar with applicable ASME B30.26 rigging hardware standards. Always thread the bolt fully to the shoulder and ensure the shoulder seats flush against the mounting surface before applying any load. Do not use this eye bolt for loads that exceed the rated capacity or in applications where shock loading is expected without appropriate derating. Power down or de-energize associated equipment before installing or removing lifting hardware on machinery.
