Gibraltar P14753GB Fixed Lifting Eye Bolt 21000 Lb

Product Description

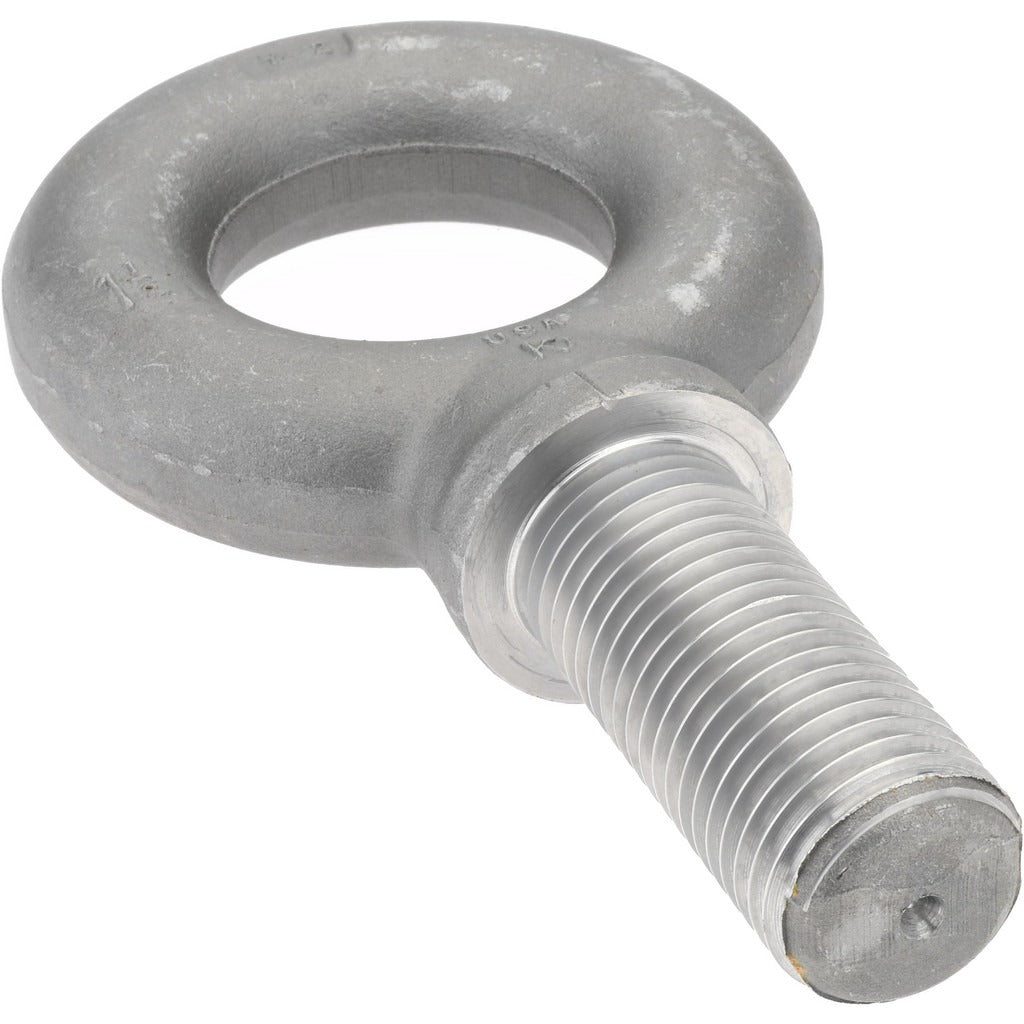

The GIBRALTAR P14753GB is a fixed lifting eye bolt with shoulder, designed for heavy-duty overhead lifting and rigging applications. Built from Grade 1030 steel, this eye bolt carries a rated lifting capacity of 21,000 pounds and features a 1-1/2-6 thread size with a fully threaded, 3.5-inch shank. The shoulder design seats firmly against the load surface to distribute stress evenly and prevent the eye from pulling through. At 7.77 pounds, this is a substantial forged hardware component intended for industrial and construction rigging work performed by qualified riggers and millwrights.

This eye bolt is suited for vertical and rigging-point applications in industrial facilities, construction sites, manufacturing plants, and heavy equipment service environments. The with-shoulder configuration is appropriate where the bolt passes through a plate or structural member and must bear against a flat bearing surface. It is installed by riggers, ironworkers, and maintenance mechanics who require a secure, load-rated anchor point for hoists, chain falls, and overhead lifting equipment.

Key Features

• 21,000 lb rated lifting capacity for heavy-load rigging applications
• Grade 1030 steel construction for high tensile strength
• With-shoulder design distributes load across bearing surface and prevents pull-through
• Fully threaded 3.5-inch shank with 1-1/2-6 thread for secure fastening
• 2.5-inch eye inside diameter accommodates large shackles and hooks
• Fixed eye orientation — load must be applied in line with the plane of the eye

Compatibility

Designed as an OEM-style fixed lifting eye bolt for use in heavy-duty rigging and overhead lifting setups requiring a 1-1/2-6 threaded anchor point with a shouldered base.

Installation Notes

Installation should be performed by a qualified rigger or millwright in accordance with applicable ASME B30.26 rigging hardware standards. Always ensure the mating tapped hole or nut engagement meets the full thread length requirement before applying load. Fixed eye bolts must be loaded in the plane of the eye only — angular loading significantly reduces rated capacity and must be avoided. Never exceed the rated working load limit marked or specified for this hardware.
