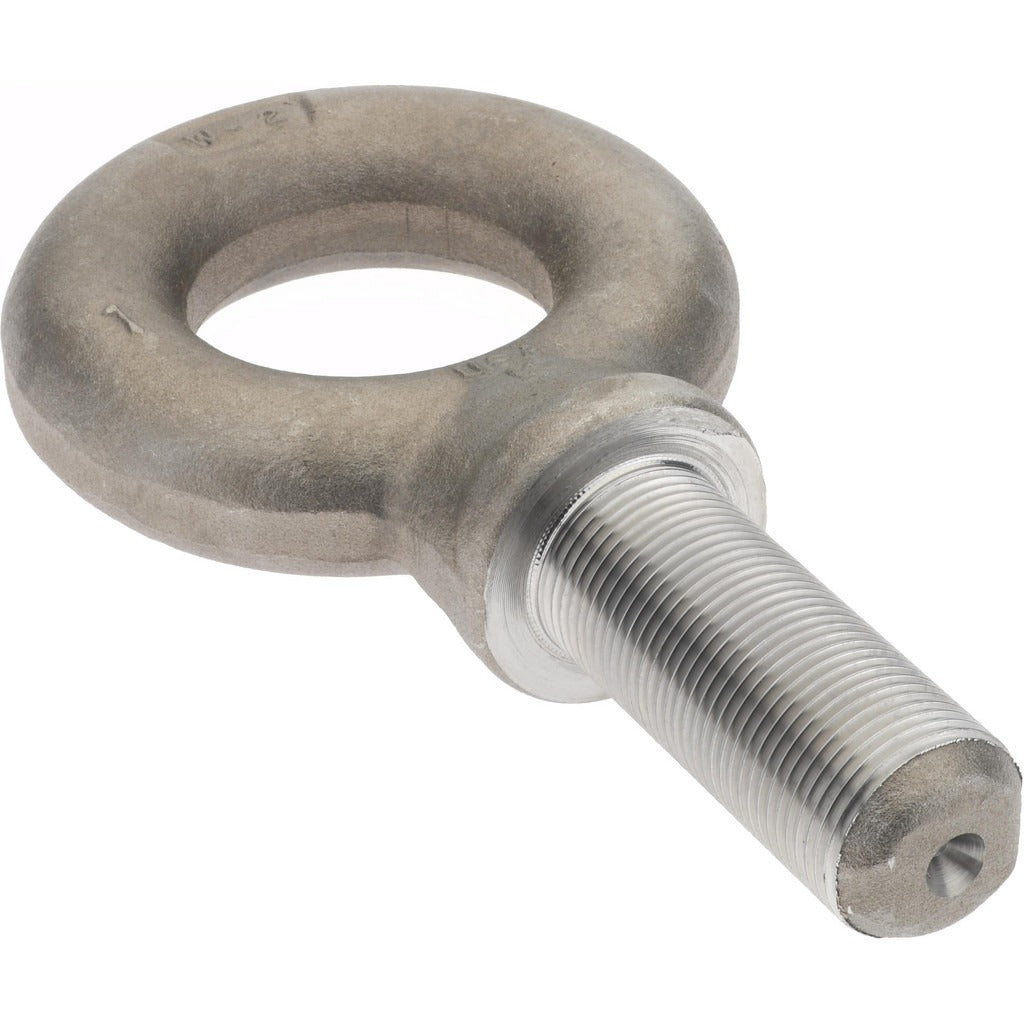

Gibraltar P14702UNFGB Fixed Lifting Eye Bolt 9000 Lb

Product Description

The GIBRALTAR P14702UNFGB is a fixed lifting eye bolt with a shoulder, designed for overhead lifting and rigging applications in industrial and commercial environments. Built from Grade 1030 steel, this eye bolt carries a rated lifting capacity of 9,000 pounds and features a 1-14 thread size with a fully threaded shank measuring 2.5 inches in length. The shoulder design provides a stable load-bearing base against the work surface, preventing the eye from pulling through under load. Millwrights, riggers, and maintenance technicians install this hardware when securing lifting points to machinery, structural members, or fabricated assemblies.

This fixed eye bolt is suited for straight-line vertical lifting where load alignment is controlled. The fully threaded 2.5-inch shank allows secure engagement into tapped holes in steel or heavy structural components. The shoulder seats flush against the mounting surface to distribute load and resist side-loading forces during lift operations. It is commonly specified in manufacturing plants, fabrication shops, construction sites, and equipment maintenance facilities where reliable, fixed lifting anchor points are required.

Key Features

• 9,000 pound rated lifting capacity for heavy-duty overhead rigging
• Grade 1030 steel construction for strength and durability
• Shoulder design seats against mounting surface to stabilize load and resist pull-through
• Fully threaded shank — 2.5 inches thread length on a 2.5-inch shank
• 1-14 thread size for secure engagement in standard tapped holes
• Eye inside diameter of 1-13/16 inches accommodates common shackles and hooks

Compatibility

Designed as a fixed, shoulder-style lifting eye bolt for use in tapped holes accepting a 1-14 thread. Suitable for steel structural members, machinery frames, and fabricated lifting fixtures where a permanent or semi-permanent vertical lift anchor point is required.

Installation Notes

Installation should be performed by a qualified rigger or millwright following applicable ASME B30.26 rigging hardware standards. Ensure the tapped hole is clean and that the full thread engagement is achieved before loading. The shoulder must seat fully and squarely against a flat, load-bearing surface before any lift is attempted. Never exceed the rated lifting capacity, and always inspect the eye bolt for deformation, thread damage, or corrosion before each use.
