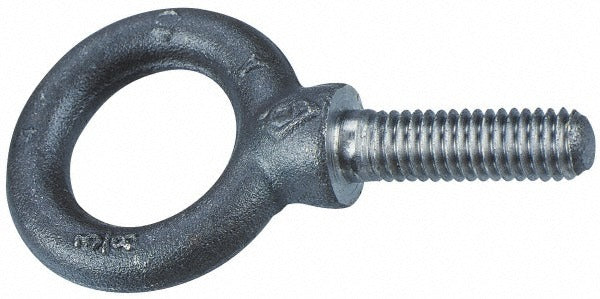

Gibraltar P14682LTGB Fixed Shoulder Eye Bolt 8800 Lb

Product Description

The GIBRALTAR P14682LTGB is a fixed lifting eye bolt with shoulder, designed for heavy-duty rigging and lifting applications. Built from Grade 8620 alloy steel, it delivers a rated lifting capacity of 8,800 pounds and features a fully threaded 7/8-inch shank. The shoulder design seats flush against the mounting surface to provide consistent load alignment. With a 2.25-inch shank length and 2.25-inch thread length, this eye bolt is suited for structural and industrial lifting setups. Licensed riggers and millwrights rely on this type of hardware in fabrication, construction, and material handling environments where reliable overhead lifting points are required.

This fixed eye bolt is intended for use in commercial and industrial lifting operations where a permanent or semi-permanent anchor point is needed. The with-shoulder configuration makes it appropriate for through-hole installations where the shoulder bears against the work surface to resist pull-through. It is commonly installed in steel structures, machinery frames, and rigging fixtures. The 7/8-inch thread size is a common industrial standard, making this part a straightforward fit in applications requiring that thread specification.

Key Features

• 8,800 lb rated lifting capacity for heavy-duty rigging use
• Grade 8620 alloy steel construction for high strength and toughness
• With-shoulder design seats against mounting surface for proper load transfer
• Fully threaded 7/8-inch shank, 2.25 inches in length
• Eye inside diameter of 1.6875 inches accommodates standard rigging hooks and shackles
• Eye outside diameter of 3.25 inches for compatibility with hooks and lifting hardware

Compatibility

Designed as an OEM-style fixed shoulder eye bolt for industrial and commercial rigging applications requiring a 7/8-inch thread size and 8,800 lb lifting capacity.

Installation Notes

Installation is typically performed by a licensed rigger or qualified millwright in accordance with ASME B30.26 and applicable OSHA rigging standards. Ensure the mounting structure is rated to handle the intended load before installation. Always verify thread engagement depth meets the minimum requirement for the rated capacity, and never side-load a fixed eye bolt beyond the manufacturer-rated angle limits. Inspect the eye bolt and surrounding structure for damage or wear before each use.
