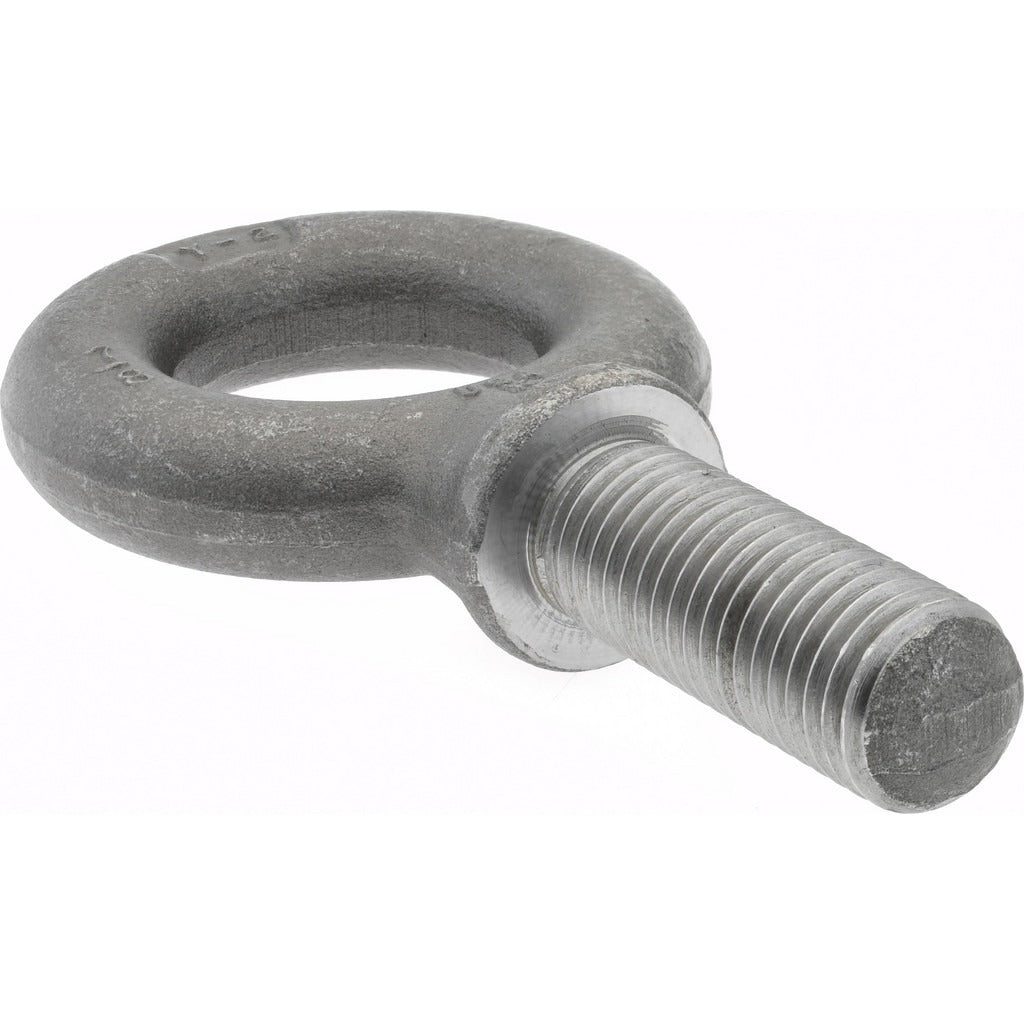

Gibraltar P14682GB Fixed Lifting Eye Bolt 7000 Lb 7/8-9

Product Description

The GIBRALTAR P14682GB is a fixed lifting eye bolt designed for rigging and overhead lifting applications in industrial and commercial environments. Featuring a shoulder design, this eye bolt accepts inline loads up to 7,000 pounds and is manufactured from Grade 1030 steel for dependable tensile strength. The bolt is fully threaded along its 2.25-inch shank, offering consistent thread engagement. The 7/8-9 thread size is a standard UNC specification, making hardware pairing straightforward. Riggers, millwrights, and maintenance mechanics typically install this type of fastener when attaching lifting points to machinery, structural members, or fabricated assemblies.

This eye bolt is suited for fixed-load vertical lifting in manufacturing facilities, warehouses, and heavy equipment maintenance settings. The shoulder bearing surface distributes load stress at the mounting face, which is critical when rigging loads directly overhead. The 1-11/16-inch inside eye diameter accommodates standard shackles and hooks commonly found in shop rigging kits. It is sold individually and is appropriate where a reliable, single-point overhead attachment is required.

Key Features

• 7,000 lb rated lifting capacity for heavy overhead load applications
• Shouldered base design transfers load stress evenly to the mounting surface
• Fully threaded 2.25-inch shank provides maximum thread engagement depth flexibility
• 7/8-9 UNC thread size matches standard industrial fastener tooling
• Grade 1030 steel construction for high tensile strength
• 1-11/16-inch inside eye diameter fits common shackles and rigging hooks

Compatibility

Designed as a standard fixed shoulder eye bolt for use in industrial lifting and rigging setups requiring a 7/8-9 UNC threaded attachment point with a 7,000 lb vertical load rating.

Installation Notes

Installation should be performed by a qualified rigger or millwright familiar with applicable ASME B30 rigging standards. Thread the bolt fully until the shoulder seats flush and tight against the mounting surface before applying any load. Never apply angular or side loads to a fixed eye bolt not rated for them, as this can significantly reduce safe working capacity. Inspect threads and the eye for deformation or wear before each use.
