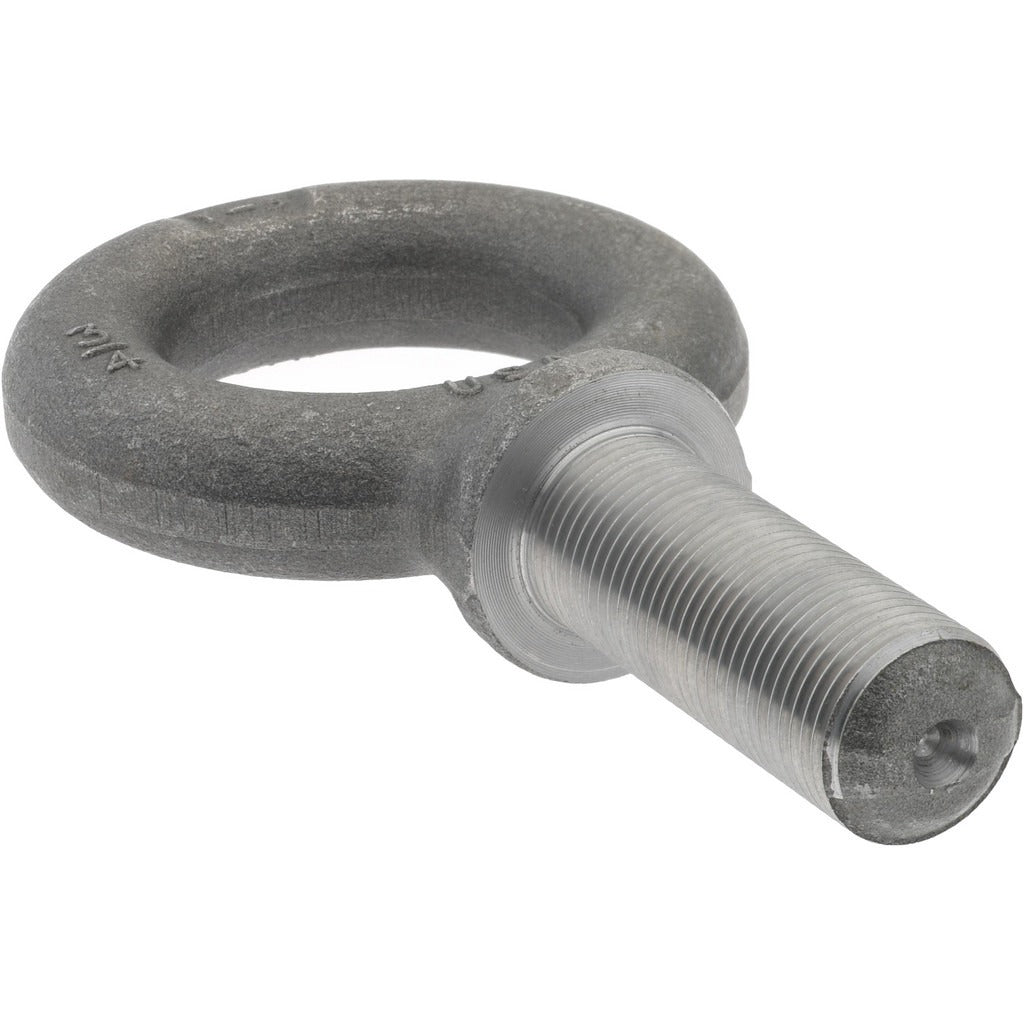

Gibraltar P14672UNFGB Fixed Lifting Eye Bolt 5000 Lb

Product Description

The GIBRALTAR P14672UNFGB is a fixed lifting eye bolt with shoulder, designed for overhead lifting and rigging applications in industrial and construction environments. It carries a 5,000 lb lifting capacity and features a 3/4-16 unified fine thread with a fully threaded 2-inch shank. Constructed from Grade 1030 steel, this eye bolt delivers the tensile strength required for demanding load-handling tasks. The shoulder design distributes load stress at the base, which is essential when the bolt is used in angled or in-line lifting configurations. Rigging crews, millwrights, and maintenance mechanics install this type of hardware as a fixed anchor point on machinery, structural members, and equipment frames.

This eye bolt is suited for use in manufacturing facilities, warehouses, and job sites where a reliable, fixed anchor point is needed for hoist rings, chain slings, wire rope, or shackles. The 1-1/2-inch inside eye diameter accommodates standard hook and shackle hardware. With fully threaded engagement along the 2-inch shank, it can be secured through a tapped hole or with a nut and washer against a structural surface. It is appropriate for both in-line and limited-angle lifting, with the shouldered base providing the necessary seating surface for proper load transfer.

Key Features

• 5,000 lb lifting capacity for heavy-duty rigging and hoisting tasks
• Shouldered base provides positive seating and load distribution at the mounting surface
• Fully threaded 2-inch shank with 3/4-16 unified fine thread for secure engagement
• Grade 1030 steel construction for high tensile strength
• 1-1/2-inch inside eye diameter compatible with standard hooks, shackles, and slings
• Fixed eye orientation for consistent in-line and limited-angle lifting setups

Compatibility

Designed as a direct-fit replacement or new-installation fixed lifting eye bolt for applications requiring a 3/4-16 threaded anchor point with a shouldered base on machinery, structural steel, or fabricated equipment frames.

Installation Notes

Installation should be performed by qualified rigging personnel or licensed mechanics familiar with applicable ASME B30 rigging standards. Always thread the bolt fully into the tapped hole until the shoulder seats flush and tight against the mounting surface before applying any load. De-energize, lock out, and tag out any associated equipment before installation or removal. Do not exceed the rated 5,000 lb lifting capacity, and inspect the eye bolt for deformation, corrosion, or thread damage before each use.
