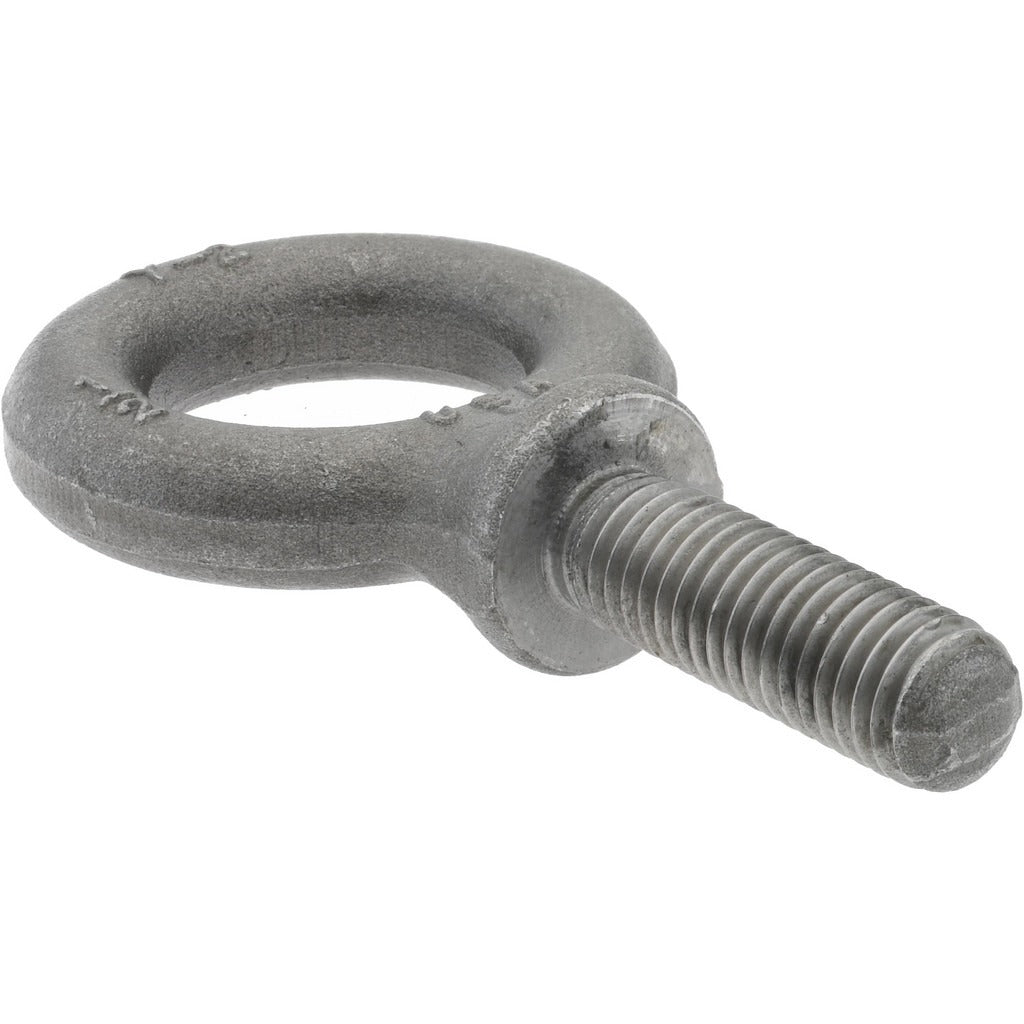

Gibraltar P14641GB Fixed Lifting Eye Bolt 2400 Lb 1/2-13

Product Description

The GIBRALTAR P14641GB is a fixed lifting eye bolt with shoulder, designed for overhead lifting and rigging applications in industrial and construction environments. Built from Grade 1030 steel, this bolt provides a rated lifting capacity of 2,400 pounds with a 1/2-13 thread size and a fully threaded shank measuring 1.5 inches in length. The shouldered base design ensures the load is transferred squarely to the mounting surface, reducing lateral stress during straight vertical lifts. This hardware is installed by millwrights, riggers, maintenance mechanics, and general contractors working with hoists, cranes, and lifting slings in both shop and field settings.

This eye bolt is suited for vertical lift points on machinery, structural members, fabricated assemblies, and equipment requiring fixed anchor points. The shoulder-style base provides positive seating against the mounting surface, making it appropriate for use in production facilities, warehouses, and job sites where a consistent, repeatable lift point is required. The 1/2-13 UNC thread is a standard coarse-thread specification compatible with common threaded holes and nuts in steel fabrications.

Key Features

• 2,400 pound lifting capacity rated for vertical overhead lift applications
• Shouldered base design transfers load directly to mounting surface for secure seating
• Fully threaded shank — 1.5 inches thread length allows full engagement in standard steel plate thickness
• 1/2-13 UNC coarse thread for compatibility with standard hardware
• Grade 1030 steel construction for strength in industrial lifting service
• Eye inside diameter of 1.1875 inches accommodates common hook and shackle hardware

Compatibility

Designed for use with standard 1/2-13 UNC threaded holes in steel structures, fabrications, and machinery. Compatible with lifting hooks, shackles, and slings sized for an eye inside diameter of 1.1875 inches and an eye outside diameter of 2.125 inches.

Installation Notes

Installation should be performed by qualified riggers or maintenance personnel familiar with ASME B30.26 and applicable lifting hardware standards. Always thread the bolt fully until the shoulder seats flush and firm against the mounting surface before applying any load. Never side-load a fixed eye bolt — this style is rated for vertical straight-line lifts only. Inspect threads and the eye for deformation or wear before each use and remove from service if damage is found.
