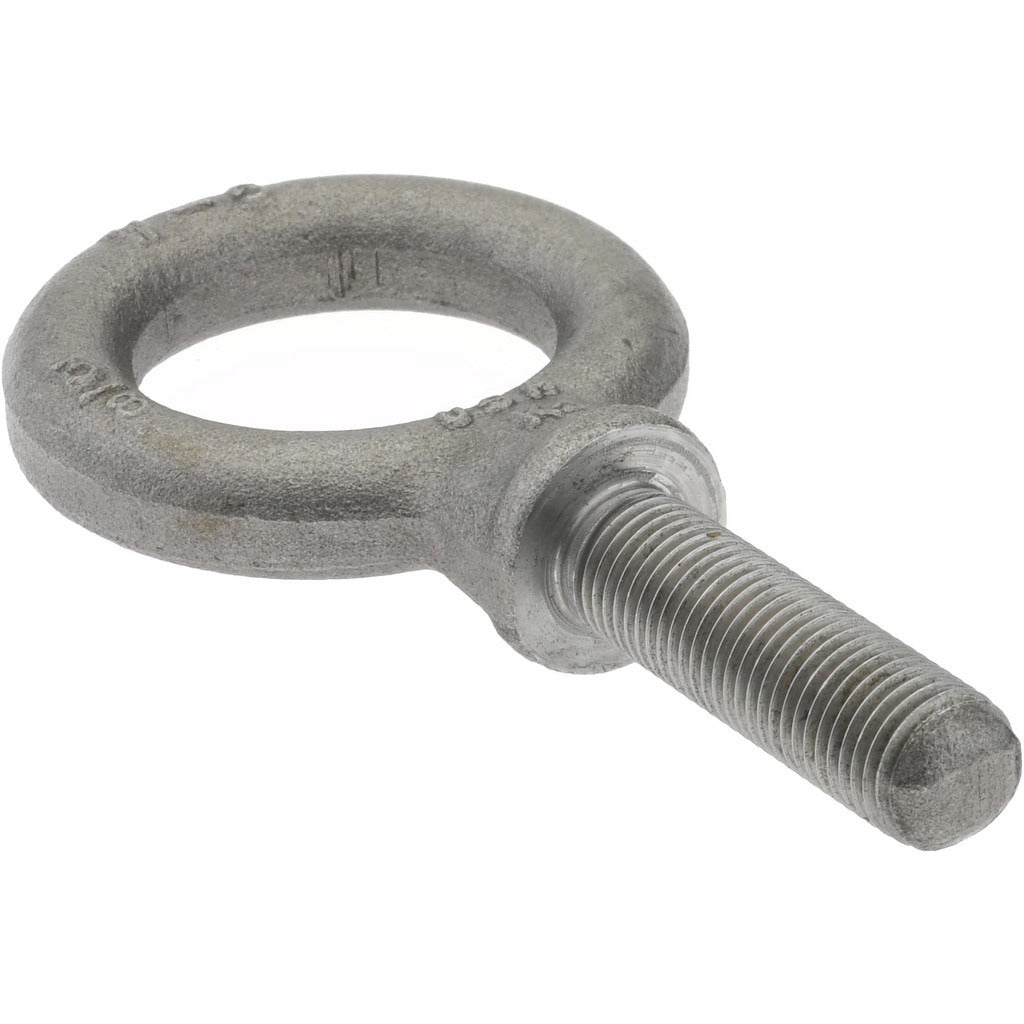

Gibraltar P14631UNFGB Fixed Shoulder Eye Bolt 1300 Lb

Product Description

The GIBRALTAR P14631UNFGB is a fixed lifting eye bolt with a shoulder base, designed for use in overhead lifting, rigging, and load-securing applications. It is constructed from Grade 1030 steel and features a 3/8-24 thread with a fully threaded shank measuring 1.25 inches in length. The shoulder base seats flush against the work surface to help distribute load stress and prevent the bolt from pulling through. Rated at 1,300 lb lifting capacity, this eye bolt suits a wide range of industrial and mechanical lifting setups where a fixed, non-swivel attachment point is required. Installation is straightforward and does not require special tooling beyond standard hand tools.

This eye bolt is suited for use in manufacturing facilities, rigging assemblies, machinery mounting, and general industrial applications requiring a reliable fixed lift point. Its inch-system threading and shoulder-style base make it compatible with standard hardware and structural attachment points found in commercial and industrial environments. It is sold individually and is appropriate for professional tradespeople, maintenance technicians, and riggers working within rated load specifications.

Key Features

• 1,300 lb lifting capacity for overhead and rigging use
• Shoulder base distributes load and provides a positive seating surface
• Fully threaded shank, 1.25 inches long, with 3/8-24 thread size
• Grade 1030 steel construction for reliable mechanical strength
• Eye inside diameter of 1 inch accommodates standard hooks and shackles
• Eye outside diameter of 1.6875 inches; shoulder/base diameter of approximately 0.656 inches

Compatibility

Designed as a fixed shoulder eye bolt for use in standard inch-system threaded applications requiring a 3/8-24 fastener thread. Confirm load rating and thread engagement depth before installation in any lifting or rigging assembly.

Installation Notes

Installation should be performed by a qualified rigger or maintenance technician familiar with applicable ASME B30 rigging standards and local safety regulations. Ensure the shoulder base seats fully and squarely against the mounting surface before applying any load. The eye bolt should be used only for in-line axial loading when installed as a fixed type — angular loading significantly reduces rated capacity. Inspect threads and the eye for deformation or wear before each use and never exceed the rated 1,300 lb lifting capacity.
