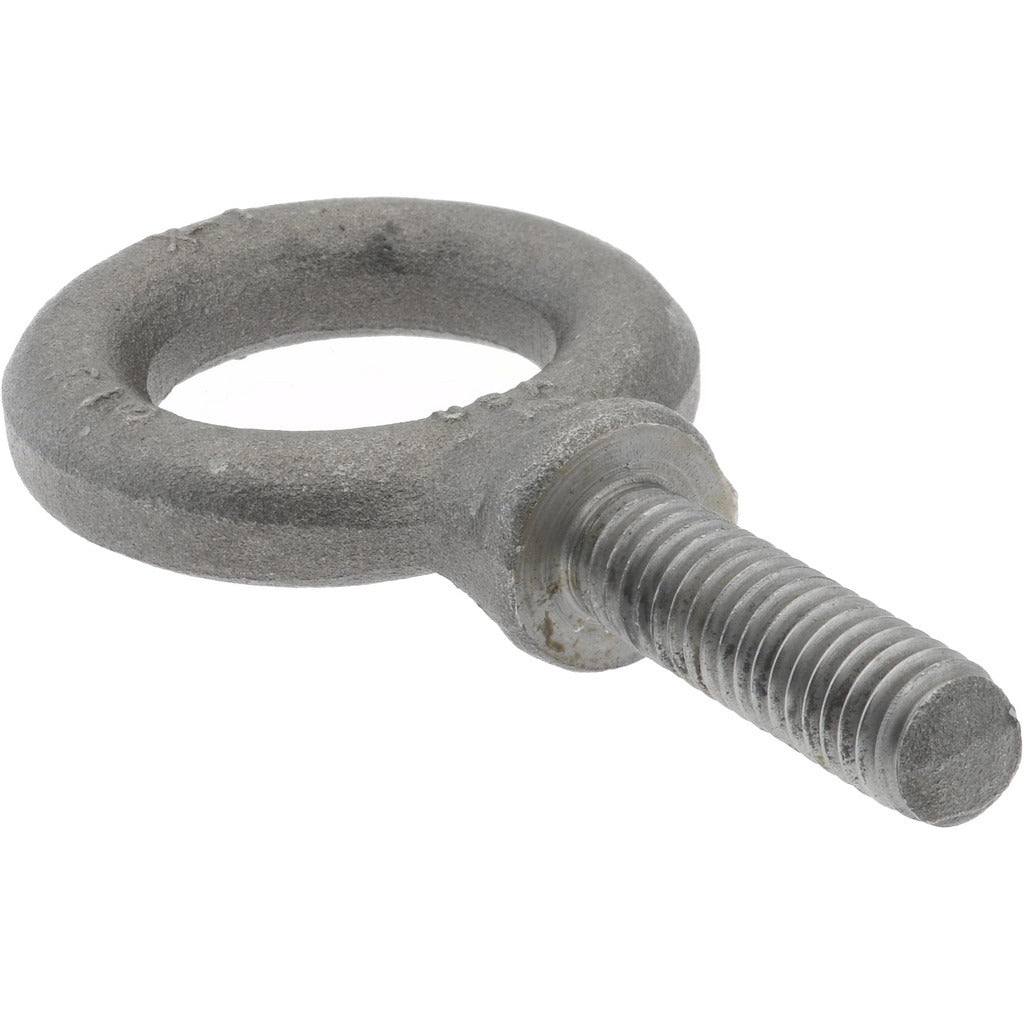

Gibraltar P14631GB Fixed Shoulder Eye Bolt 1300 Lb 3/8-16

Product Description

The GIBRALTAR P14631GB is a fixed lifting eye bolt with a shoulder base, designed for overhead lifting and rigging applications in industrial and construction environments. It carries a 1,300 lb lifting capacity and features a 3/8-16 fully threaded shank measuring 1.25 inches in length. Constructed from Grade 1030 steel, this eye bolt delivers the structural integrity required for repeated load-bearing use. The shoulder base seats flush against the mounting surface to distribute load and resist angular pull. Licensed riggers, millwrights, and maintenance mechanics are the typical installers in shop, plant, and field settings.

This fixed eye bolt suits static, vertical-pull lifting points on machinery, structural members, and equipment frames. The 3/8-16 thread is a common size found across light industrial and MRO applications. The fully threaded shank allows installation depth to be adjusted with a nut or threaded insert depending on the mounting substrate. It is not rated for angular or side-load lifting without a swivel-style fitting. Applications include rigging anchor points, hoist attachment hardware, and equipment tie-down anchor installation in facilities maintenance and light manufacturing environments.

Key Features

• 1,300 lb lifting capacity for light-duty overhead rigging and load-bearing anchor use
• Shoulder base distributes load and provides a positive seating surface against the mounting face
• Fully threaded 1.25-inch shank with 3/8-16 thread for broad fastener compatibility
• Grade 1030 steel construction for consistent mechanical strength in standard load conditions
• 1-inch inside eye diameter provides clearance for hooks, shackles, and rigging hardware
• Fixed eye design suited to vertical-pull, in-line load applications

Compatibility

Designed as a standard 3/8-16 threaded lifting eye bolt suitable for use wherever a fixed shoulder eye bolt with a 1,300 lb capacity rating and Grade 1030 steel construction is specified.

Installation Notes

Installation should be performed by a qualified rigger or mechanical tradesperson familiar with applicable ASME B30.26 rigging hardware standards. Ensure the mounting substrate provides sufficient thread engagement and structural capacity to support the rated load before applying any lift. Do not use this fixed eye bolt for angular loads without appropriate de-rating per manufacturer guidance. Inspect the eye and threads for damage before each use and remove from service if deformation or cracking is observed.
