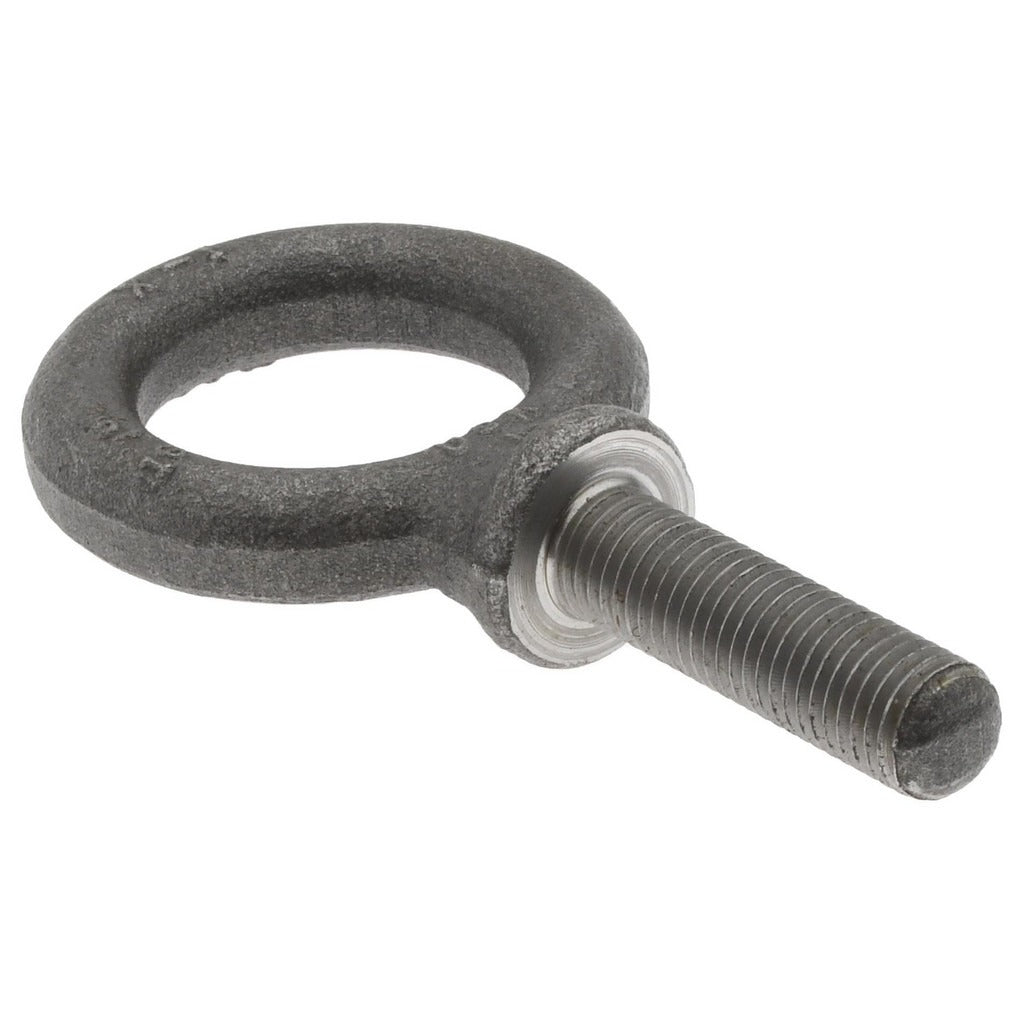

Gibraltar P14621UNFGB Fixed Lifting Eye Bolt 900 Lb

Product Description

The GIBRALTAR P14621UNFGB is a fixed lifting eye bolt with a shoulder, designed for overhead lifting and load-securing applications. Built from Grade 1030 steel, this eye bolt handles a working load capacity of 900 pounds and features a fully threaded 5/16-24 shank measuring 1.125 inches in length. The shoulder design provides a positive stop against the work surface, ensuring consistent load transfer and reducing the risk of the bolt pulling through the mounting surface under tension. Licensed riggers, millwrights, and maintenance mechanics install this type of hardware in industrial, commercial, and mechanical system service settings.

This eye bolt is suited for fixed-angle vertical lifting applications. The shoulder style is appropriate when the mounting surface requires a bearing face to distribute load forces. It is used in equipment rigging, machinery positioning, and component lifting tasks where a threaded attachment point is needed. The 5/16-24 thread pitch is a fine-thread specification, making it appropriate for use in harder materials or applications where thread engagement strength is a priority.

Key Features

• 900 lb rated lifting capacity for vertical fixed-angle rigging
• With-shoulder design seats flush against mounting surface for controlled load bearing
• Fully threaded 1.125-inch shank in 5/16-24 fine-thread specification
• Grade 1030 steel construction for strength in standard industrial environments
• Eye inside diameter of 0.875 inches accommodates standard hooks and shackles
• Eye outside diameter of 1.4375 inches and shoulder base diameter of 0.59375 inches

Compatibility

Designed for use in any application requiring a 5/16-24 threaded fixed lifting eye bolt with a shoulder. Suitable for use with standard rigging hardware sized for an eye inside diameter of 0.875 inches.

Installation Notes

Installation should be performed by a qualified rigger or maintenance professional familiar with applicable rigging standards and load ratings. Ensure the receiving thread in the mounting material is clean and in good condition before installation. The shoulder must seat fully and squarely against the mounting surface before load is applied. Never exceed the rated working load capacity, and do not use fixed eye bolts for angular loads unless the rated capacity has been appropriately derated per applicable rigging guidelines.
