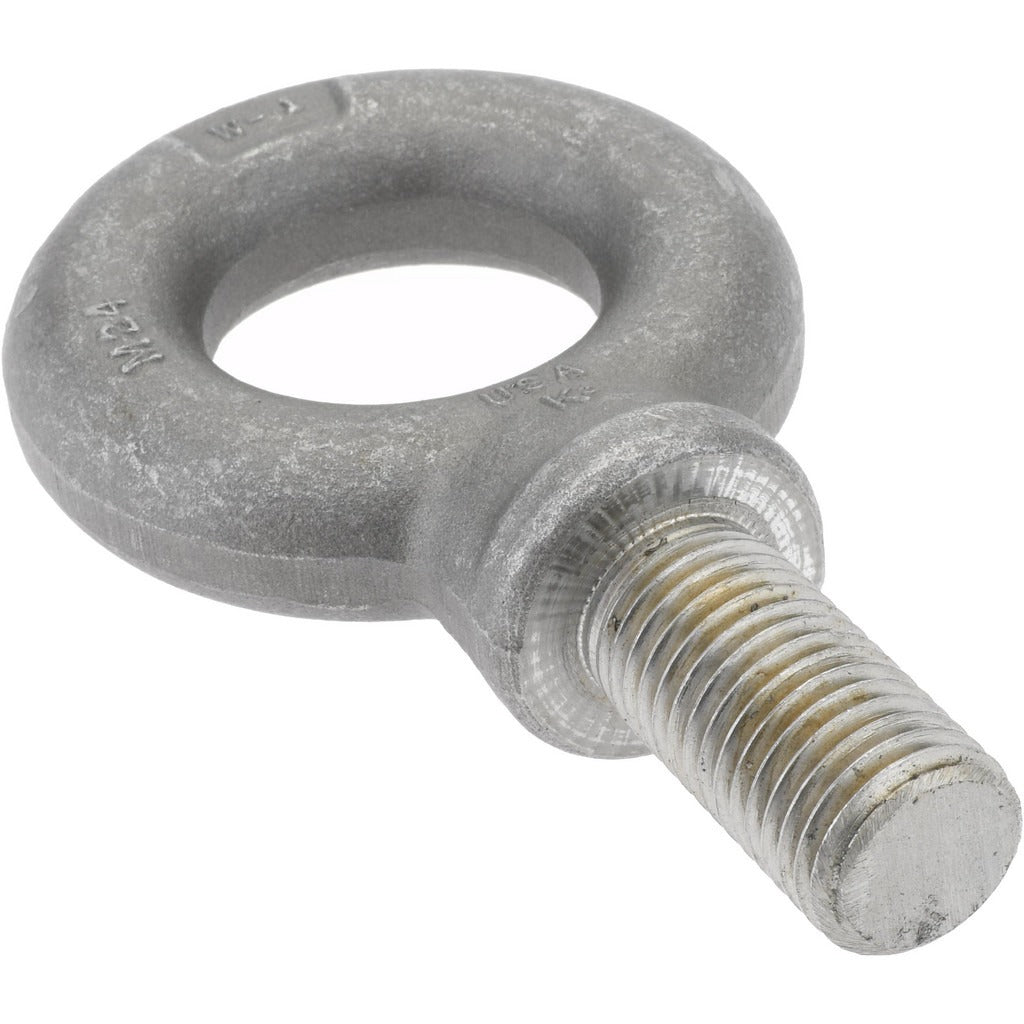

Gibraltar P14024MGB Fixed Lifting Eye Bolt M24 X 3.00

Product Description

The GIBRALTAR P14024MGB is a fixed lifting eye bolt with shoulder, designed for rigging and overhead lifting applications in industrial and commercial environments. Manufactured from Grade 1030 steel, it carries a rated lifting capacity of 8,485 pounds (3,850 kilograms). The fully threaded shank uses an M24 x 3.00 metric thread, making it compatible with metric hardware systems. This type of hardware is typically installed and inspected by qualified riggers or maintenance millwrights working in manufacturing, construction, or heavy equipment service settings.

This eye bolt is suited for vertical in-line lift applications where a fixed, shouldered configuration is required. The shoulder design seats flush against the mating surface, providing a stable load-bearing interface and reducing the risk of shank bending under rated load. It is intended for use with hoists, shackles, slings, and other overhead rigging hardware in metric-fastener environments.

Key Features

• Fixed eye bolt configuration with shoulder for stable vertical lifting
• Rated lifting capacity of 8,485 pounds (3,850 kg)
• M24 x 3.00 fully threaded shank for metric compatibility
• Grade 1030 steel construction for load-bearing durability
• Eye inside diameter of 46.00 mm for hook and shackle engagement
• Eye outside diameter of 90.40 mm; shank length of 48.00 mm; thread length of 47.00 mm

Compatibility

Designed as a metric-thread fixed shoulder eye bolt for use with standard M24 x 3.00 threaded holes in industrial rigging and lifting applications where Grade 1030 steel hardware meets the load and material requirements.

Installation Notes

Installation should be performed by a qualified rigger or maintenance professional familiar with overhead lifting hardware and applicable ASME B30 rigging standards. Ensure the threaded bore is clean and undamaged before installation, and thread the bolt to full engagement with the shoulder seated firmly against the mounting surface. Never use a fixed eye bolt for angular or side loading beyond manufacturer-rated limits. Inspect the eye bolt and all rigging components for wear, deformation, or corrosion before each lift.
