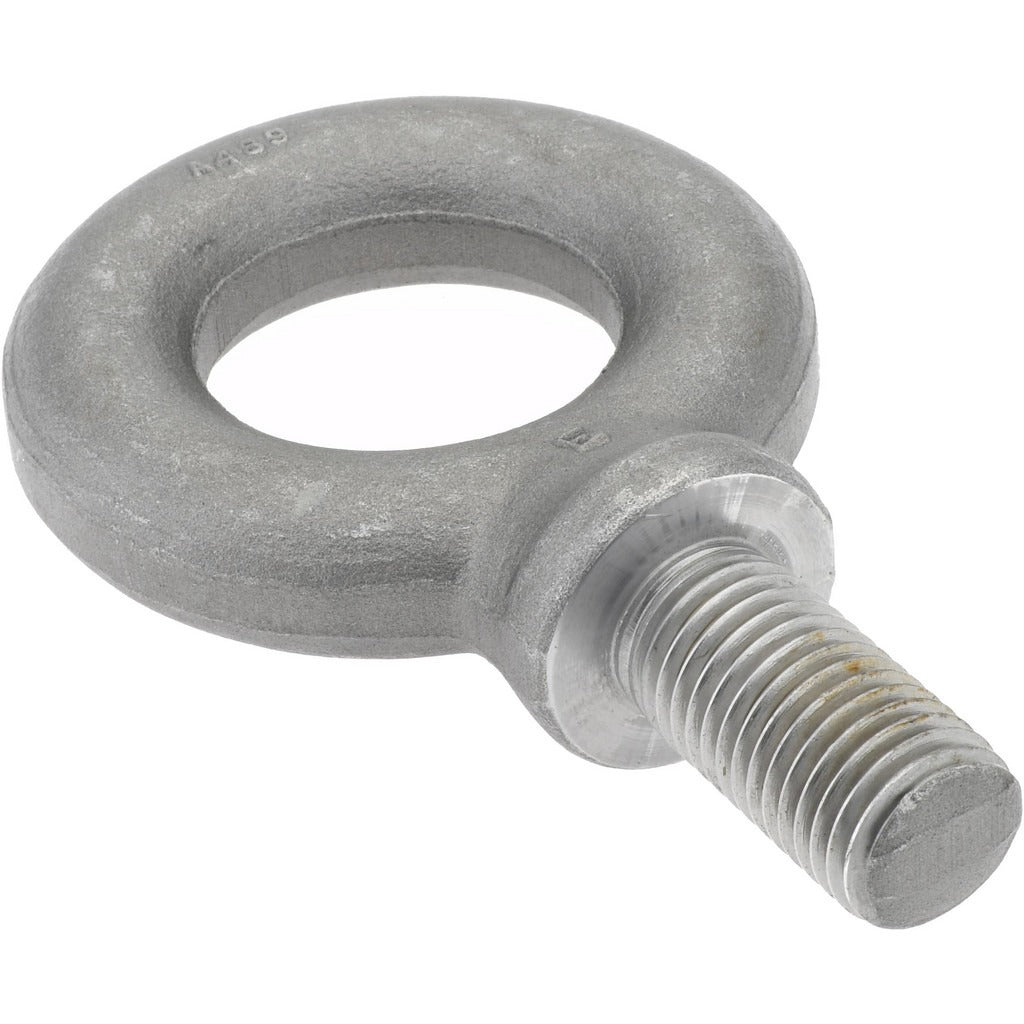

Gibraltar P14020MGB Lifting Eye Bolt 6300 Lb M20 X 2.50

Product Description

The GIBRALTAR P14020MGB is a fixed lifting eye bolt with shoulder, rated for a vertical lifting capacity of 6,300 pounds (2,860 kg). Machined from Grade 1030 steel, this metric eye bolt features a fully threaded shank with an M20 x 2.50 thread profile. The shoulder design distributes load at the fastener seat, making it appropriate for straight-line vertical lifts in rigging and material handling applications. The eye provides a secure connection point for shackles, hooks, or wire rope hardware. Installation and use should follow established rigging safety standards and applicable load rating guidelines.

This eye bolt is suited for industrial rigging, machinery positioning, and overhead lifting setups where a fixed anchor point is required. The metric thread sizing makes it compatible with metric-dimensioned equipment and fixtures common in manufacturing, fabrication, and heavy equipment maintenance environments. It is typically installed by millwrights, riggers, or maintenance technicians working with overhead hoists, cranes, or lifting slings.

Key Features

• 6,300 lb (2,860 kg) lifting capacity for demanding vertical lift applications
• Fully threaded shank for maximum thread engagement and secure seating
• With-shoulder design supports proper load transfer at the bearing surface
• M20 x 2.50 metric thread size for compatibility with metric-dimensioned fixtures
• Grade 1030 steel construction for strength in industrial rigging use

Compatibility

Designed as a fixed shoulder lifting eye bolt for use with standard M20 x 2.50 metric threaded connections in industrial rigging and material handling applications.

Installation Notes

Installation should be performed by qualified riggers or maintenance technicians familiar with overhead lifting hardware and applicable ASME B30 rigging safety standards. The threaded hole must be clean and undamaged, and the bolt should be fully seated with the shoulder flush against the load surface before any lift is attempted. Never side-load a fixed eye bolt beyond its rated angle capacity. Inspect the eye bolt and all connected hardware for wear, deformation, or corrosion before each use.
