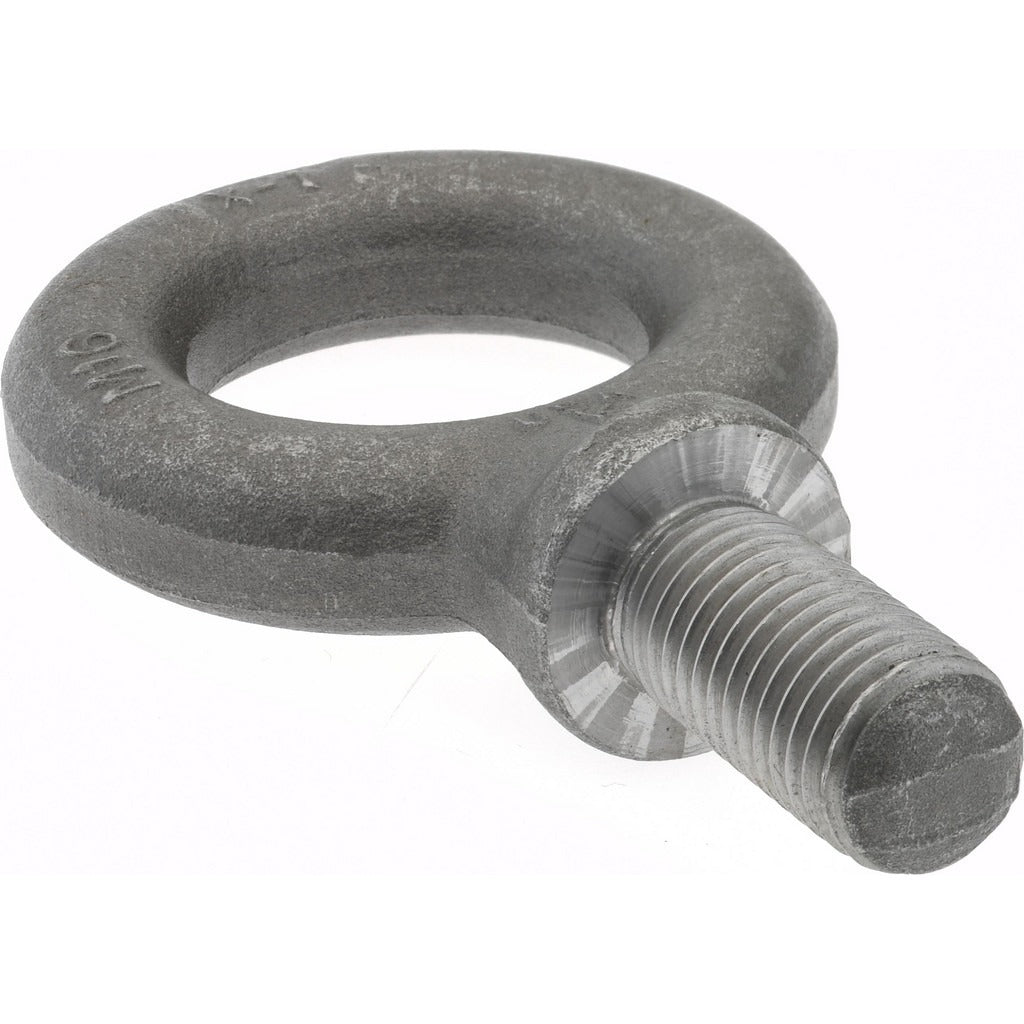

Gibraltar P14016MGB Fixed Lifting Eye Bolt M16 X 2.00

Product Description

The GIBRALTAR P14016MGB is a fixed lifting eye bolt with shoulder, designed for overhead lifting and rigging applications in industrial and commercial environments. Built from Grade 1030 steel, it carries a rated lifting capacity of 3,990 pounds (1,810 kilograms). The M16 x 2.00 metric thread is fully threaded along a 31 mm shank length, and the shoulder design keeps the bolt seated flush against the work surface to maintain load alignment during lifts. Riggers, millwrights, and maintenance mechanics install this type of hardware when attaching hoists, chains, or slings to machinery, structural steel, or equipment frames.

This eye bolt is suited for fixed-load vertical lifting where the load axis aligns directly with the bolt axis. The with-shoulder configuration is the correct choice when thread engagement into a tapped hole requires a positive stop surface to transfer shear load and prevent bolt walking under load. It is used in manufacturing plants, warehouses, and heavy-equipment service facilities where metric fastener standards are required.

Key Features

• 3,990 lb (1,810 kg) rated lifting capacity for fixed vertical loads
• M16 x 2.00 metric thread, fully threaded along entire shank
• With-shoulder design provides a positive seating surface and load stability
• Grade 1030 steel construction for strength in industrial rigging service
• Eye inside diameter of 35 mm accommodates standard hooks and shackles
• Eye outside diameter of 65 mm for clearance in confined attachment points

Compatibility

Designed for use in tapped M16 x 2.00 metric threaded holes. Intended as a fixed lifting point in applications where the load is applied along the bolt axis only. Consult applicable rigging standards before use at any angle other than vertical.

Installation Notes

Installation should be performed by a qualified rigger or maintenance mechanic familiar with applicable lifting hardware standards, including ASME B30.26 for rigging hardware. Ensure the tapped hole is clean and provides full thread engagement for the 31 mm threaded shank before applying any load. Never use a fixed eye bolt for angled loads; angular loading requires a swivel or hoist ring style fastener. Inspect the eye bolt for deformation, corrosion, or thread damage before each use.
