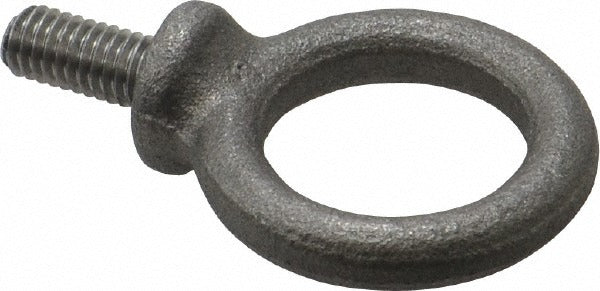

Gibraltar P14006MGB Lifting Eye Bolt 460 Lb M6 X 1.00

Product Description

The GIBRALTAR P14006MGB is a fixed lifting eye bolt designed for overhead load-handling applications in industrial and construction environments. Built from Grade 1030 steel, it features a shoulder design that helps distribute load forces along the shank, making it suitable for straight vertical lifts. The M6 x 1.00 metric thread is fully threaded along its 13 mm shank length. With a rated lifting capacity of 460 lb (210 kg), this eye bolt is installed by riggers, millwrights, and maintenance technicians wherever a reliable fixed lifting point is required.

This eye bolt is suited for light-to-medium duty rigging setups in manufacturing facilities, equipment maintenance operations, and structural installations. The with-shoulder configuration seats flush against the mating surface, helping prevent the eye from cocking under load. It is sized for M6 threaded receivers and is intended for vertical in-line lifting only, consistent with standard rigging practice for fixed eye bolts.

Key Features

• Fixed eye bolt with shoulder for improved load bearing and surface seating
• Rated lifting capacity of 460 lb (210 kg)
• M6 x 1.00 metric thread, fully threaded
• Grade 1030 steel construction for reliable strength
• Eye inside diameter of 19 mm for hook or shackle attachment
• Eye outside diameter of 30 mm

Compatibility

Designed as a fixed lifting eye bolt for use with M6 x 1.00 threaded anchor points in light-to-medium duty rigging and lifting applications.

Installation Notes

Installation is performed by qualified riggers or maintenance personnel following applicable ASME B30.26 and OSHA rigging standards. Always verify the threaded receiver is clean and undamaged before installation. This fixed eye bolt is rated for vertical in-line lifts only; angular loading reduces rated capacity and can result in failure. De-energize and lock out equipment before installing lifting points on machinery.
