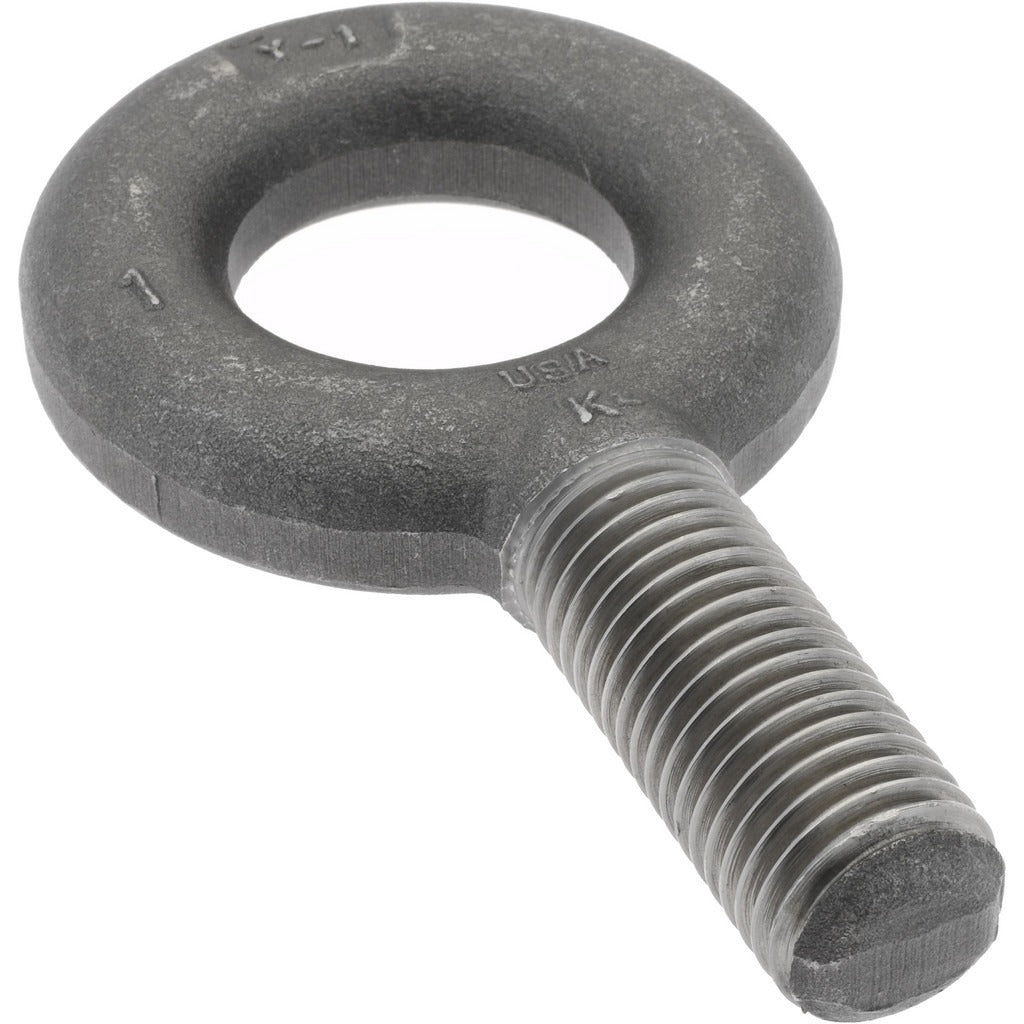

Gibraltar P13702GB Fixed Eye Bolt 9000 Lb 1-8 Thread

Product Description

The GIBRALTAR P13702GB is a fixed lifting eye bolt designed for demanding rigging and lifting applications in industrial, construction, and maintenance settings. Built from Grade 1030 steel and rated for a lifting capacity of 9,000 pounds, this eye bolt delivers reliable load-bearing performance where structural integrity is critical. It features a fully threaded shank of 2.5 inches with a 1-8 thread size. The without-shoulder design suits applications where a flush or direct-thread installation is required. Licensed riggers, millwrights, and maintenance mechanics are the primary installers of this hardware.

This eye bolt is suited for vertical and inline lifting tasks in industrial plants, fabrication shops, and construction sites. The fully threaded 1-8 shank allows secure engagement in tapped holes or with matching nuts across a range of structural assemblies. The without-shoulder configuration is appropriate where a shouldered base is not required by the rigging design. This part ships as a single unit and is intended for professional rigging use in compliance with applicable load-rating and safety standards.

Key Features

• 9,000 lb rated lifting capacity for heavy-duty rigging applications
• Grade 1030 steel construction for high tensile strength
• Fully threaded 2.5-inch shank with 1-8 thread size
• Without-shoulder design for direct-thread installations
• Eye inside diameter of 1-13/16 inches accommodates standard hooks and shackles
• Inch measurement system for compatibility with standard US hardware

Compatibility

Designed as an OEM-style fixed eye bolt for use in standard 1-8 threaded hole applications requiring a without-shoulder configuration and a minimum 9,000 lb load rating.

Installation Notes

Installation should be performed by a qualified rigger or maintenance mechanic familiar with applicable ASME B30 rigging standards. Always ensure the threaded hole or mating nut provides full thread engagement before applying any load. De-energize or isolate the load zone and inspect the eye bolt and all associated hardware for defects before each use. Never exceed the rated lifting capacity, and avoid side-loading a fixed eye bolt not designed for angular loads.
