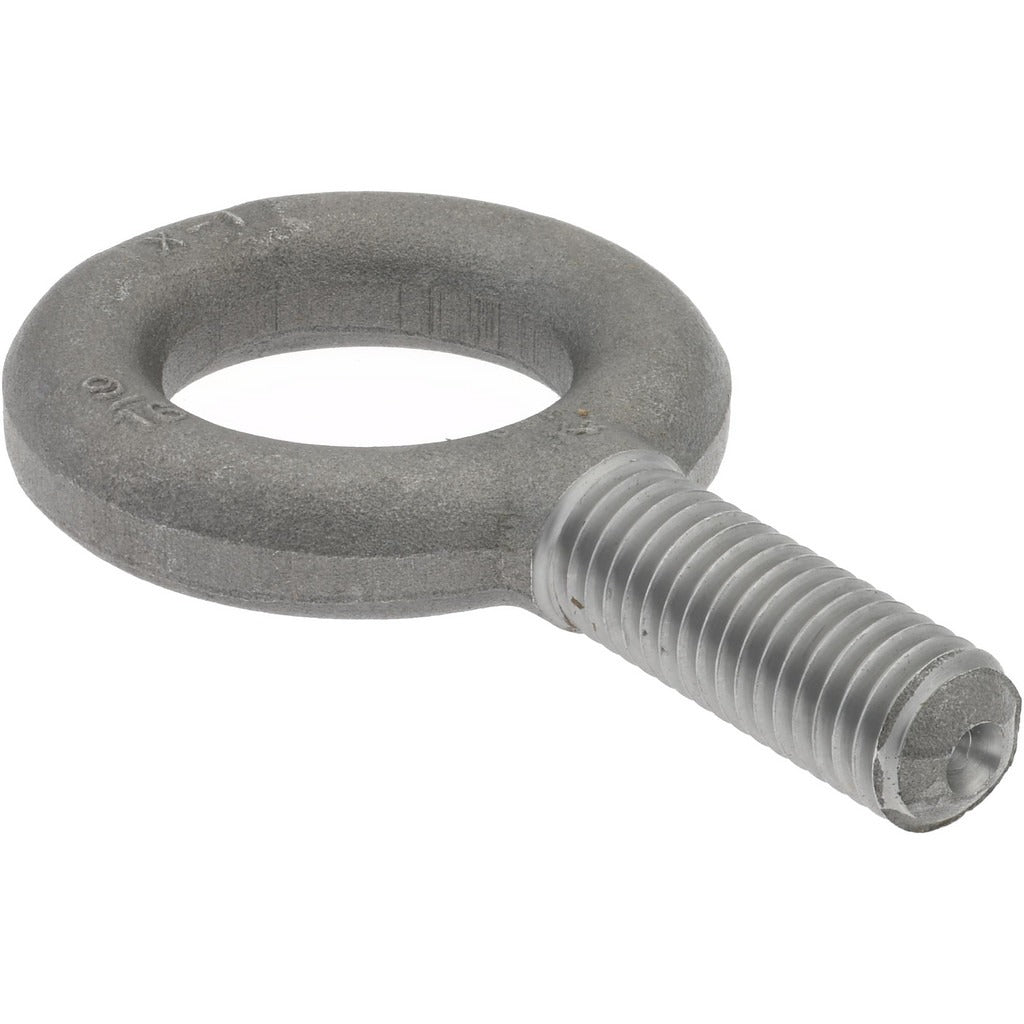

Gibraltar P13650GB Fixed Eye Bolt 3200 Lb 9/16-12

Product Description

The GIBRALTAR P13650GB is a fixed lifting eye bolt designed for overhead lifting and rigging applications in industrial and construction environments. This bolt features a without-shoulder design and a 9/16-12 thread size with full threading along the 1.625-inch shank. Rated at 3,200 pounds lifting capacity, it is manufactured from Grade 1030 steel, providing the tensile strength required for demanding load-bearing tasks. Licensed riggers, millwrights, and maintenance technicians use this hardware in conjunction with hooks, shackles, and slings for vertical and in-line lifting setups.

This eye bolt is suited for residential, commercial, and light industrial rigging where a fixed, shoulderless eye bolt is the specified hardware. Typical applications include machinery lifting, equipment positioning, and structural load points. The fully threaded shank allows for secure engagement into tapped holes or with standard nuts. It is sold individually and is appropriate wherever a 9/16-12 threaded eye bolt with a 3,200-pound working load limit is required by the job specification.

Key Features

• 3,200 pound lifting capacity for overhead and in-line rigging
• 9/16-12 thread size, fully threaded shank for maximum engagement depth
• Shank length of 1.625 inches with 1.75-inch thread length
• Eye inside diameter of 1.375 inches and eye outside diameter of 2.5625 inches for hook and shackle compatibility
• Grade 1030 steel construction for high tensile strength
• Fixed eye design provides a rigid, non-swiveling load point

Compatibility

Designed for use in applications requiring a 9/16-12 threaded fixed lifting eye bolt without shoulder. Intended for use with standard hooks, shackles, and lifting slings rated at or above the bolt working load limit.

Installation Notes

Installation should be performed by a qualified rigger or maintenance technician familiar with ASME B30.26 rigging hardware standards. Ensure the receiving tapped hole is clean, properly sized for 9/16-12 thread, and that the bolt is fully seated before applying any load. Fixed eye bolts without shoulders are rated for in-line vertical loading only — side loading or angular loading can significantly reduce safe working load and must be avoided. De-energize or safely isolate any connected equipment before beginning installation or removal.
