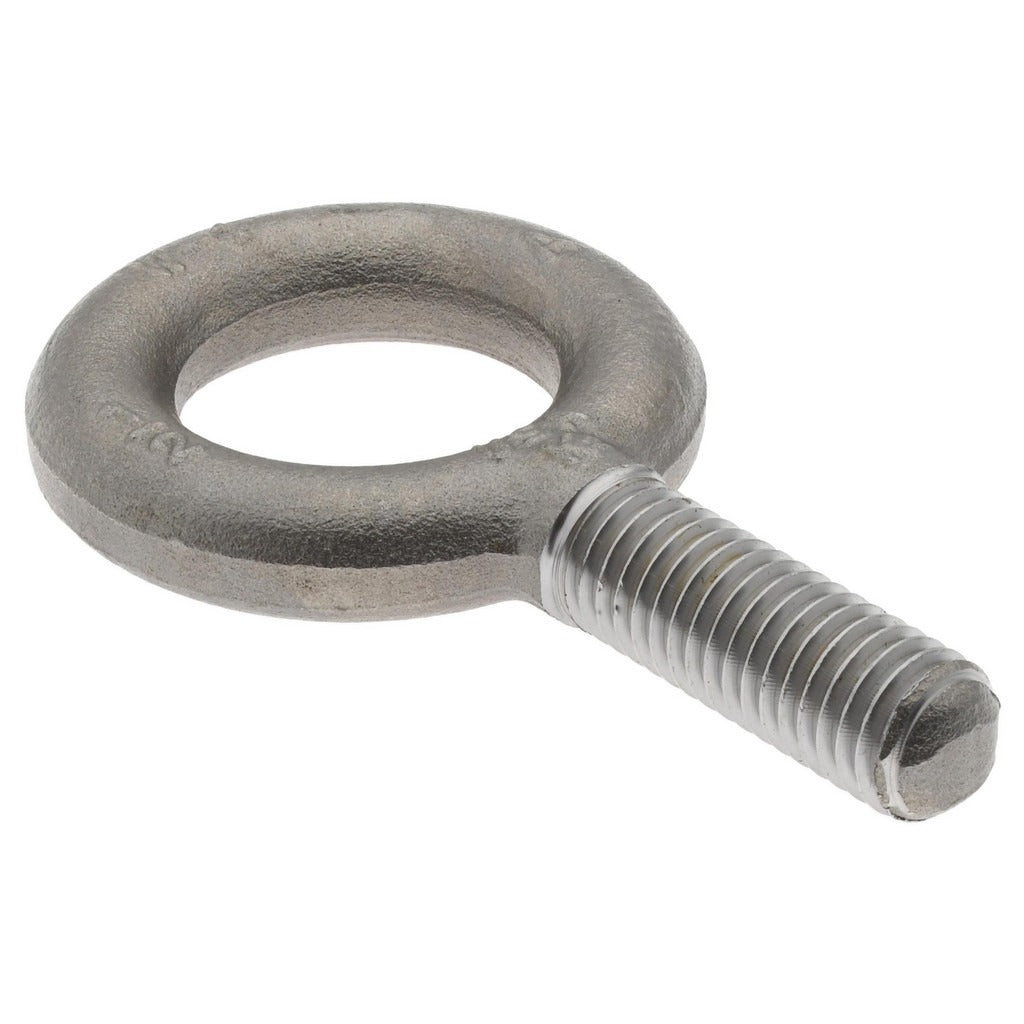

Gibraltar P13641LTGB Fixed Lifting Eye Bolt 2700 Lb 1/2 in

Product Description

The GIBRALTAR P13641LTGB is a fixed lifting eye bolt designed for rigging and overhead lifting applications where a permanent, non-swiveling attachment point is required. Rated at 2,700 lb lifting capacity, this eye bolt features a 1/2 inch thread size and is fully threaded along its 1.5 inch shank length. Constructed from Grade 8620 alloy steel, it delivers the hardness and tensile strength demanded by industrial and construction rigging setups. The fixed-eye design without a shoulder means this bolt is intended for in-line vertical lifts only. Installation is straightforward and is typically performed by riggers, millwrights, or maintenance mechanics working within established load-rating guidelines.

This eye bolt fits applications where a secure, threaded lifting anchor is needed in metalworking, machinery positioning, structural assembly, or fabrication environments. Its fully threaded 1.5 inch shank allows it to seat flush against a mating surface without a shoulder flange, making it suitable for installations where a clean, flush-mount anchor is preferred. The 1-3/16 inch inside diameter eye accommodates standard rigging hardware including hooks and shackles sized for 1/2 inch class hardware.

Key Features

• 2,700 lb lifting capacity for vertical in-line loads
• Grade 8620 alloy steel construction for high tensile strength and wear resistance
• Fully threaded 1.5 inch shank for maximum thread engagement depth
• 1/2 inch thread size compatible with standard fastener tooling
• 1-3/16 inch inside eye diameter accepts common rigging hooks and shackles
• Fixed eye without shoulder — suited for flush-surface vertical lift points

Compatibility

Designed as an OEM-style fixed lifting eye bolt for use in standard 1/2 inch threaded anchor applications requiring a shoulderless, fully threaded alloy steel lifting point.

Installation Notes

Installation should be performed by a qualified rigger or maintenance mechanic familiar with applicable ASME B30 rigging standards. Because this is a fixed eye bolt without a shoulder, it must be used for straight vertical lifts only — angular loading will significantly reduce rated capacity and risks hardware failure. Always thread the bolt fully into the mating material to achieve full thread engagement before applying any load. De-energize or secure any suspended equipment before attaching rigging hardware.
