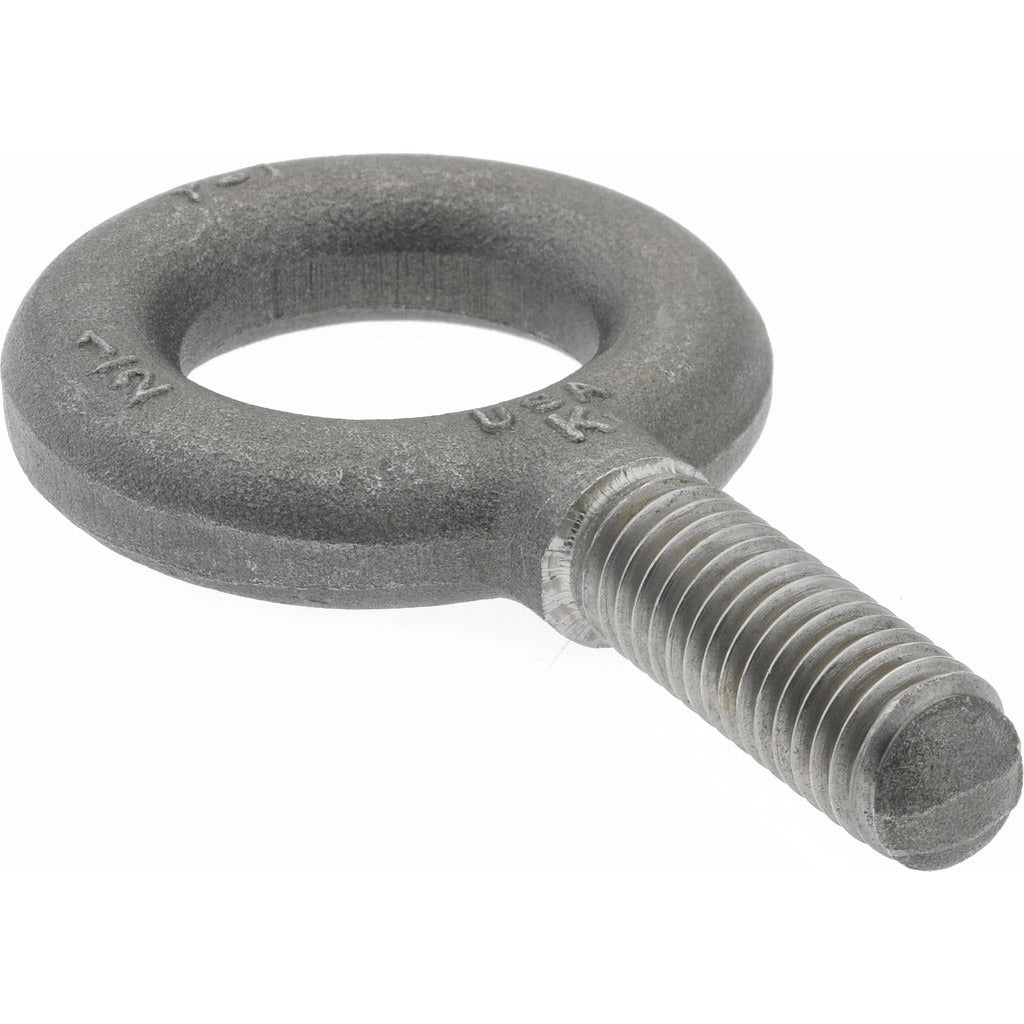

Gibraltar P13641GB Fixed Lifting Eye Bolt 2400 Lb 1/2-13

Product Description

The GIBRALTAR P13641GB is a fixed lifting eye bolt designed for overhead lifting and rigging applications in industrial and construction environments. This bolt features a 1/2-13 thread size with full threading along a 1.5-inch shank length. It carries a rated lifting capacity of 2,400 pounds and is manufactured from Grade 1030 steel for reliable tensile strength in demanding load scenarios. The shoulderless design makes it well suited for straight vertical pulls. Riggers, millwrights, maintenance mechanics, and general contractors use this type of hardware when securing loads to hoists, cranes, and chain falls.

This eye bolt is appropriate for vertical lifting tasks in residential construction, commercial facilities, and industrial maintenance settings. The fully threaded shank allows for secure engagement through a wide range of material thicknesses. The 1-3/16-inch inside eye diameter accommodates standard shackles and hooks used in typical rigging configurations. Because this is a fixed eye bolt without a shoulder, it is intended for in-line axial loading only and should not be used for angular or side-pull loads.

Key Features

• 2,400 lb rated lifting capacity for vertical load applications
• Fully threaded 1.5-inch shank with 1/2-13 thread size for secure fastening
• Grade 1030 steel construction provides consistent tensile strength
• 1-3/16-inch inside eye diameter fits standard shackles and rigging hooks
• 2-1/8-inch outside eye diameter for added material around the load-bearing loop
• Without-shoulder design keeps profile low and simplifies installation through flat stock

Compatibility

Designed as a standard fixed lifting eye bolt for use with 1/2-13 threaded holes in structural steel, wood, and similar substrates where vertical rigging and overhead lifting anchor points are required.

Installation Notes

Installation should be performed by a qualified rigger or mechanic familiar with applicable ASME B30 rigging standards. Ensure the receiving material is of sufficient thickness and strength to handle the full rated load before installing. Thread the bolt fully and verify engagement depth before applying any load. Because this is a fixed eye bolt without a shoulder, apply loads in the axial direction only — angular loading will significantly reduce capacity and risks hardware failure.
