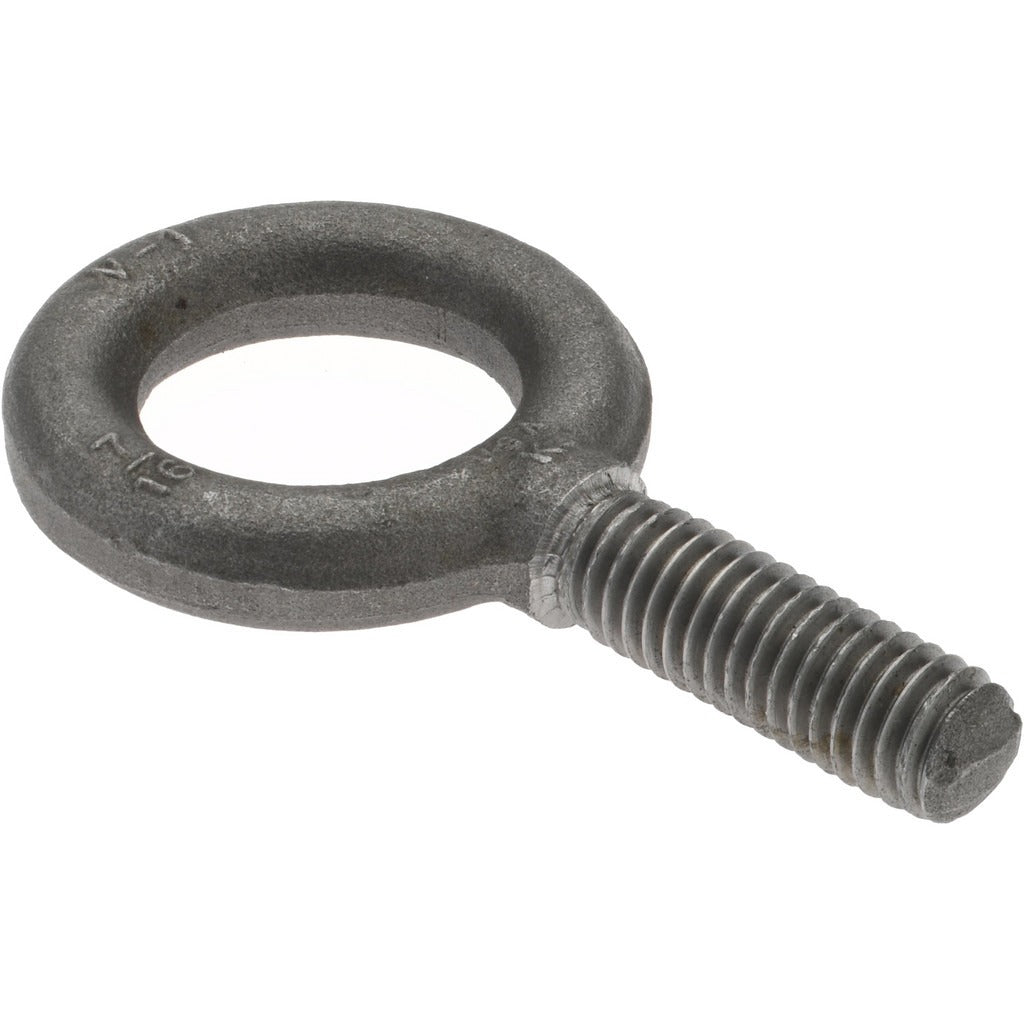

Gibraltar P13638GB Fixed Eye Bolt 1800 Lb 7/16-14 Thread

Product Description

The GIBRALTAR P13638GB is a fixed lifting eye bolt designed for vertical and in-line lifting applications in industrial, construction, and mechanical service environments. This eye bolt features a 7/16-14 thread size with a fully threaded shank measuring 1-3/8 inches in length. It carries a rated lifting capacity of 1,800 pounds and is manufactured from Grade 1030 steel for reliable strength in demanding load-bearing tasks. The without-shoulder design suits straight, in-line pulls where a shouldered base is not required. Installation and rigging work is typically performed by millwrights, ironworkers, maintenance mechanics, or other qualified rigging personnel.

This eye bolt is suited for use in general industrial rigging, equipment hoisting, and overhead lifting setups where a fixed, non-swivel attachment point is needed. The fully threaded shank allows secure engagement through the full thread length. It is appropriate for applications in manufacturing facilities, warehouses, and field service environments where a compact, threaded lifting point must be anchored into tapped holes or used with a nut on through-bolted assemblies.

Key Features

• 1,800 lb rated lifting capacity for in-line vertical loads
• 7/16-14 thread size with fully threaded 1-3/8 inch shank
• Without-shoulder design for straight in-line pull applications
• Grade 1030 steel construction for strength and durability
• Eye inside diameter of 1-3/32 inches accommodates standard rigging hardware
• Eye outside diameter of 1-13/16 inches

Compatibility

Designed as a general-purpose fixed lifting eye bolt for use in tapped holes or through-bolted assemblies accepting a 7/16-14 thread. Verify thread engagement depth and rated load requirements before installation.

Installation Notes

Installation should be performed by qualified rigging or mechanical personnel familiar with applicable ASME B30 rigging standards. Ensure the mating threads are clean and undamaged before installation, and that full thread engagement is achieved for the rated capacity to apply. This eye bolt is rated for in-line vertical loads only — angular loading reduces capacity and requires a shouldered eye bolt design. Inspect the eye bolt and all rigging hardware for damage before each use.
