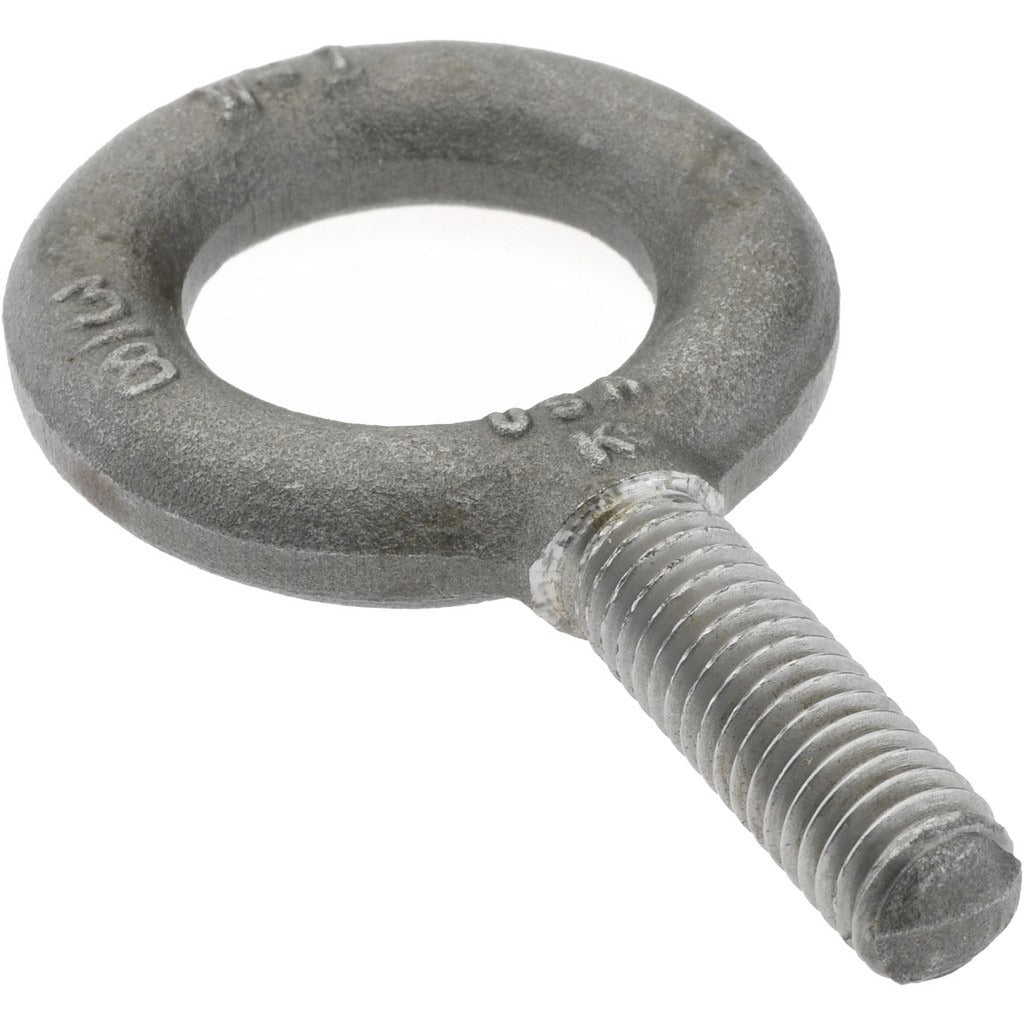

Gibraltar P13631GB Fixed Lifting Eye Bolt 1300 Lb 3/8-16

Product Description

The GIBRALTAR P13631GB is a fixed lifting eye bolt designed for vertical load rigging and material handling applications. Built from Grade 1030 steel with full threading along its 1.25-inch shank, this eye bolt delivers a rated lifting capacity of 1,300 pounds. The shoulderless design is fully threaded at 3/8-16 thread size, providing secure engagement through a mated fixture or structural member. Licensed riggers, millwrights, and maintenance tradespeople install this hardware in overhead lifting, hoisting, and load-securing setups where a reliable anchor point is required.

This eye bolt is suited for industrial, commercial, and light structural applications where a fixed, non-swivel anchor point is acceptable. The 1-inch inside eye diameter accommodates standard hooks, shackles, and wire rope hardware. Its 1-11/16-inch outside eye diameter provides adequate clearance for common rigging attachments. It is packaged as a single unit and is appropriate for installations where vertical or near-vertical load angles are maintained.

Key Features

• 1,300 lb rated lifting capacity for single vertical pulls
• 3/8-16 fully threaded shank, 1.25 inches in length
• 1-inch inside eye diameter fits standard hooks and shackles
• 1-11/16-inch outside eye diameter for rigging clearance
• Grade 1030 steel construction for strength in load-bearing use
• Fixed eye design — no rotation; suited for in-line vertical loading only

Compatibility

Designed as an OEM-style fixed lifting eye bolt for use in standard 3/8-16 threaded holes in structural members, load frames, or fabricated fixtures where a non-swivel anchor point is required.

Installation Notes

Installation should be performed by a qualified rigger or maintenance technician familiar with applicable ASME B30.26 rigging hardware standards. Ensure the threaded hole engagement is sufficient for the rated load before applying any lift. Fixed eye bolts must be loaded in the plane of the eye and as close to vertical as possible — angular loading significantly reduces safe working load and must be accounted for per applicable rigging charts. De-energize or lock out any adjacent equipment before installing or removing the eye bolt in powered machinery or structural assemblies.
