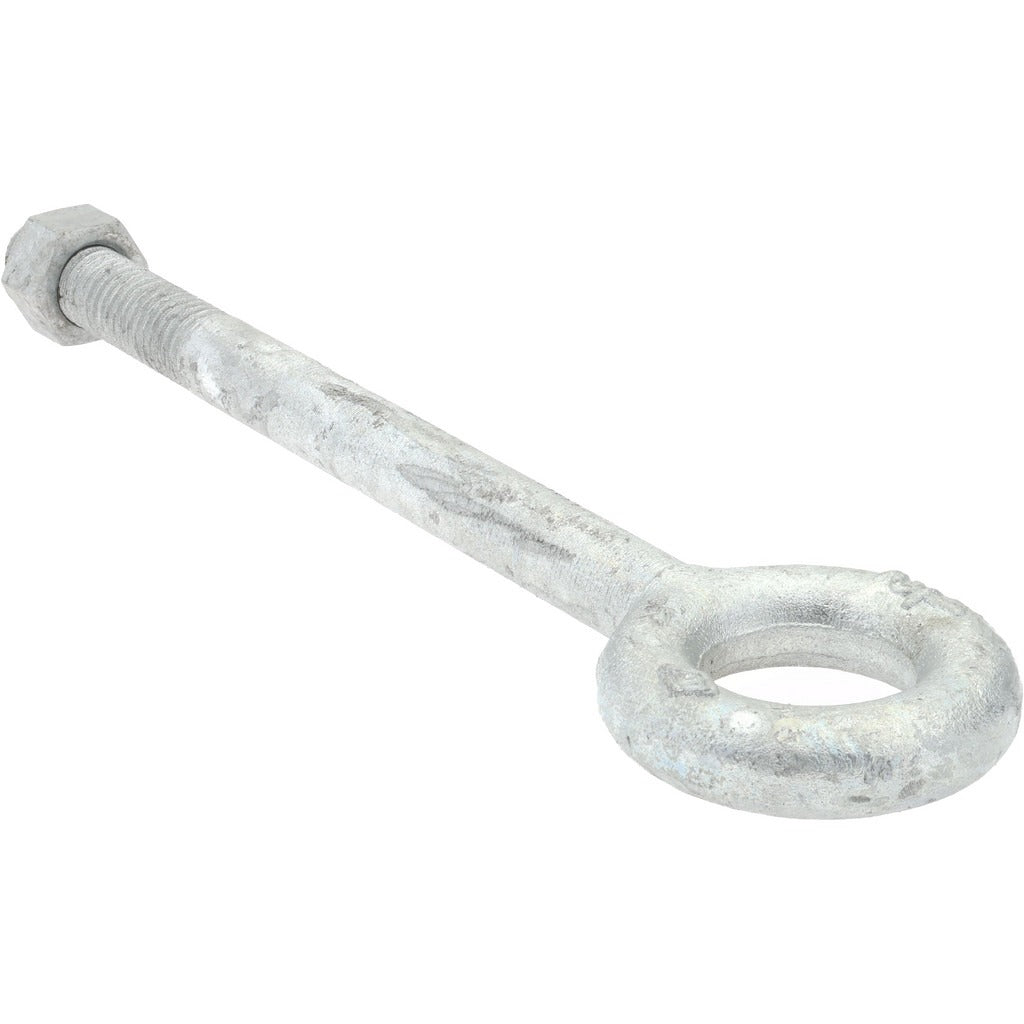

Gibraltar P12343GB Fixed Eye Bolt 2200 Lb 1/2-13 Thread

Product Description

The GIBRALTAR P12343GB is a fixed lifting eye bolt designed for overhead lifting and rigging applications in industrial, commercial, and construction environments. It features a 1/2-13 thread size with a 2-inch partially threaded shank section and a full shank length of 6 inches. The eye bolt carries a working load capacity of 2,200 pounds and is manufactured from Grade 1030 steel with a zinc-plated finish for corrosion resistance. This without-shoulder design is suited for in-line vertical lifting loads. Rigging professionals, millwrights, and maintenance technicians install this hardware as part of hoist, chain, or cable lifting systems.

This eye bolt is used in residential, commercial, and industrial settings where a fixed anchor point is required for vertical lifting. Common applications include machinery installation, structural rigging, and equipment positioning on job sites. The 6-inch shank accommodates thicker structural members, and the 1/2-13 thread pitch matches standard fastener tooling. Its zinc-plated finish provides a baseline level of corrosion protection suitable for indoor and sheltered outdoor use.

Key Features

• 2,200 lb rated lifting capacity for vertical in-line loads
• 1/2-13 thread size, partially threaded over a 2-inch thread length
• 6-inch shank length for use with thicker structural members
• Grade 1030 steel construction for reliable tensile strength
• Zinc-plated finish for corrosion resistance
• Without-shoulder design for straightforward through-hole installation

Compatibility

Designed as a standard fixed lifting eye bolt for use with 1/2-13 threaded holes in rigging and lifting systems requiring in-line vertical load applications.

Installation Notes

Installation should be performed by qualified rigging or maintenance personnel familiar with applicable ASME B30.26 standards for rigging hardware. Always shut down and de-energize any associated lifting equipment before installing or replacing rigging hardware. The without-shoulder design requires the eye bolt to be fully seated and torqued against the mounting surface before applying any load. Never use this fixed eye bolt for angular or side-loaded lifting without consulting the manufacturer load rating tables, as rated capacity applies to vertical in-line loads only.
